China Filter Suppliers Supply GU-H 5 Micron Cartridge Hydraulic Pressure Inline Filter
1.PRODUCT INTRODUCTION
1.1 GU-H series filter is installed in the pressure pipeline of hydraulic system, used to clear away or prevent the pollutants invading generated in the hydraulic oil, prevent valve core stuck, throttling the small holes, cracks and damp holes blocking, and excessive wear of hydraulic components etc. failures happening.
1.2 This series of filter is equipped with the bypass valve and check valve, accordingly have the dual protection, also with differential pressure indicator, when the element is clogged to oil inlet/outlet and pressure difference reaches 3.5bar, the signal is sent out, the filter element should be cleaned or replaced.
2.PRODUCT CHARACTERISTICS
Filter basic construction
GU-H series filter is composed of the top cover and spin-on housing.
2.1 Housing material
Top cover material: Ductile cast iron
Filter bowl material: Carbon steel
2.2 Seals
Perbunan (=NBR) (-30~+ 120°C ); Viton=FPM(-20~+ 200°C )
2.3 Filter element
Filter medium material
High strength carbon steel skeleton
2.4 Optional accessories
Electric clogging indicator: CS-V
By-pass valve(setting 4bar)
2.5 Type of connection (chosen according to the filter type)
Metric thread connection; Flanged connection
3. Symbol
4. Order Example

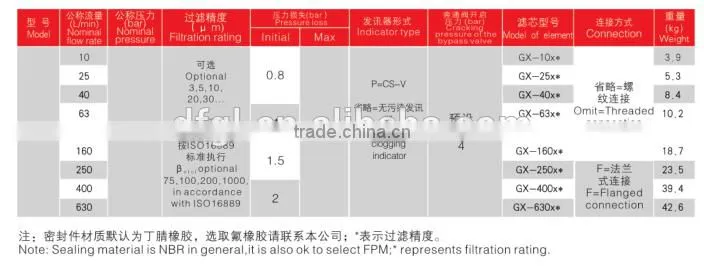

5. Technical Data

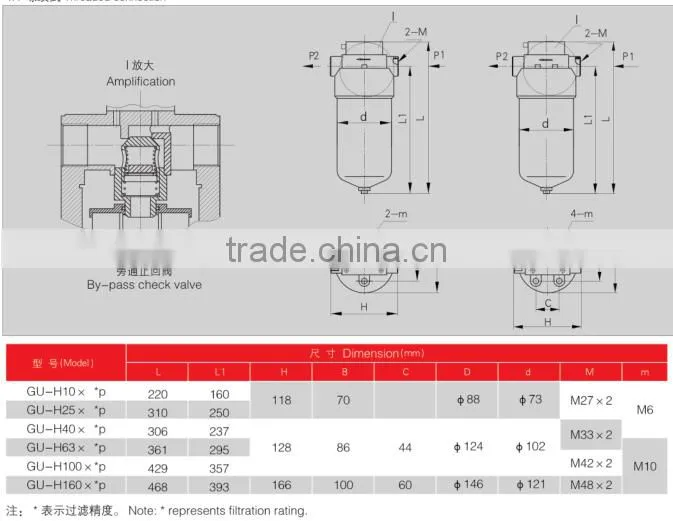

6. Mouting Size
6.1 Threaded Connection

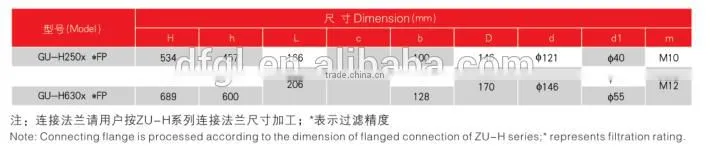

6.2 Flanged Connection
7. About Us
DFFILTRI was founded in 1995, since then we devoted ourselves to research, develop and produce many kinds of hydraulic filters, air filters, hydraulic system accessories, cleaning and filtration equipments, pump valve components. DFFILTRI is our brand, which enjoys high popularity and it has successfully achieved the position both in China and across the world.
DFFILTER filtration technology testing center covers a total area of 450 square meters, of which, clean room area of 200 square meters, and cleanliness is up to 100,000 levels. The centre undertakes filtration technology inspection and testing for in-house science research, production and industry service.
|
Xinxiang Dongfeng Filter Technology Co., Ltd. Add: No.42, West of Beigan Road, Xinxiang, Henan, China (mainland) Telephone: 86-373-2677957 Mobile Phone: +86-18336074703 Fax: 86-373-2634868 |
