Specifications
filter adopts glass fiber filter material, big flow rate capacity, low original pressure loss
Product Introduction
BRF series filters can be installed on flow-frequent-switching components, so as to solve the
problem that the oil only can flow one way direction as well as filtering; so that system piping is
simplified and the space is saved. The series filter adopts glass fiber filter material, with high
filtration rating, big flow rate capacity, low original pressure loss, large contamination retention
capacity etc. advantages; and equipped with pressure difference indicator, when the element
is clogged to oil inlet/outlet and pressure difference reaches setting value of the indicator, the
signal is sent out, the filter element should be cleaned or replaced.
Product characteristics
Filter basic construction
BRF series filter is composed of filter top cover and spin-on housing.
2.1 Housing material
Top cover material: Ductile cast iron
Filter bowl material: Carbon steel
2.2 Seals
Perbunan (= NBR) (-30~+120°C)Viton (= FPM) (-20~+200°C)
2.3 Filter element
Filter medium material(refer to P142)
High strength carbon steel skeleton
2.4 Optional accessories
Electric clogging indicator:CS-V
2.5Type of connection (chosen as per filter models)
Flanged connection
2.6 Symbols
Type Selection And Technical Data
3.1 Order example
3.2 Technical data

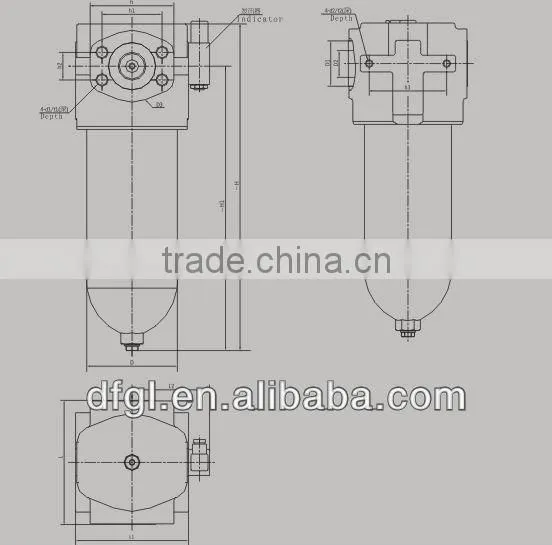

Mounting size
Product characteristic curves

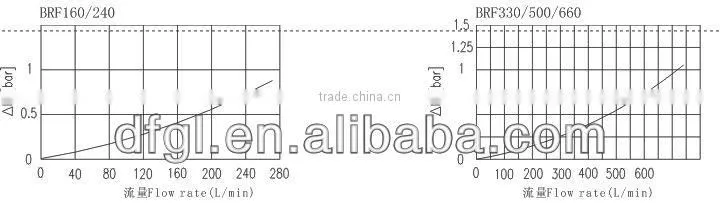

5.1 Housing pressure drop /flow rate characteristic curves
Housing pressure drop /flow rate characteristic curves are according to ISO3968, and suitable for the mineral oil with density 0.86 kg/dm3 and kinematic viscosity 30mm2/s.

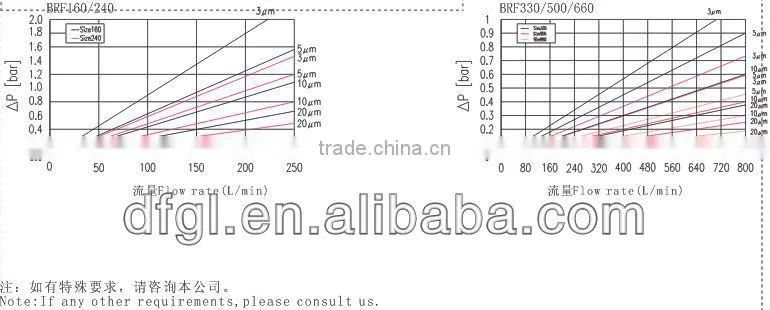

5.2 Differential pressure / flow characteristic curves of filter element
The characteristic curves of filter element are suitable for the mineral oil with kinematic viscosity 30 mm2/s. Differential pressure and viscosity is proportional.
