China Supplier Removeable LYJ-63 Hydraulic Lube Oil Filtering Equipment

                  LYJ-63 Hydraulic Lube Oil Off-line Filter Car

Product description

LYJ-40 Filter Cart is a new generation oil purification equipment developed by our company.

This machine is easy to operate and reliable to use. It is suitable for various hydraulic system,lubrication system,

cooling system,static pressure system media (a variety of hydraulic oil,lubricating oil, cooling liquid)

filtration, purification, can also be used for refueling or low pressure line system cleaning.

Product Characteristics

Type selection and technical data

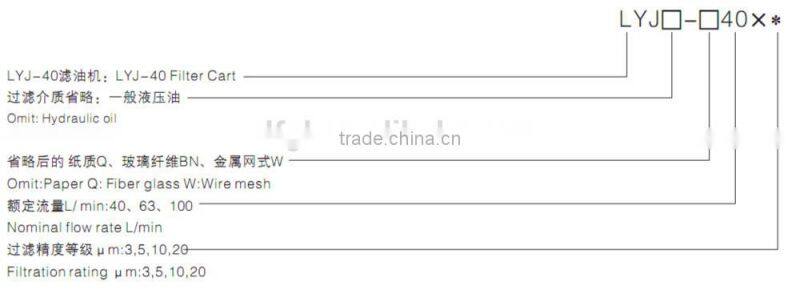

 1. Symbols

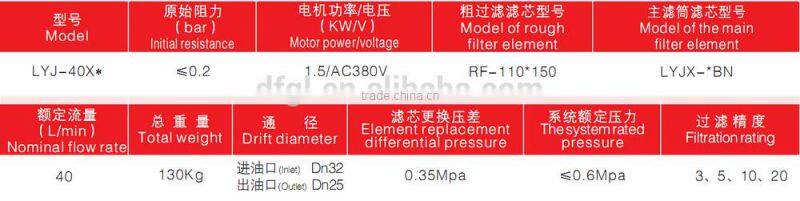

2. Technical Data

Note:  * represents filtration rating.

Filtration rating(μm):  Optional 3,5,10,20... βx(c) Optional 75,100,200,1000, in accordance with standard ISO16889.
Working voltage can choose AC 220V,for details, please contact us.

Usage & Maintenance:

1) Before turning on the power supply, make sure if the power supply volta
2) After start-up, if abnormal vibration and noise found, please process ac
3) Regularly check if the electronic control switch and cable are normal.

About Us

♦The testing centre - hydraulic filter performance evaluation:

ISO 2941 Verification of collapse/burst resistance

ISO 2942 Verification of fabrication integrity and determination of the first bubble point

ISO 2943 Verification of material compatibility with fluids

ISO 3723 Method for end load testing

ISO 3724 Verification of flow fatigue characteristics

ISO 3968 Evaluation of pressure drop versus flow characteristics

ISO 16889 Multi-Pass method for evaluating filtration performance
