Product Details
Place of Origin: | Henan, China | Brand Name: | DFfiLTRI | Model Number: | LYJ-40 |
Product Description

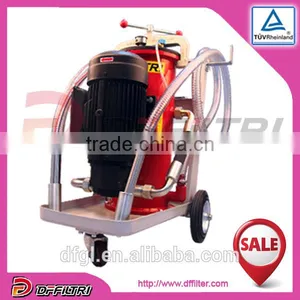

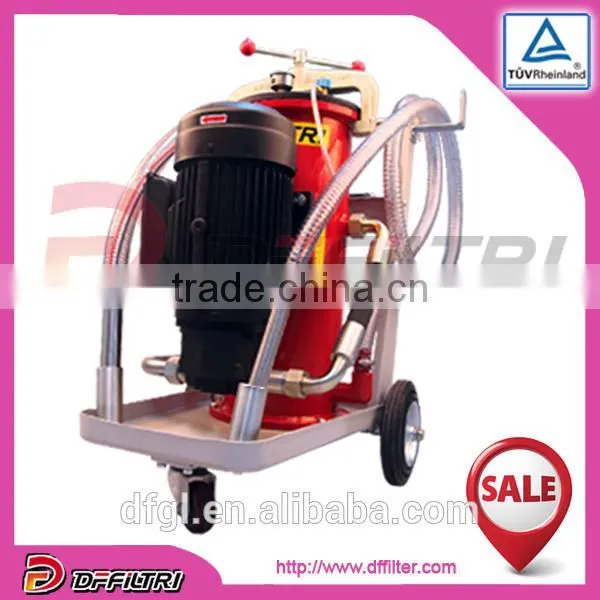

DFFILTRI hydraulic oil filter machine, LYJ-40 hydraulic filter equipment
1,Summarization:
LYJ-40 filter cart is a new generation oil purification equipment developed by us.This machine is easy to operate and reliable to use. It is suitable for hydraulic system of various industries,lubrication system,cooling system,static pressure system media(a variety of hydraulic oil, lubricating oil, cooling liquid)filtration, purification, and can also be used for refueling or low pressure line system cleaning.
3,Technical Data:
Rated flow rating: 40L/min
Drift diameter: Inlet DN32 Outlet DN25
The system rated pressure: ≤0.6Mpa
Element replacement differential pressure: 0.35Mpa
Filtration rating: 3um/5um/10um/20um
Power supply voltage: 380VAC/50Hz/3 Phase
Motor power: 1.5 KW
Working temperature: Normal temperature -50℃
Dimension: 900×700×900 (W×H×L) Unit:mm
Total weight: 125Kg
Processed oil technical index:
Degree of contamination: NAS1638 level 6-8
5,Usage and Maintenance
NOTE:
1)Before turning on the power supply,make sure the power supply voltage is consistent with the requirements.
2)After start-up,if abnormal vibration and noise found,please process according to Troubleshooting list.
3)Regularly check if the electronic control switch and cable are normal.
6,About Us
6.1 History of DFFILTRI
DFFILTRI was founded in 1995, since then we devoted ourselves to research, develop and produce many kinds of hydraulic filters, air filters, hydraulic system accessories, cleaning and filtration equipments,pump valve components. DFFILTRI is our brand, which enjoys high popularity and it has successfully achieved the position both in China and across the world.
6.2 Tests of Performance Evaluation
ISO 2941 Verification of collapse/burst resistance
ISO 2942 Verification of fabrication integrity and determination of the first bubble point
ISO 2943 Verification of material compatibility with fluids
ISO 3723 Method for end load testing
ISO 3724 Verification of flow fatigue characteristics
ISO 3968 Evaluation of pressure drop versus flow characteristics
ISO 16889 Multi-Pass method for evaluating filtration performance
7,Cooperative Partner
company hornors
♦ China's Quality Recognized Top Ten Well-known Filter Brand
♦ 20 years OEM Manufacturing Experience
♦Testing CenterThe Committee of Filtration & Separation of China Technology Market Association
♦ “The First Vice-chairman Unit” awarded by Xinxiang Filtration & Separation
WORKSHOPS show:
we own world advanced production equipment and produce high-quality products of
international standard with brand-new industrial conceptand strong technical forces.
We firmly believe we will become your trusted partner.
Announcement
Dear customers,
Recently some companies are illegally embezzling the photos of our product, office building and workshop,
those who seriously infringe the right and interests to our reputation, honor, self image, ownership,
please keep in mind the sign of the DFFILTRI brand and the image of our company, and be ware of imitations and plagiarism.
We are really sorry to causing any inconvenience to you and your company.
Plagiarist attention,
Please stop the infringing act immediately; otherwise we will investigate the law liability through legal channels.
Xinxiang Dongfeng Filtration Technology CO.,Ltd
Note: If you have other requirement ,please consult us.
