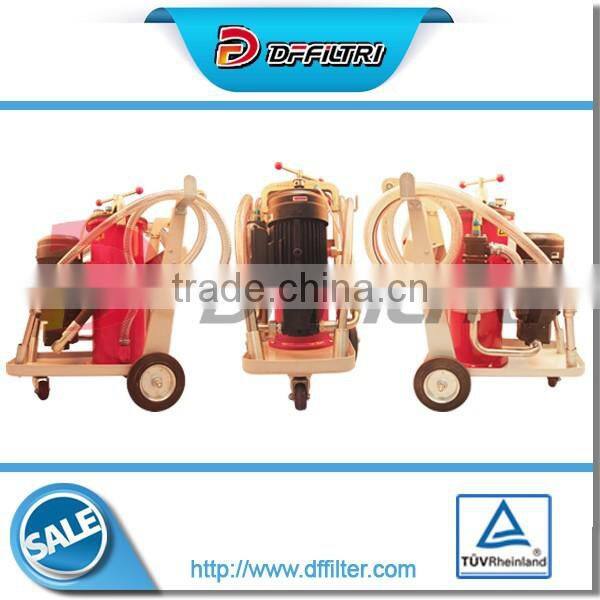

DFFILTRI World Marketing Stable Quality Hydraulic Oil Filter Machine, LYJ-40 Hydraulic Filter Equipment

DFFILTRI world marketing stable quality hydraulic oil filter machine, LYJ-40 hydraulic filter equipment

1,Summarization:
LYJ-40 filter cart is a new generation oil purification equipment developed by us.This machine is easy to operate and reliable to use. It is suitable for hydraulic system of various industries,lubrication system,cooling system,static pressure system media(a variety of hydraulic oil, lubricating oil, cooling liquid)filtration, purification, and can also be used for refueling or low pressure line system cleaning.

3,Technical Data:

Rated flow rating:       40L/min

Drift diameter:           Inlet DN32      Outlet DN25

The system rated pressure: ≤0.6Mpa

Element replacement differential pressure:     0.35Mpa

Filtration rating:          3um/5um/10um/20um

Power supply voltage:    380VAC/50Hz/3 Phase

Motor power:            1.5 KW

Working temperature:     Normal temperature -50℃

Dimension:             900×700×900  (W×H×L)   Unit:mm

Total weight:             125Kg

Processed oil technical index:

Degree of contamination:   NAS1638   level 6-8

5,Usage and Maintenance
NOTE:
1)Before turning on the power supply,make sure the power supply voltage is consistent with the requirements.

2)After start-up,if abnormal vibration and noise found,please process according to Troubleshooting list.

3)Regularly check if the electronic control switch and cable are normal.
