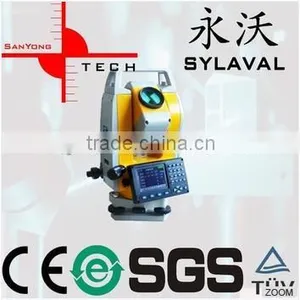

TTS210R/501R Reflectorless Total Station Price Non Prism Total Station

Name: TTS210R/501R Reflectorless Total Station Price Non Prism Total Station
Brand: SYLAVAL
SKU: 140281612

US$ 2,000 - 3,000 MOQ: 1 Piece

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

SYLAVAL

Model Number:

TTS212R

Changzhou Sanyong Building Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name SYLAVAL

Model Number TTS212R

TTS210R/501R Reflectorless Total Station Price Non Prism Total Station

Features:

1.Special design with single horizontal spindle cross telescope.

2.High precision for distance and angle measurement system.

3.Superior telescope system with high definition.

4. Superior telescope system with high definition.

5.Superior water and dust proof specification IP55.

6.Laser centre point, convenient to working

7.Larger color displayer.

Specifications:

Model		TTS-210R/510R
Telescope	Image	Erect
	Magnification	30X
	Objective aperture	48mm(Measuring distance)
	Field of view	1°30′
	Minimum focus	1.2m
	Resolution	3.5″
Angle measurement	Angle measurement mode	Absolute angle encoder system
Level	Minimum reading	1″, 5″optional
	Accuracy	2″/ 5″
	Angular unit	DEG/MIL/GON
	Plate level	30″/2mm
	Circular level	8′/2mm
Distance measurement	With prism	2500m
	No prism	300m
	Reflector(60x60)	0.2m~800m
Distance measuring accuracy	With prism	±(2mm+2ppmD)
Distance measuring accuracy	No prism	——
Measurement time	With prism	Prism accurate measurement<3s
Measurement time	With prism	Prism accurate measurement<3s
Electric Compensation	Range	±3′
Electric Compensation	Accuracy	3″
Down plummet	Laser Plummet	0-5m Best distance range
Down plummet	Optical plummet	Mutiple:3X,focus adjusting range 0.3m
Output interface		Able to upload and download,RS232C interface
Output interface		Able to upload and download,RS232C interface
Operating temperature		-20°C~+50°C
Operating temperature		-20°C~+50°C
Power supply	Power	Chargeable lithium battery
Power supply	Battery voltage	7.2V
