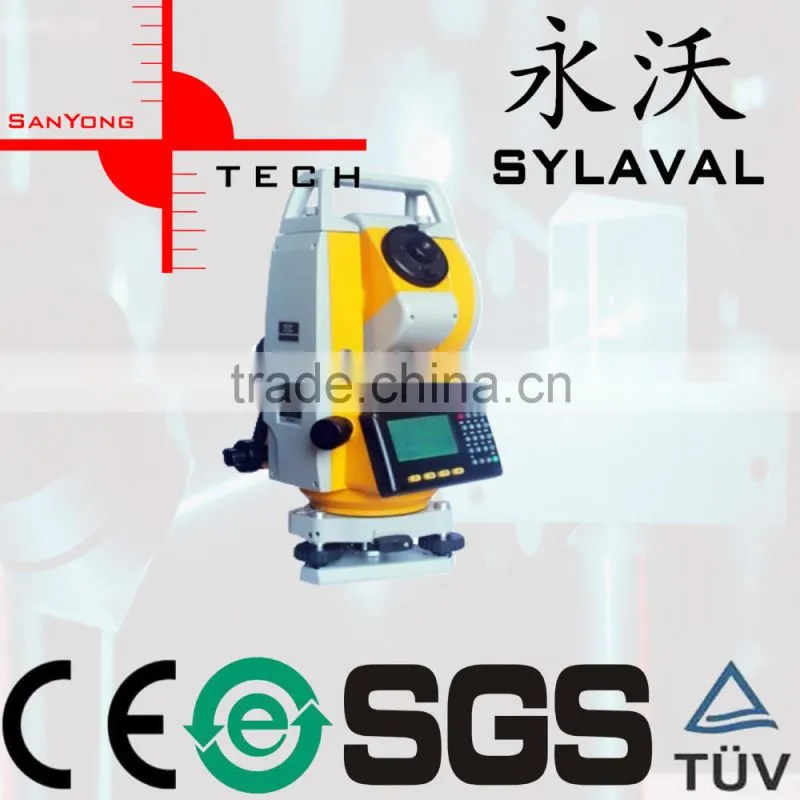

TTS210 Optical Total Station

Name: TTS210 Optical Total Station
Brand: SYLAVAL
SKU: 140281578

US$ 2,000 - 3,000 MOQ: 1 Piece

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

SYLAVAL

Model Number:

TTS210

Changzhou Sanyong Building Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name SYLAVAL

Model Number TTS210

Specifications

TTS210 Optical Total Station

Features:

1.Special design with single horizontal spindle cross telescope.

2.High precision for distance and angle measurement system.

3.Superior telescope system with high definition.

4.Superior water and dust proof specification IP55.

5.Laser centre point, convenient to working

6.Larger color displayer.

Specifications:

Model		TTS-210/510
Telescope	Image	Erect
	Magnification	30X
	Objective aperture	48mm(Measuring distance)
	Field of view	1°30′
	Minimum focus	1.2m
	Resolution	3.5″
Angle measurement	Angle measurement mode	Absolute angle encoder system
	Minimum reading	1″, 5″optional
	Accuracy	2″/ 5″
	Angular unit	DEG/MIL/GON
Level	Plate level	30″/2mm
Level	Circular level	8′/2mm
Distance measurement	With prism	2500m
	No prism	——
	Reflector(60x60)	0.2m~800m
Distance measuring accuracy	With prism	±(2mm+2ppmD)
Distance measuring accuracy	No prism	——
Measurement time	With prism	Prism accurate measurement<3s
Measurement time	With prism	Prism accurate measurement<3s
Electric Compensation	Range	±3′
Electric Compensation	Accuracy	3″
Down plummet	Plummet	0-5m Best distance range
Down plummet	Optical plummet	Multiple:3X,focus adjusting range 0.3m
Output interface		Able to upload and download,RS232C interface
Output interface		Able to upload and download,RS232C interface
Operating temperature		-20°C~+50°C
Operating temperature		-20°C~+50°C
Power supply	Power	Chargeable lithium battery
Power supply	Battery voltage	7.2V
