GEEM...ES-2RS / GEM...ES-2RS Standard Duty Radial
Spherical Plain Bearing
Features of Metric Size Spherical plain bearing
• Extended Inner ring eliminating need for locating spacers.
• Sliding surface: Steel on Steel - MoS2 treated.
• Single fracture design.
• Relubricatable through annular grooves and oil holes in inner & outer rings (ES- Suffix)
| SPECIFICATION | |
| Model | GEEM...ES-2RS/ GEM...ES-2RS |
| Material | Stainless Steel / PTFE |
| Inner diameter | 20-80mm |
| Outer diameter | 35-120mm |
| ball width | 24-74mm |

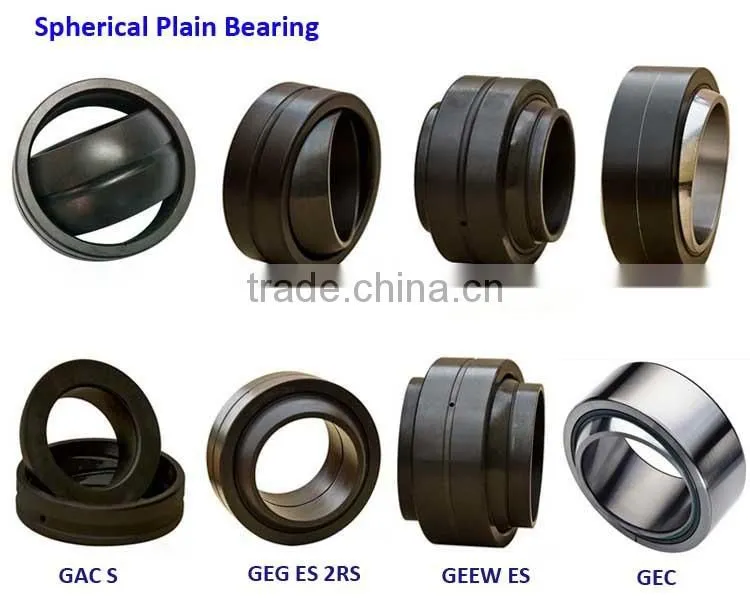

| Model Available | GE, GEES2RS, GAC, GEC, GEG, GEZ, GEEM, GET, ...... |
| Application | Agricultural machinery, Shock absorber, etc |
| Package | Tube, carton box, wooden box, pallet |
| Delivery time | 1 day for sample, 3-5 day for medium order, 10-20 day for big order quantity |
| OEM | Accept |
| Payment terms | TT, L.C, D/A, D/P, Western Union, Paypal |

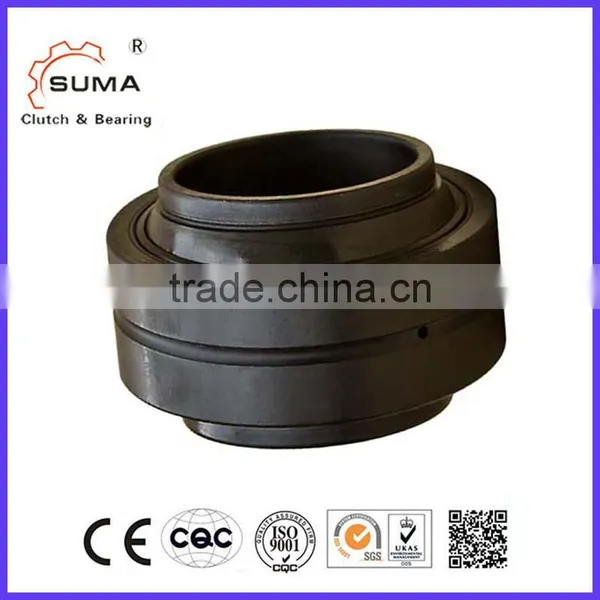

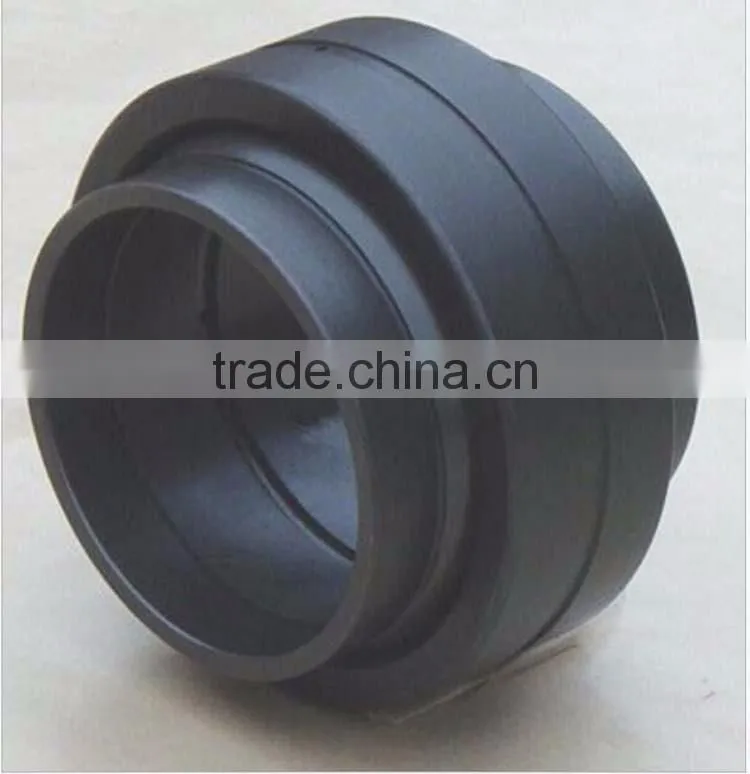

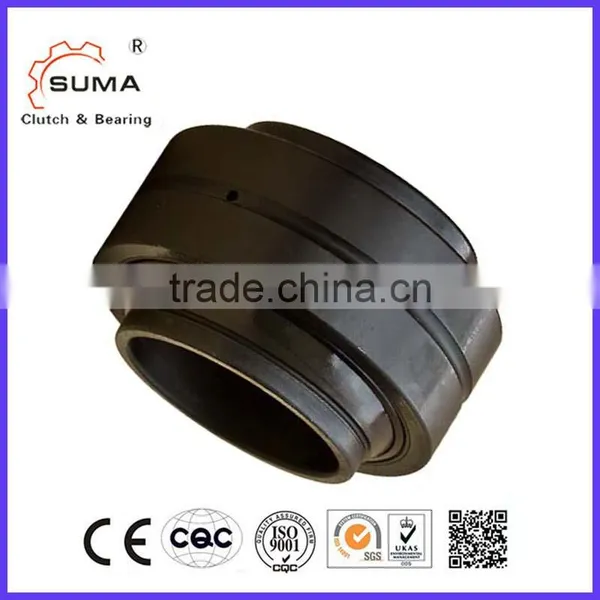

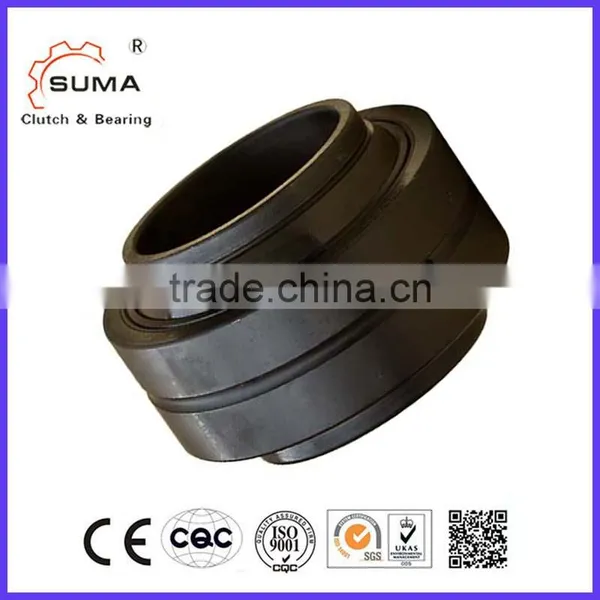

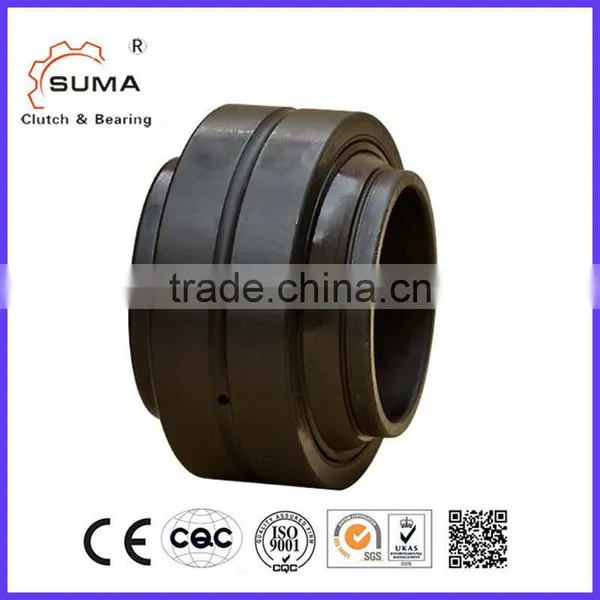

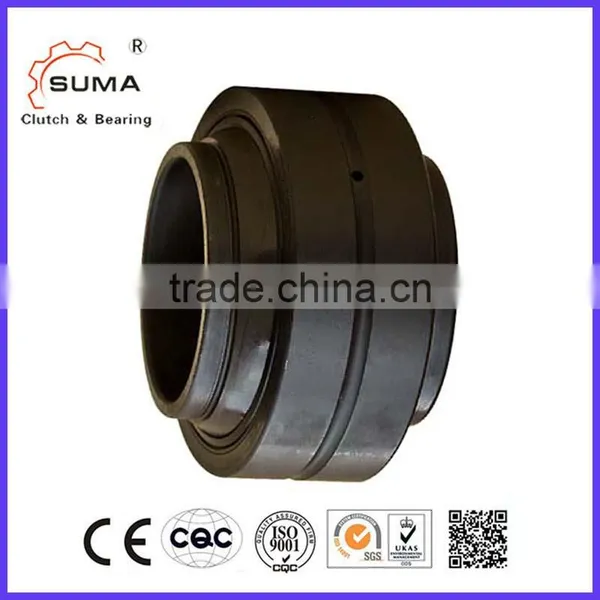

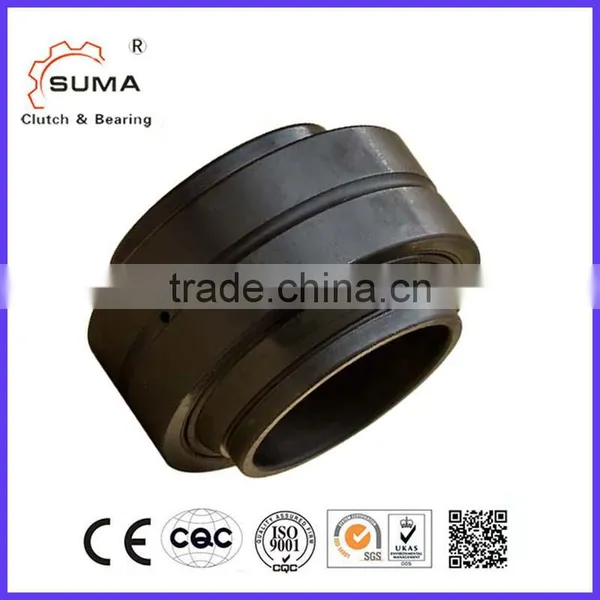

Picture of Metric Size Spherical Plain Bearing

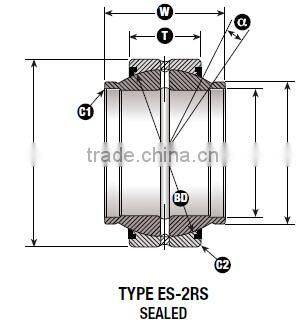

GEM...ES/GEEM...ES Metric Size Spherical Plain Bearing
| Part # | Ref # | Dimensions (mm) | Load Ratings kN | Weight LBS | |||||||||
| d | D | B | C | d1 | dk | rs | r1s | a | Dynamic | Static | |||
| max | min | min | « | ||||||||||
| GEM20ES-2RS | GEEM20ES-2RS | 20 | 35 | 24 | 12 | 24 | 29 | 0.3 | 0.3 | 6 | 30 | 146 | 0.16 |
| GEM25ES-2RS | GEEM25ES-2RS | 25 | 42 | 29 | 16 | 29 | 35.5 | 0.3 | 0.6 | 4 | 48 | 240 | 0.29 |
| GEM30ES-2RS | GEEM30ES-2RS | 30 | 47 | 30 | 18 | 34 | 40.7 | 0.3 | 0.6 | 4 | 62 | 310 | 0.375 |
| GEM35ES-2RS | GEEM35ES-2RS | 35 | 55 | 35 | 20 | 40 | 47 | 0.6 | 1 | 4 | 79 | 399 | 0.55 |
| GEM40ES-2RS | GEEM40ES-2RS | 40 | 62 | 38 | 22 | 45 | 53 | 0.6 | 1 | 4 | 99 | 495 | 0.77 |
| GEM45ES-2RS | GEEM45ES-2RS | 45 | 68 | 40 | 25 | 52 | 60 | 0.6 | 1 | 4 | 127 | 637 | 1.08 |
| GEM50ES-2RS | GEEM50ES-2RS | 50 | 75 | 43 | 28 | 57 | 66 | 0.6 | 1 | 4 | 156 | 780 | 1.32 |
| GEM60ES-2RS | GEEM60ES-2RS | 60 | 90 | 54 | 36 | 68 | 80 | 0.6 | 1 | 3 | 245 | 1220 | 2.53 |
| GEM70ES-2RS | GEEM70ES-2RS | 70 | 105 | 65 | 40 | 78 | 92 | 0.6 | 1 | 4 | 313 | 1560 | 3.65 |
| GEM80ES-2RS | GEEM80ES-2RS | 80 | 120 | 74 | 45 | 90 | 105 | 0.6 | 1 | 4 | 400 | 2000 | 5.5 |
GE.....ES Spherical Plain Bearing
GE..Z Spherical Plain Bearing
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Q: How do you pack spherical plain bearing ?
A: Usually spherical plain bearing are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of spherical plain bearing from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the spherical plain bearing in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
Any needs, pls feel free to contact me at any time !
