GEZ38ES Changzhou Suma Radial Plain Thrust Spherical Bearing
Features of Spherical bearing
| SPECIFICATION | |
| Model |
GEZ38ES |
| Material | Stainless Steel / PTFE |
| Inner diameter |
1.5inch |
| Outer diameter |
2.4375inch |
| ball width |
1.312inch |
| Model Available | GE, GEES2RS, GAC, GEC, GEG, GEZ, GEEM, GET, ...... |
| Application | Agricultural machinery, Shock absorber, etc |
| Package | Tube, carton box, wooden box, pallet |
| Delivery time | 1 day for sample, 3-5 day for medium order, 10-20 day for big order quantity |
| OEM | Accept |
| Payment terms | TT, L.C, D/A, D/P, Western Union, Paypal |

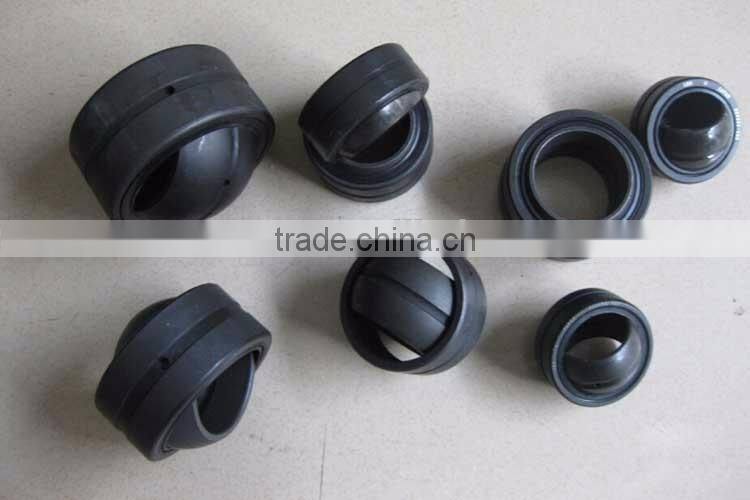

Picture of Inch size Spherical Bearing

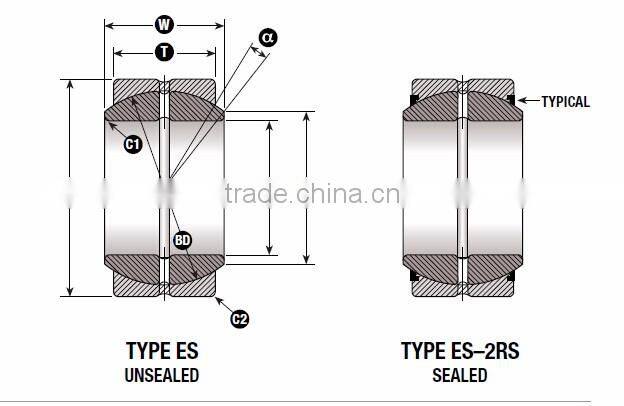

GEZ...ES/GEZ...ES 2RS Inch Size Spherical Bearing
| Part number | Bore diameter | Outer diameter | Ball width | Race width | Static radial loads | Dynamic radial loads | Weight | ||
| Without seals | With seals | Inch | Inch | Inch | Inch | LBS | LBS | LBS | |
| 1 | GEZ12ES | - | 0.5 | 0.875 | 0.437 | 0.375 | 9.337 | 3,156 | 0.044 |
| 2 | GEZ15ES | - | 0.625 | 1.0625 | 0.547 | 0.469 | 14.732 | 4864 | 0.077 |
| 3 | GEZ19ES | GEZ19ES-2RS | 0.75 | 1.25 | 0.656 | 0.562 | 20.927 | 7089 | 0.121 |
| 4 | GEZ22ES | GEZ22ES-2RS | 0.875 | 1.4375 | 0.765 | 0.656 | 28.573 | 9565 | 0.187 |
| 5 | GEZ25ES | GEZ25ES-2RS | 1 | 1.625 | 0.875 | 0.75 | 37.359 | 12605 | 0.265 |
| 6 | GEZ31ES | GEZ31ES-2RS | 1.25 | 2 | 1.093 | 0.937 | 58.507 | 19468 | 0.507 |
| 7 | GEZ34ES | GEZ34ES-2RS | 1.375 | 2.1875 | 1.187 | 1.031 | 69.756 | 23404 | 0.772 |
| 8 | GEZ38ES | GEZ38ES-2RS | 1.5 | 2.4375 | 1.312 | 1.125 | 84.379 | 28129 | 0.926 |
| 9 | GEZ44ES | GEZ44ES-2RS | 1.75 | 2.8125 | 1.531 | 1.312 | 114.752 | 38255 | 1.41 |
| 10 | GEZ50ES | GEZ50ES-2RS | 2 | 3.1875 | 1.75 | 1.5 | 150.754 | 50508 | 2.05 |
| 11 | GEZ57ES | GEZ57ES-2RS | 2.25 | 3.5625 | 1.969 | 1.687 | 191.251 | 63002 | 2.87 |
| 12 | GEZ63ES | GEZ63ES-2RS | 2.5 | 3.9375 | 2.187 | 1.875 | 234.007 | 77629 | 4.08 |
| 13 | GEZ69ES | GEZ69ES-2RS | 2.75 | 4.375 | 2.406 | 2.062 | 285.752 | 95628 | 5.29 |
| 14 | GEZ76ES | GEZ76ES-2RS | 3 | 4.75 | 2.625 | 2.25 | 337.506 | 112505 | 6.84 |
| 15 | GEZ82ES | GEZ82ES-2RS | 3.25 | 5.125 | 2.844 | 2.437 | 396.009 | 131626 | 8.38 |
| 16 | GEZ88ES | GEZ88ES-2RS | 3.5 | 5.5 | 3.062 | 2.625 | 459.001 | 153003 | 10.58 |
| 17 | GEZ95ES | GEZ95ES-2RS | 3.75 | 5.875 | 3.281 | 2.812 | 531.004 | 175507 | 12.79 |
| 18 | GEZ101ES | GEZ101ES-2RS | 4 | 6.25 | 3.5 | 3 | 596.256 | 202508 | 15.44 |
| 19 | GEZ114ES | GEZ114ES-2RS | 4.5 | 7 | 3.937 | 3.375 | 765.002 | 252006 | 21.61 |
| 20 | GEZ120ES | GEZ120ES-2RS | 4.75 | 7.375 | 4.156 | 3.562 | 843.754 | 281254 | 25.36 |
| 21 | GEZ127ES | GEZ127ES-2RS | 5 | 7.75 | 4.375 | 3.75 | 933.755 | 315009 | 29.76 |
| 22 | GEZ152ES | GEZ152ES-2RS | 6 | 8.75 | 4.75 | 4.125 | 1170.002 | 389257 | 38.59 |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Q: How do you pack inch size spherical bearing ?
A: Usually inch size spherical bearing are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of inch size spherical bearing from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the inch size spherical bearing in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
Any needs, pls feel free to contact me at any time !
