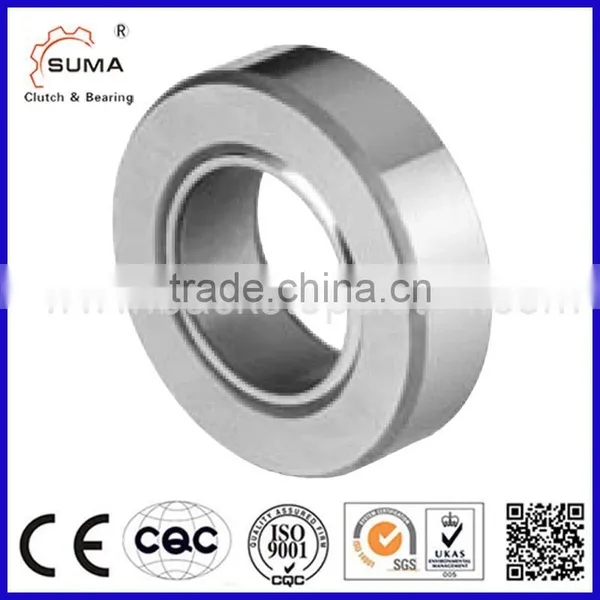

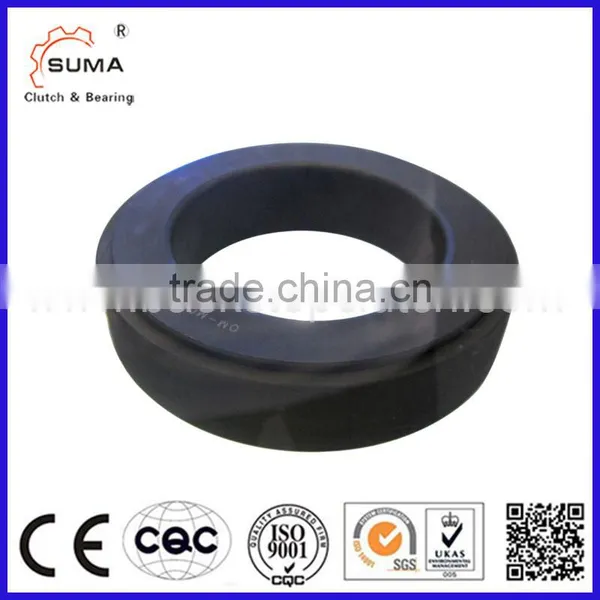

GAC25F GAC25T Maintenance Free Angular Contact
Spherical Plain Bearings

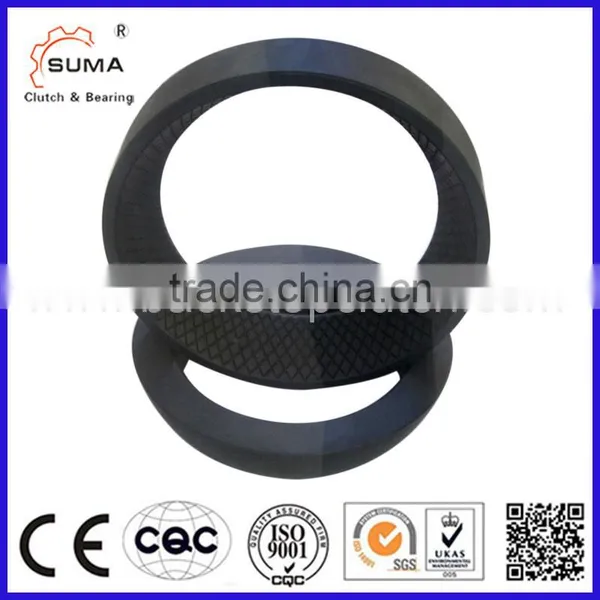

Structure of Spherical Plain Bearing
The inner and outer rings are made of bearing steel that has been through-hardened and ground; The sliding layer of fibre reinforced polymer, containing PTFE, is injection moulded onto the outer ring; The sliding surface of the inner ring is hard chromium plated and coated with a lithium base grease.
Working temperature: ranging from –40 to +75 °C.
Product name |
Angular Contact Spherical Plain Bearing |
Model |
GAC |
Material |
STEEL/PTFE |
Inner diameter |
24mm |
Outer diameter |
47mm |
Thickness |
15mm |
Seals |
No |
Weight |
0.325LBS |
Application |
Agricultural Industry, Mechanical Engineering, Auto Mobiles, etc |
Package |
Wooden box, white tube, etc |
Payment terms |
TT. L/C, D/A,D/P,Western Union |
Delivery time |
2-4 days for the sample, 7 days for big order |
Catalogue of Spherical Plain Bearing
| Part # | Ref # | Dimensions (mm) | Load Ratings kN | Weight LBS | |||||||||
| d | D | B | C | T | dk | S | rs,r1s | a | Dynamic | Static | |||
| min | |||||||||||||
| GAC25F | GAC25T | 25 | 47 | 15 | 14 | 15 | 42 | 0.6 | 1 | 2.5 | 75 | 149 | 0.325 |
| GAC28F | GAC28T | 28 | 52 | 16 | 15 | 16 | 47 | 1 | 1 | 2 | 90 | 179 | 0.41 |
| GAC30F | GAC30T | 30 | 55 | 17 | 15 | 17 | 49.5 | 1.3 | 1 | 4.5 | 95 | 188 | 0.46 |
| GAC32F | GAC32T | 32 | 58 | 17 | 16 | 17 | 52 | 2 | 1 | 2 | 106 | 211 | 0.53 |
| GAC35F | GAC35T | 35 | 62 | 18 | 16 | 18 | 55.5 | 2.1 | 1 | 4 | 117 | 234 | 0.59 |
| GAC40F | GAC40T | 40 | 68 | 19 | 17 | 19 | 62 | 2.8 | 1 | 3.5 | 139 | 277 | 0.72 |
| GAC45F | GAC45T | 45 | 75 | 20 | 18 | 20 | 68.5 | 3.5 | 1 | 3 | 162 | 324 | 0.92 |
| GAC50F | GAC50T | 50 | 80 | 20 | 19 | 20 | 74 | 4.3 | 1 | 1.5 | 185 | 370 | 1 |
| GAC55F | GAC55T | 55 | 90 | 23 | 20 | 23 | 82 | 5 | 1.1 | 4 | 216 | 432 | 1.42 |
| GAC60F | GAC60T | 60 | 95 | 23 | 21 | 23 | 88.5 | 5.7 | 1.1 | 2.5 | 245 | 489 | 1.57 |
| GAC65F | GAC65T | 65 | 100 | 23 | 22 | 23 | 93.5 | 6.5 | 1.1 | 271 | 542 | 1.67 | |
| GAC70F | GAC70T | 70 | 110 | 25 | 23 | 25 | 102 | 7.2 | 1.1 | 2 | 309 | 618 | 2.3 |
| GAC75F | GAC75T | 75 | 115 | 25 | 24 | 25 | 107 | 7.9 | 1.1 | 339 | 676 | 2.47 | |
| GAC80F | GAC80T | 80 | 125 | 29 | 25.5 | 29 | 115 | 8.6 | 1.1 | 3.5 | 387 | 772 | 3.4 |
| GAC85F | GAC85T | 85 | 130 | 29 | 26.5 | 29 | 122 | 9.4 | 1.1 | 2 | 426 | 851 | 3.54 |
| GAC90F | GAC90T | 90 | 140 | 32 | 28 | 32 | 128.5 | 10.1 | 1.5 | 3.5 | 474 | 948 | 4.6 |
| GAC95F | GAC95T | 95 | 145 | 32 | 29.5 | 32 | 135 | 10.8 | 1.5 | 2 | 525 | 1049 | 4.88 |
| GAC100F | GAC100T | 100 | 150 | 32 | 31 | 32 | 141 | 11.6 | 1.5 | 0.5 | 577 | 1151 | 5.15 |
| GAC105F | GAC105T | 105 | 160 | 35 | 32.5 | 35 | 148 | 12.3 | 2 | 2 | 634 | 1267 | 6.45 |
| GAC110F | GAC110T | 110 | 170 | 38 | 34 | 38 | 155 | 13 | 2 | 3 | 695 | 1380 | 8.1 |
| GAC120F | GAC120T | 120 | 180 | 38 | 37 | 38 | 168 | 14.5 | 2 | 0.5 | 820 | 1630 | 8.73 |
| GAC130F | GAC130T | 130 | 200 | 45 | 43 | 45 | 188 | 18 | 2.5 | 1 | 1060 | 2130 | 13.02 |
| GAC140F | GAC140T | 140 | 210 | 45 | 43 | 45 | 198 | 19 | 2.5 | 1 | 1120 | 2240 | 13.92 |
| GAC150F | GAC150T | 150 | 225 | 48 | 46 | 48 | 211 | 20 | 3 | 1 | 1280 | 2550 | 17.6 |
| GAC160F | GAC160T | 160 | 240 | 51 | 49 | 51 | 225 | 20 | 3 | 1 | 1445 | 2900 | 20.72 |
| GAC170F | GAC170T | 170 | 260 | 57 | 55 | 57 | 246 | 21 | 3 | 1 | 1780 | 3560 | 27 |
| GAC180F | GAC180T | 180 | 280 | 64 | 61 | 64 | 260 | 21 | 3 | 1 | 2090 | 4170 | 38.3 |
| GAC190F | GAC190T | 190 | 290 | 64 | 62 | 64 | 275 | 26 | 3 | 0.5 | 2250 | 4490 | 40 |
| GAC200F | GAC200T | 200 | 310 | 70 | 66 | 70 | 290 | 26 | 3 | 1.5 | 2520 | 5040 | 49.5 |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the angular contact bearing ?
A: Usually angular contact bearing are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of angular contact bearing from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the angular contact bearing in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 5-7 days after your order is confirmed.
Any needs, pls feel free to contact me at any time !
