FSO 300-700 Sprag Overrunning Clutch One Way Bearing
| Details | ||
| Model | FSO | |
| Material | GCr15 | |
| Type | Sprag | |
| Inner Diameter | 15-70mm | |
| Outer Diameter | 76.2-180.975mm | |
| Weight | 1.6-19kg | |
| Lubricant | MoS2 powder lubricant | |
| Load Ratings | Dynamic | 245KN |
| Stactic | 1220KN | |
| Application | Industrial Machines | |
Types FSO300 to 700 are sprag type freewheels self-contained, sealed and bearing supported, using two ball bearings.
Units are delivered oil or grease lubricated according to the type. It is a Formsprag USA design with a ?full sprag complement? that gives a very high torque for a given diameter. Any overload is resisted by a sprag to sprag abutment, avoiding a sprag tilt over. Types FSO and HPI are oil lubricated and use standard shaft lip seals. Type FSO-GR is grease lubricated and can be equipped with contact free labyrinth seals. Type HPI is specially designed for high speed indexing applications.
|
Ty pe |
Size | Overrunning Speeds |
Wei ght |
Torque | |||||||||||||||

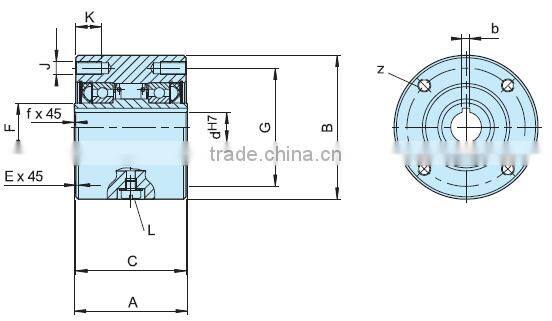

| FSO | Dh7-bxh | D4) | A | B | C | E | F | G | Z | J | K | L | f | FSO | TR | ||||
| TKN1) | nmax2) | min-max | |||||||||||||||||
| [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [ml] | [kg] | [Ncm] | |||||
| FSO | 300 | 379 | 3000/900 | 15-5x5 | 12…19 | 64 | 76 | 60.5 | 1.6 | 29 | 67 | 4 | M8 | 0.8 | M6 | 0.8 | 7 | 1.6 | 18 |
| 400 | 407 | 2800/850 | 18-6x6 | 12…22 | 70 | 89 | 68.1 | 1.6 | 30 | 73 | 4 | M8 | 0.8 | M6 | 0.8 | 10 | 2.7 | 27 | |
| 500 | 1621 | 2500/800 | 30-8x7 | 19…33 | 89 | 108 | 85.7 | 1.6 | 45 | 92 | 4 | M8 | 1.5 | M6 | 1.5 | 22 | 4.8 | 31 | |
| 40-12x8 | |||||||||||||||||||
| 600 | 3105 | 2200/750 | 45-14x9 | 24…57 | 95 | 137 | 92.2 | 1.6 | 64 | ## | 6 | M8 | 1.6 | M6 | 1.6 | 52 | 8.6 | 62 | |
| 5014x6 | |||||||||||||||||||
| 700 | 6900 | 1600/450 | 50-14x9 | ||||||||||||||||
| 60-18x11 | 48…82 | 127 | 181 | 124 | 1.6 | 90 | ## | 8* | M10 | 1.6 | M6 | 1.6 | ## | 19 | 156 | ||||
| 65-18x11 | |||||||||||||||||||
| 70-20x12 | 101,65 |
MOUNTING EXAMPLE
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Q: Why do we choose your company?
A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples of one way clutch bearing to check quality first.
If you have any needs,pls contact me at any time!
