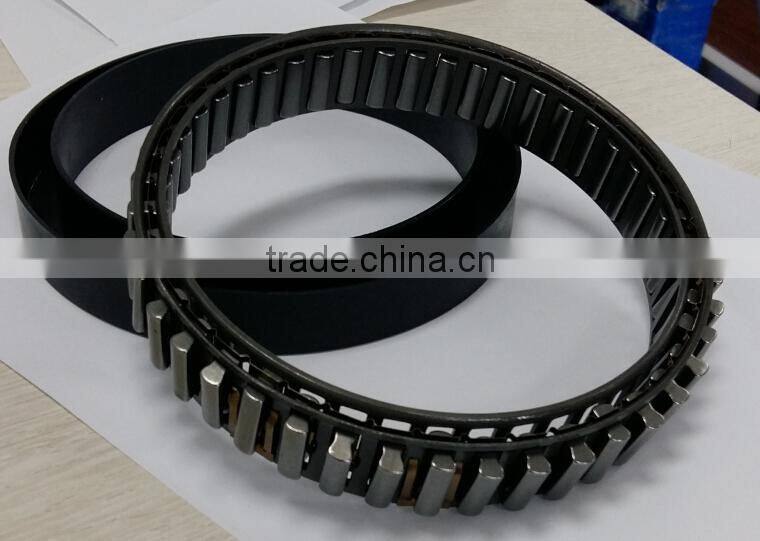

Freewheel Cage X133614C One Way Sprag Clutch Bearing
Description: X Sprag clutch bearing
Material: Chrome Steel GCr15
Structure: Single row sprag type freewheel without inner or outer races
Surface hadrness: HRC60 to 62, for a depth of 0.6mm minimum
Core hardness: HRC35 to 45
Sample: accept
Application: Truck / Hydraulic Forklift
Delivery time: 5-7 days after order confirmed.
Package: wooden box, carton or customized.
Payment terms: TT, L/C, D/A, D/P, Western Union, Paypal

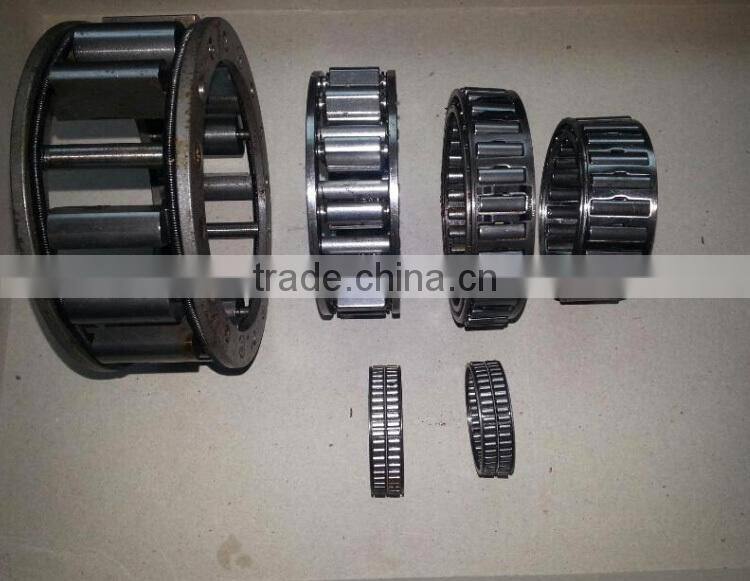

Catalogue of X sprag clutch bearing for your choice
| Type | Inside shaft Diameter | Outside Shaft Diameter | Maximum Width | Rated Drag Torque | |||
| Di | Sprag Space | De | Sprag Space | B | (kgf.m) | ||
| X-1349358 | 27.762 | 0.003 | 44.425 | ±0.013 | 13.5 | 14.2 | |
| X-133399M | 37.317 | — | 53.98 | — | 15.9 | 31.5 | |
| X-133400M | 40.485 | — | 57.15 | — | 22.3 | 54.5 | |
| X-133401M | 59.538 | — | 76.2 | — | 25.4 | 138 | |
| X134908C | 21 | 146 | |||||
| X-134944 | 72.217 | — | 88.882 | — | 21 | 146 | |
| X-134943 | 26.7 | 196 | |||||
| X133614M | 25.4 | 310 | |||||
| X-137032 | 83.596 | ±0.013 | 102.555 | — | 25.4 | 273 | |
| X-133402M | 85.776 | — | 104.775 | — | 25.4 | 315 | |
| X-134951 | 25.4 | 405 | |||||
| X-133639M | 103.231 | — | 122.23 | — | 25.4 | 450 | |
| X-134954 | 121.53 | — | 140.53 | — | 30 | 549 | |
| X-133403M | 123.881 | — | 142.88 | — | 25.4 | 585 | |
| x-135006 | 54.572 | 0.003 | 71.211 | ±0.013 | 20.5 | 799 (81.5) | |
| X-133401 | 59.538 | — | 76.2 | — | 25.4 | 1350 (138) | |
| X-135402C | 68.6 | — | 85.262 | — | 11.7 | -56.5 | |
| X-133614C | 83.596 | ±0.013 | 102.555 | — | 25.4 | 3040 (310) | |
| X-133402 | 85.776 | — | 104.775 | — | 25.4 | 3090 (315) | |
| X-135705 | 137 | — | 156 | — | 21 | -480 | |
| X-133639 | 103.231 | — | 122.23 | — | 25.4 | 4410 (450) | |
| X-133403 | 123.881 | — | 142.88 | — | 25.4 | 5740 (585) | |
| X-133818T | 20.345 | 0.003 | 37.008 | 0.003 | 10 | 5 | |
| X-134939 | 22.225 | — | 38.887 | ±0.013 | 10 | 7.6 | |
| X-13052 | 31.881 | — | 48.548 | — | 13.5 | 15.7 | |
| X-135014 | — | — | 12 | 18.9 | |||
| 37.317 | 53.98 | ||||||
| X-133399 | — | — | 15.9 | 31.5 | |||
| X-135005 | 38.568 | — | 55.207 | — | 20.5 | 43 | |
| X-133400 | 40.485 | — | 57.15 | — | 22.3 | 54.5 | |
| X-135067 | — | — | 17.4 | 35 | |||
| X-135041 | 44.45 | — | 61.112 | — | 13.5 | 23 | |
| X-135349 | 47.325 | — | 63.987 | — | 13.5 | 35 | |
| X-135036 | 47.408 | — | 64.075 | — | 22.3 | 68 | |
| X-133339 | — | — | 13.5 | 37.5 | |||
| 49.72 | 66.383 | ||||||
| X-134398 | — | — | 19.1 | 68 | |||
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the x sprag clutch bearing ?
A: Usually x sprag clutch bearing are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of x sprag clutch bearing from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the x sprag clutch bearing in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
Any needs, pls feel free to contact me at any time !
