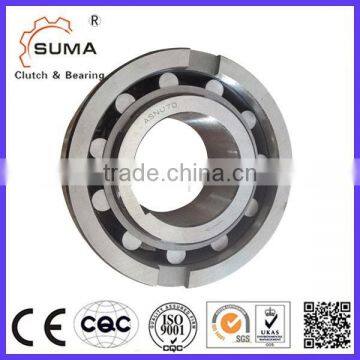

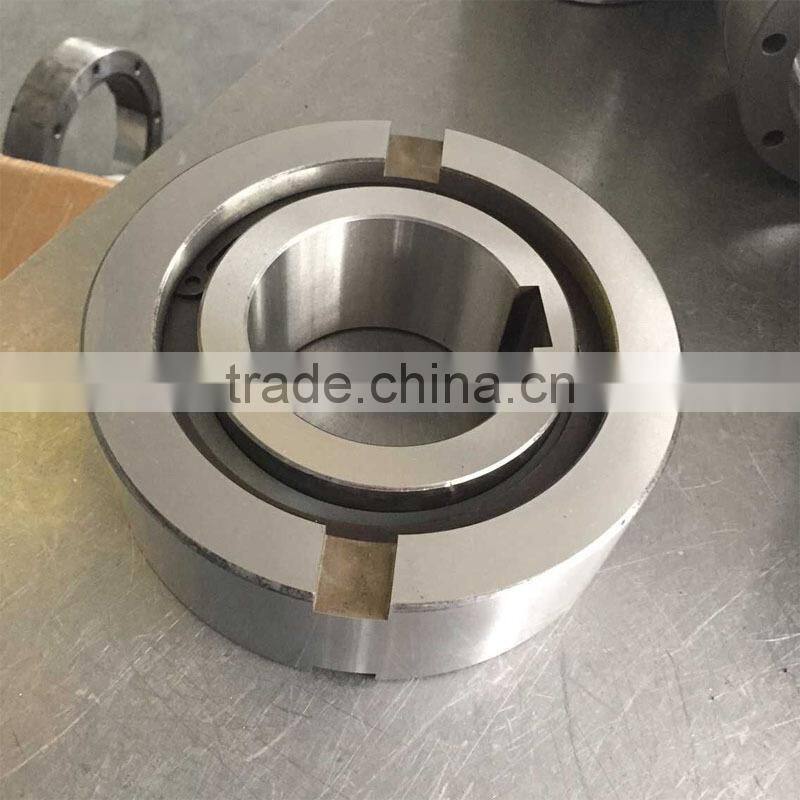

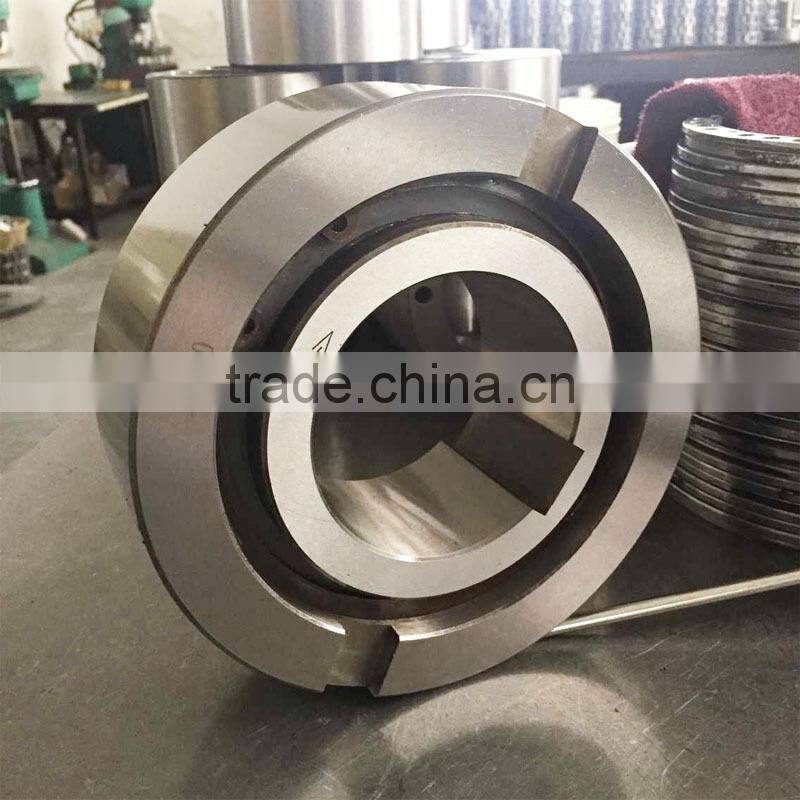

ASNU 40 freewheel clutch overrunning clutch backstop
Features of overrunning clutch backstop : ASNU is a roller type freewheel non-bearing supported.
Material: Chrome Steel
Supply size ranges: With bore dia from 8-200mm, outer dia from 35-420mm
Application: Textile machine, fans, ventilators, printing machine, etc.
Delivery time: 2-4 days for the samples. 10-20 days for the big order quantity.
Package: In wooden box or as your specific requirements.
Catalogue of overrunning clutch backstop for your choice

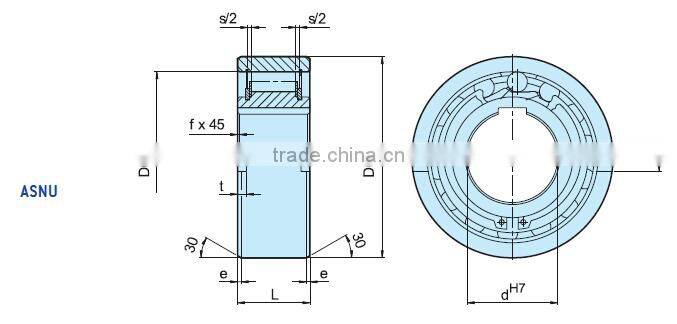

Since ASNU type one way clutch is a roller type without bearing supported, bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. The inner race is keyed to the shaft. The outer race has positive n6 tolerance, to give a press fitin a H7 housing.
Type |
Size |
|
Overrunning Speeds |
|
Weight |
Drag torque |
||||||||
ASNU |
dH7 |
TKN1) |
nimax2) |
namax3) |
Dn6 |
D5 |
L |
b |
t |
s |
e |
f |
|
TR |
[mm] |
[Nm] |
[min-1] |
[min-1] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[mm] |
[kg] |
[Ncm] |
|
8 |
12 |
3300 |
5000 |
35 |
28 |
13 |
4 |
1.4 |
2.4 |
0.6 |
0.3 |
0.07 |
1.6 |
|
12 |
12 |
3300 |
5000 |
35 |
28 |
13 |
4 |
1.4 |
2.4 |
0.6 |
0.3 |
0.06 |
1.6 |
|
15 |
30 |
2400 |
3600 |
42 |
37 |
18 |
5 |
1.8 |
2.4 |
0.8 |
0.3 |
0.11 |
1.9 |
|
17 |
49 |
2300 |
3400 |
47 |
40 |
19 |
5 |
2.3 |
2.4 |
1.2 |
0.8 |
0.15 |
1.9 |
|
20 |
78 |
2100 |
3100 |
52 |
42 |
21 |
6 |
2.3 |
2.4 |
1.2 |
0.8 |
0.19 |
1.9 |
|
25 |
125 |
1700 |
2600 |
62 |
51 |
24 |
8 |
2.8 |
2.4 |
1.2 |
0.8 |
0.38 |
5.6 |
|
30 |
255 |
1400 |
2200 |
72 |
60 |
27 |
10 |
2.5 |
2.4 |
1.8 |
1 |
0.54 |
14 |
|
35 |
383 |
1200 |
1900 |
80 |
70 |
31 |
12 |
3.5 |
2.4 |
1.8 |
1 |
0.74 |
16 |
|
40 |
538 |
1100 |
1700 |
90 |
78 |
33 |
12 |
4.1 |
2.5 |
1.8 |
1 |
0.92 |
38 |
|
45 |
780 |
1000 |
1600 |
100 |
85 |
36 |
14 |
4.6 |
2.5 |
1.8 |
1 |
1.31 |
43 |
|
50 |
1013 |
850 |
1350 |
110 |
92 |
40 |
14 |
5.6 |
2.5 |
1.8 |
1 |
1.74 |
55 |
|
60 |
1825 |
750 |
1050 |
130 |
110 |
46 |
18 |
5.5 |
3.6 |
2.6 |
1.5 |
2.77 |
110 |
|
70 |
2300 |
600 |
950 |
150 |
125 |
51 |
20 |
6.9 |
3.6 |
2.6 |
1.5 |
4.16 |
140 |
|
80 |
3275 |
550 |
850 |
170 |
140 |
58 |
20 |
7.5 |
3.6 |
2.6 |
1.5 |
6.09 |
180 |
|
90 |
5325 |
500 |
750 |
190 |
160 |
64 |
20 |
8 |
3.6 |
2.6 |
2 |
8.2 |
230 |
|
100 |
7250 |
450 |
680 |
215 |
175 |
73 |
24 |
8.5 |
3.6 |
2.6 |
2 |
12.6 |
380 |
|
120 |
13500 |
370 |
550 |
260 |
215 |
86 |
28 |
10 |
3.6 |
2.6 |
2.5 |
22 |
650 |
|
150 |
26625 |
300 |
460 |
320 |
260 |
108 |
32 |
12 |
3.6 |
3.6 |
2.5 |
42 |
1000 |
|
200 |
44500 |
230 |
350 |
420 |
350 |
138 |
45 |
16 |
7.6 |
3.6 |
3 |
93 |
2000 |
|
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
The products are widely used in conveying machine, reducer, hoist, elevator, automobile, home appliances, textile machinery, printing machinery, food machinery and mine machines etc. In addition, special clutch bearings are also provided in accordance upon customers' requirement for various applications.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Our Accept Payment terms are: L/C,D/A,D/P,T/T,Western Union,Money Gram
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the goods?
A: Usually they are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
Any needs, pls feel free to contact me at any time !
