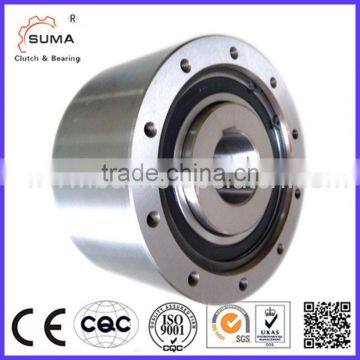

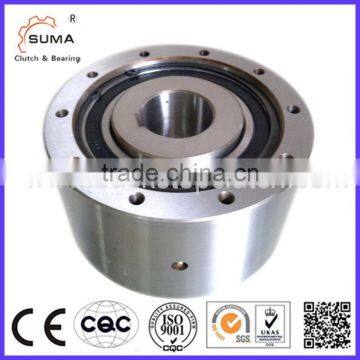

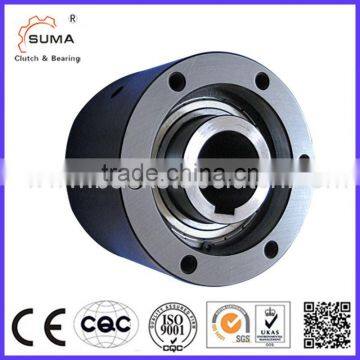

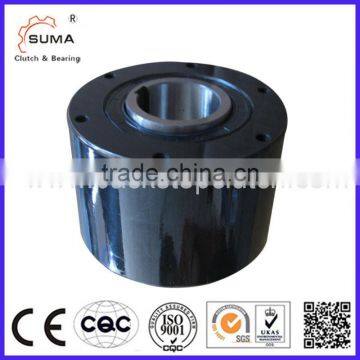

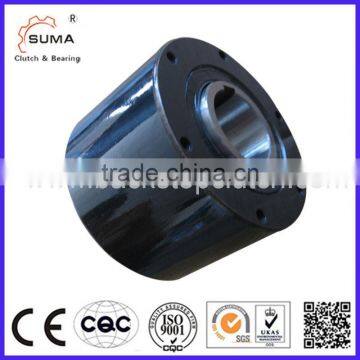

MG400A Overrunning Clutch freewheel clutch and bearing

Name: MG400A Overrunning Clutch freewheel clutch and bearing
Brand: SUMA
Availability: InStock

FOB Price

US$ 80 - 200 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

MG400A Overrunning Clutch freewheel clutch and bearing

Product Description

Features of freewheel clutch and bearing

Type MG is sealed, sprag type freewheel, it is used for inner race overrunning applications.

Product name	clutch and bearing
Model	MG400
Material	GCr15
Inner diameter	22mm
Outer diameter	88mm
Keyway size	5X2mm
Weight	2.7kg
Structure	Sprag type
Application	Amusement rides, Auxiliary drives, Conveyors,Food Processing,Packaging machinery
Package	Wooden box or customizable
Payment terms	TT. L/C, D/A,D/P,Western Union
Delivery time	2-4 days for the sample, 7 days for big order

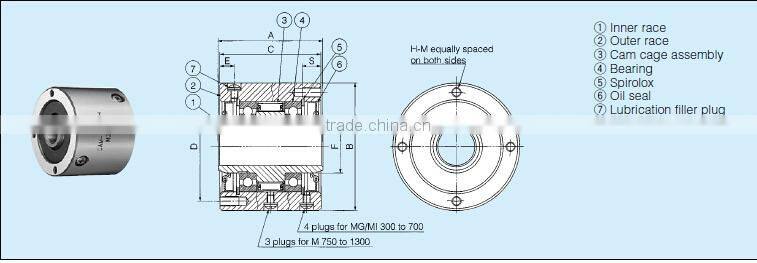

Catalogue of MG clutch AND bearing

Model	Torque Capacity (Nm)	Drag Torque (Nm)	Max. Overrunning (r/min)		Max. Indexing (cycle/min)	Bore Size		A	B	C	PCD	E	F	S	H-M No.of Tapped Holes ×Size×Pitch	Weight (kg)
Model	Torque Capacity (Nm)	Drag Torque (Nm)	Inner Race	Outer Race	Max. Indexing (cycle/min)	Dia. (H7)	Keyway	A	(h7)	C	D	E	F	S	H-M No.of Tapped Holes ×Size×Pitch	Weight (kg)
MG 300 MI 300	314	0.23 0.31	2800 50	900 _	_ 300	19	5x2	63	77	60	66	10.4	28.5	13	4xM6xP1.0	1.8
MG 400 MI 400	539	0.29 0.38	2600 50	800 _	_ 300	22	5x2	70	88	67	73	10.7	31.7	16	4XM8xP1.25	2.7
MG 500 MI 500	1620	0.51 0.68	2400 50	800 _	_ 300	31.5	7x3	89	108	86	92	12.3	44.4	16	4XM8xP1.25	5.0
MG 600 MI 600	3140	0.85 1.54	2100 30	700 _	_ 300	50	12x3.5	95	136	92	120	12.8	69.8	16	6xM8xP1.25	8.6
MG 700 MI 700	5880	1.70 2.63	1500 30	500 _	_ 300	70	18x6	127	180	124	160	19.8	101.5	20	6xM10xP1.5	19.5
MG 750 MI 750	9500	3.43 4.12	1800 30	600 _	_ 300	85	24x6	153	200	150	175	75	110	25	8xM14xP2.0	37.0
MG 800 MI 800	17600	5.39 8.33	1300 20	475 _	_ 300	110	28x7	158	250	155	220	77.5	140	25	8xM16xP2.0	46.5
MG 900 MI 900	24500	6.77 9.41	1200 20	400 _	_ 300	135	35x9	165	300	160	265	80	170	32	10xM16xP2.0	70.5
MG 1000 MI 1000	33800	8.14 12.74	1200 2	325 _	_ 300	160	38x10	188	370	180	325	90	200	32	12xM16xP2.0	108.5
MG 1100 MI 1100	78400	15.00 22.15	350 20	_ _	_ 150	185	45x14	260	470	250	415	125	260	40	12xM20xP2.5	250
MG 1200 MI 1200	95100	17.64 27.54	300 20	_ _	_ 150	200	45x14	260	500	250	440	125	280	45	12xM24xP3.0	280
MG 1300 MI 1300	176000	18.72 28.13	250 20	_ _	_ 150	250	56x17.5	280	600	260	530	130	340	50	12xM30xP3.5	410

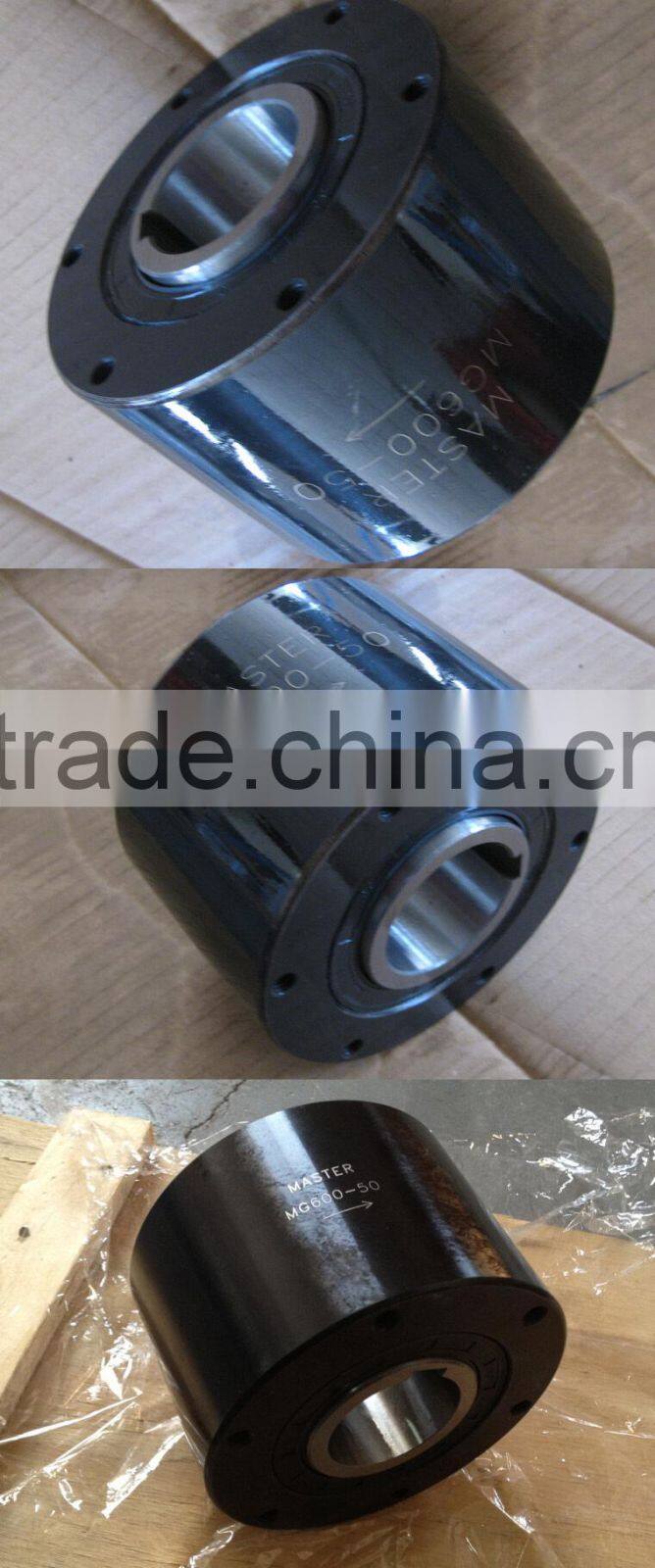

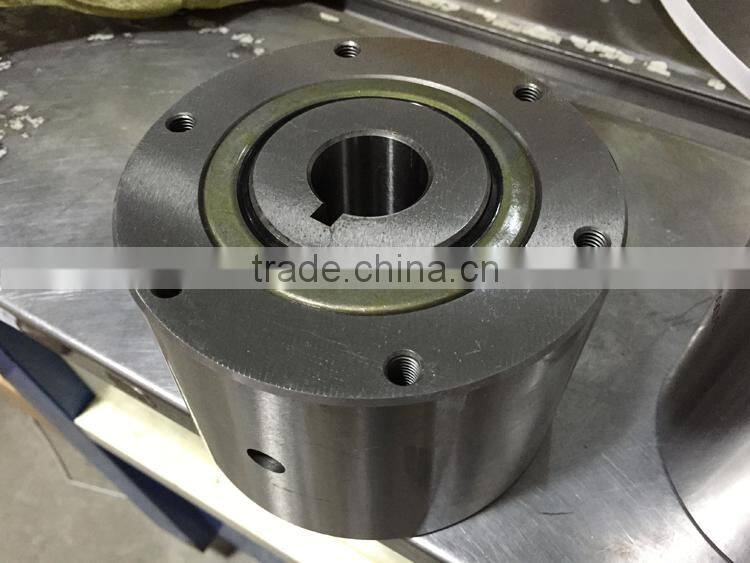

Detailed Images
