NFR20 Freewheel One Way Roller Clutch Bearing NFR 20

NFR20 Freewheel One Way Roller Clutch Bearing NFR 20 thumbnail-1
NFR20 Freewheel One Way Roller Clutch Bearing NFR 20 thumbnail-2
NFR20 Freewheel One Way Roller Clutch Bearing NFR 20 thumbnail-3
NFR20 Freewheel One Way Roller Clutch Bearing NFR 20 thumbnail-4
NFR20 Freewheel One Way Roller Clutch Bearing NFR 20 thumbnail-5
NFR20 Freewheel One Way Roller Clutch Bearing NFR 20 thumbnail-6

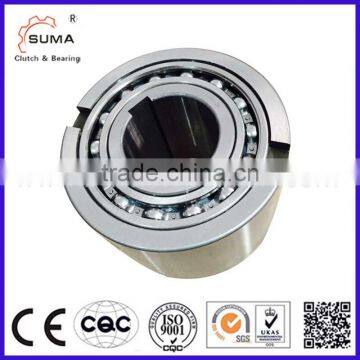

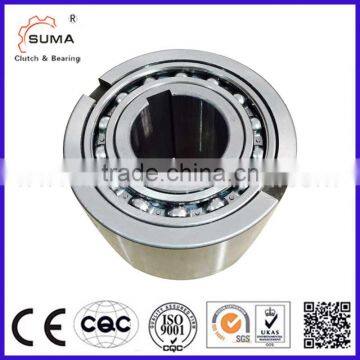

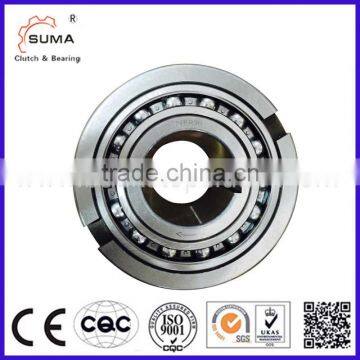

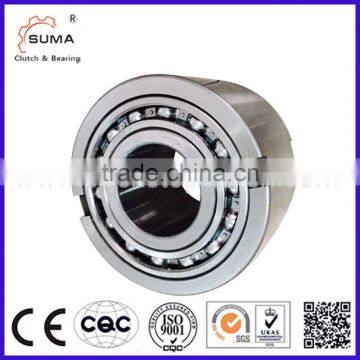

NFR20 Freewheel One Way Roller Clutch Bearing NFR 20 photo-1
NFR20 Freewheel One Way Roller Clutch Bearing NFR 20 photo-2
NFR20 Freewheel One Way Roller Clutch Bearing NFR 20 photo-3
NFR20 Freewheel One Way Roller Clutch Bearing NFR 20 photo-4
NFR20 Freewheel One Way Roller Clutch Bearing NFR 20 photo-5
NFR20 Freewheel One Way Roller Clutch Bearing NFR 20 photo-6
US$ 10 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
SUMA OF one way roller clutch
Bore Size:
8, 130
Outside Diameter:
37, 300
Contact Supplier Request Quote Chat Now
Changzhou Suma Precision Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Ningbo for one way roller clutch
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SUMA OF one way roller clutch
Bore Size 8, 130
Outside Diameter 37, 300
Model Number NFR for one way roller clutch
Precision Rating P6
Seals Type Non Sealed
Place of Origin Jiangsu, China



NFR20 Freewheel One Way Roller Clutch Bearing NFR 20



Product Description



Features of nfr one way roller clutch



Product name

one way roller freewheels

Model

NFR20

Material

GCr15

Torque capacity

188Nm

Inner diameter

20mm

Outer diameter

62mm

Thickness

36mm

Weight

0.6kg

Structure

Roller type

Application

EXW reducer,

Package

Wooden box, or customizable

Payment terms

TT. L/C, D/A,D/P, Western Union, Paypal

Delivery time

7-10 days after order confirmed

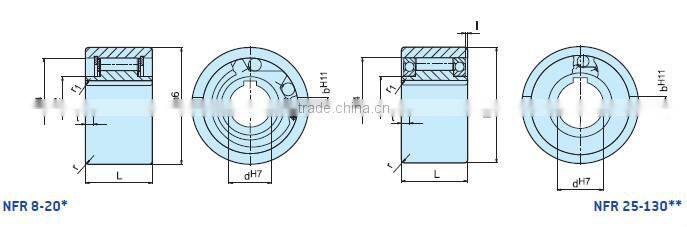

Catalogue of nfr one way roller clutch for your choice

Size 8 to 20 units use steel on steel bearing support ROM the inner race. Above size 20, two 160...Series ball bearings are used, giving a higher overrunning speed capacity.

NFR20 Freewheel One Way Roller Clutch Bearing NFR 20



Type Size   Overrunning speeds Bearing   Weight
  dH7 TKN1 Nimax2) Namax3)   Dn6 D2 D4 L I t bH11 r r1
  (mm) (Nm ) (min-1) (min-1) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (mm) (kg)
  8 20 1000 1000 * 37 20 30 20   3 6 1 1.5 0.1
  12 20 1000 1000 * 37 20 30 20   3 6 1 1.5 0.1
  15 78 850 850 * 47 26 37 30   3.5 7 1.5 1.5 0.3
  20 188 650 650 * 62 37 52 36   3.5 8 2 2 0.6
NFR 25 250 2100 3600 16008** 80 40 68 40 0.2 4 9 2.5 2 1.2
(ANR-ANG) 30 500 1700 3200 16009** 90 45 75 48 0.2 5 12 2..5 2 1.8
  35 663 1550 3000 16010** 100 50 80 53 1.2 6 13 2.5 2.5 2.4
  40 1100 1150 2600 16011** 110 55 90 63 2.2 7 15 3 2.5 3.3
  45 1500 1000 2400 16012** 120 60 95 63 2.2 7 16 3 2.5 4
  50 2375 800 2150 16014** 130 70 110 80 2.7 8.5 17 3.5 3 5.7
  55 2550 750 2000 16015** 140 75 115 80 4.2 9 18 3.5 3 6.5
  60 4250 650 1900 16016** 150 80 125 95 3.2 9 18 3.5 3.5 8.9
  70 5875 550 1750 16018** 170 90 140 110 1.1 9 20 3.5 3.5 13.5
  80 10000 500 1600 16021** 190 105 160 125 0 9 20 4 3.5 19
  90 17250 450 1450 16024** 215 120 180 140 0.6 11.5 24 4 4 27.2
  100 79625 350 1250 16028** 260 140 210 150 2.6 14.5 28 4 4 44.5
  130 34750 250 1000 16032** 300 160 240 180 2 17.5 32 5 5 68

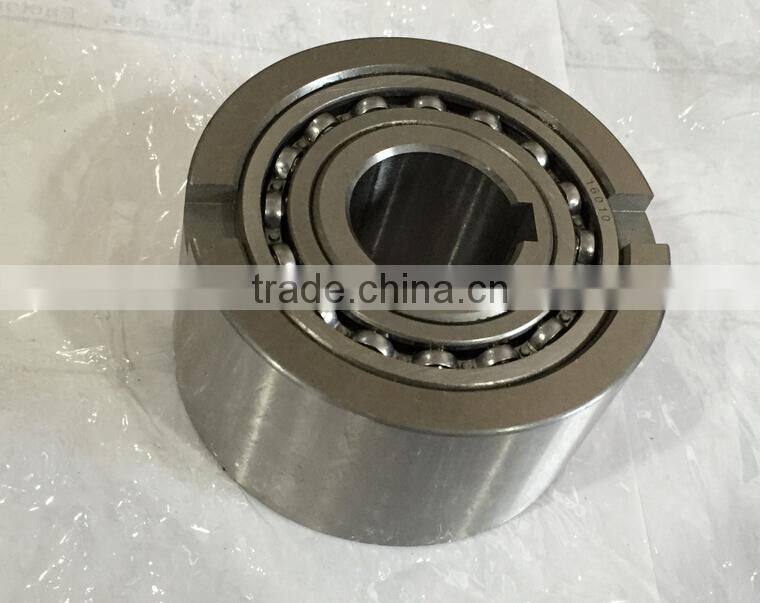

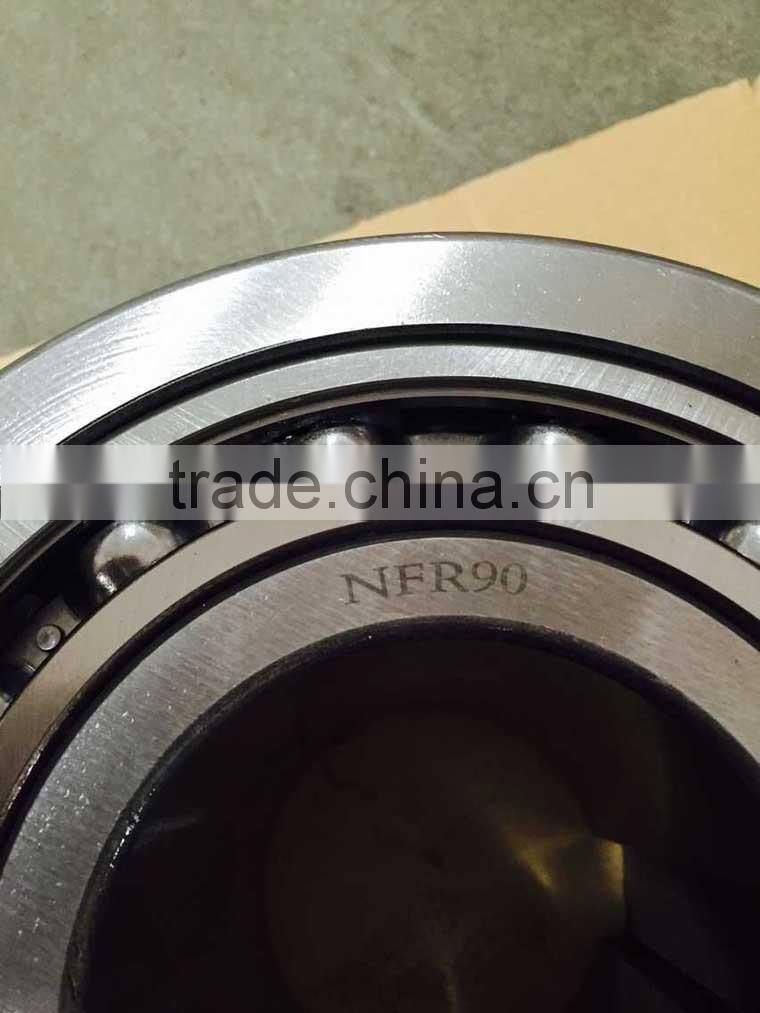

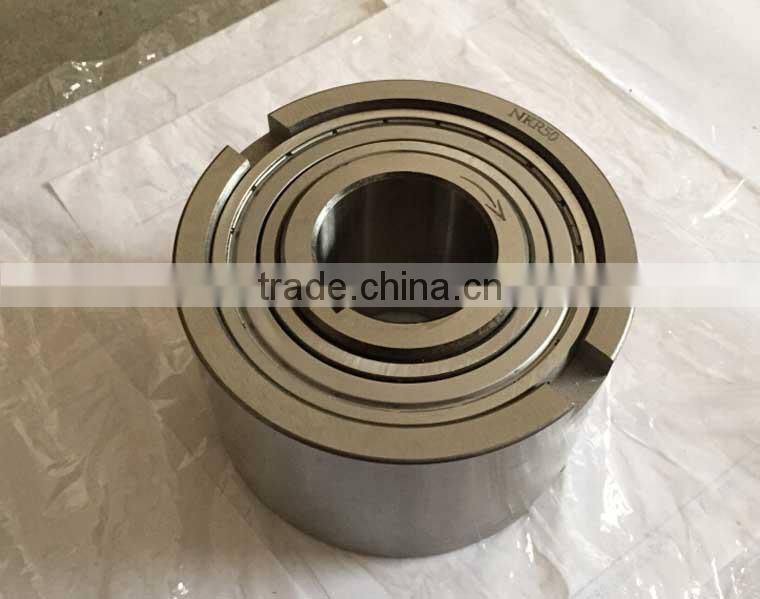

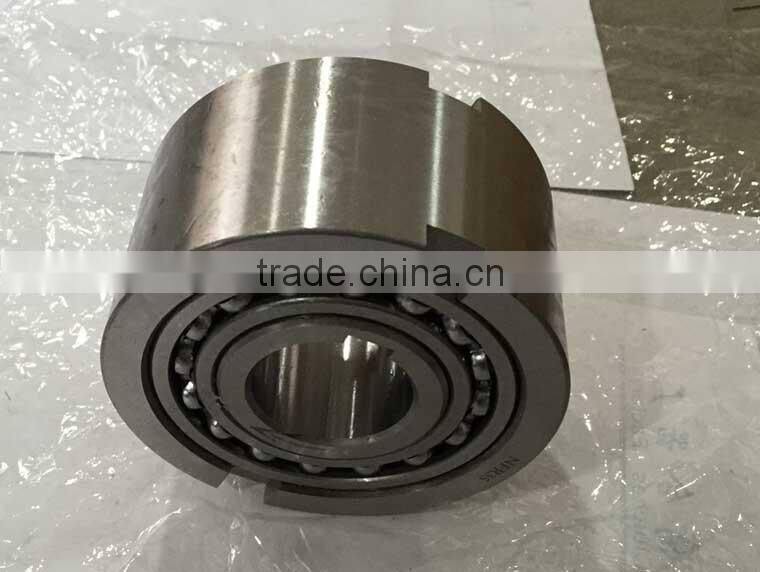

Detailed Images



NFR20 Freewheel One Way Roller Clutch Bearing NFR 20NFR20 Freewheel One Way Roller Clutch Bearing NFR 20

NFR20 Freewheel One Way Roller Clutch Bearing NFR 20

NFR20 Freewheel One Way Roller Clutch Bearing NFR 20

NFR20 Freewheel One Way Roller Clutch Bearing NFR 20



Company Information



Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

NFR20 Freewheel One Way Roller Clutch Bearing NFR 20

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

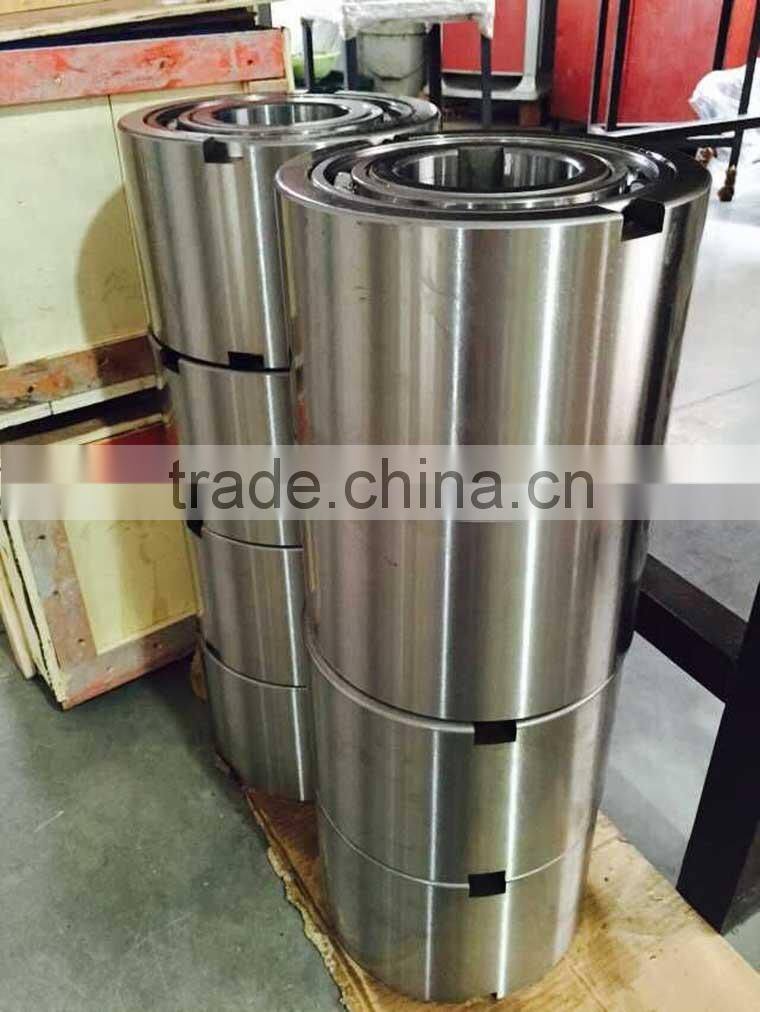

Factory Production

NFR20 Freewheel One Way Roller Clutch Bearing NFR 20

NFR20 Freewheel One Way Roller Clutch Bearing NFR 20

Payment Terms



Our Accept Payment terms are:  L/C,D/A,D/P,T/T,Western Union,Money Gram



After-Sales Service



Pre-sale service:

We will delivery the goods in 10 days after your order is confirmed.

After sale service:

Our factory provide technical assistance to support every doubt during usage and maintenance.

FAQ

Q: How do you pack the one way roller clutch nfr?

A: Usually one way roller clutch nfr are packed in the wooden box. It can be done as your specfic demands.

Q: Can i get the samples of one way roller clutch nfr from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the one way roller clutch nfr in time?

A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
