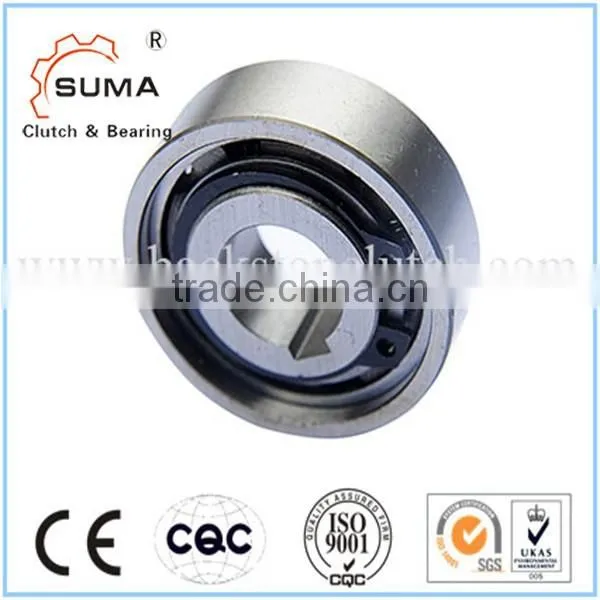

Roller Type Freewheel Bearing AS60

Roller Type Freewheel Bearing AS60 thumbnail-1
Roller Type Freewheel Bearing AS60 photo-1
US$ 20 - 100 MOQ: 1 Quart
Key Specifications
Get Latest Price
Brand Name:
SUMA
Bore Size:
60,
Outside Diameter:
110,
Contact Supplier Request Quote Chat Now
Changzhou Suma Precision Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai ; Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SUMA
Bore Size 60,
Outside Diameter 110,
Model Number AS60
Precision Rating P6
Seals Type sealed
Number of Row Single Row





Product Description

MODEL :  Roller Type Freewheel Bearing AS60



INTRODUCTION

Type AS is a roller type freewheel non-bearing supported. Bearings are required to support axial and  radial  loads. Lubrication and sealing must also be provided by the installation. Nominal outside dimensions are the same as series 62...Ball bearings.
A typical arrangement is to install this type alongside a series 62 bearing within the same location tolerances, as shown on the following page. The inner race is keyed to the shaft (except 6 mm bore).
The outer race has a positive r6 tolerance to give a press fit in a H7 housing. The outer housing must be

strong enough
To not expand after assembly. This design can accept an axial misalignment of inner and outer race of ± S/2.





Type

Size



Overrunning speeds



Weight

Drag torque

AS (NSS)

dH7

TKN1)

nimax2)

namax3)

Dr6

D5

L

s

e

f



TR

[mm]

[Nm]

[min-1]

[min-1]

[mm]

[mm]

[mm]

[mm]

[mm]

[mm]

[kg]

[Ncm]

6

2.1

5000

7500

19

15.8

6

0.3

0.6

0.3

0.01

0.18

8

3.8

4300

6500

24

20

8

1.3

0.6

0.6

0.02

0.24

10

6.8

3500

5200

30

25.9

9

1.3

0.6

0.6

0.03

0.36

12

13

3200

4800

32

28

10

1.3

0.6

0.6

0.04

0.48

15

14

2800

4300

35

31

11

1.4

0.6

0.6

0.05

0.7

20

40

2200

3300

487

40

14

2.4

0.8

0.8

0.12

1.4

25

56

1900

2900

52

45.9

15

2.4

0.8

0.8

0.14

2.4

30

90

1600

2400

62

55

16

2.4

0.8

1

0.22

7.8

35

143

1300

2000

72

64

17

2.5

0.8

1

0.31

9

40

185

1200

1800

80

72

18

2.5

0.8

1

0.39

10

45

218

1000

1600

85

77

19

2.5

1.2

1

0.44

11

50

230

950

1500

90

82

20

2.5

1.2

1

0.49

13

55

308

800

1300

100

90

21

2.5

1.2

1

0.66

14

60

508

700

1100

110

100

22

2.5

1.2

1.5

0.81

26

80

1063

600

900

140

128

26

2.5

1.2

1.5

1.41

58





MOUNTING EXAMPLE
