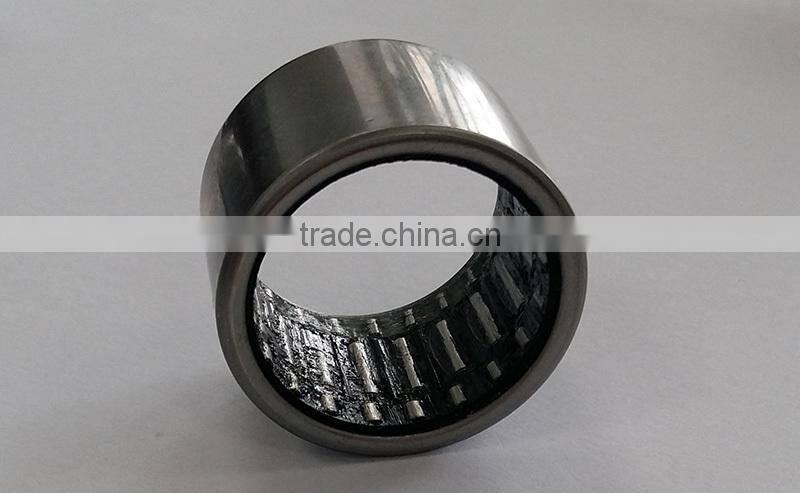

HFL2016 Changzhou SUMA Needle Bearing One-Way Clutch for Backstop Application

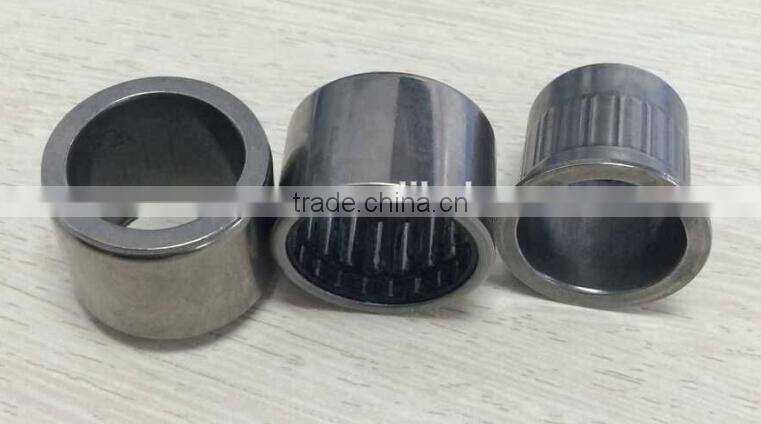

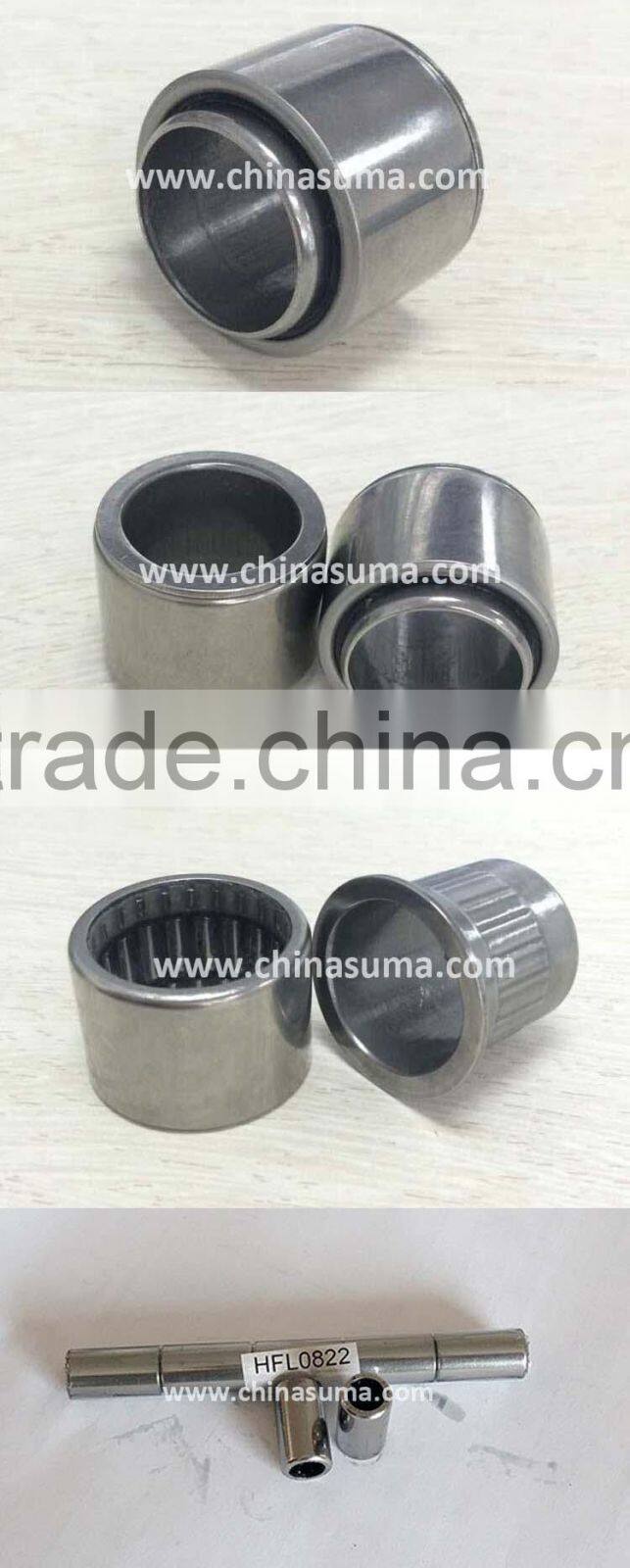

Structure of one-way clutch:
| Metric size | Inch size | Marks |
| HFL | FCB | steel spring |
| HFL..KF | RCB | plastic spring |
| HFL..R | steel spring and knurls on outer ring | |
| HFL..KFR | plastic spring and knurls on outer ring |
Speciification of one-way clutch
Product name |
bearing needle roller |
Model |
HFL2026 |
Material |
ST14 |
Torque capacity |
28.5Nm |
Inner diameter |
20mm |
Outer diameter |
26mm |
Height |
26mm |
Weight |
27g |
Structure |
Needle roller bearing |
Application |
Light industry, truckle, printing, textile, packing machinery |
Package |
Wooden box, tube, pulley, etc |
Payment terms |
TT. L/C, D/A,D/P,Western Union |
Delivery time |
2-4 days for the sample, 7 days for big order |
Catalogue of one-way clutch for your choice
| Shaft Dia. | Clutch Designation | Mass |
Borndary Dimensions |
Torque | Limiting Speed |
Basic Load Ratings |
|||||
| Fw | D | C | Shaft Rotating |
Rotatng Outer Ring |
C | Co | |||||
| Min-1 | Min-1 |
KN | |||||||||
| mm | Plastic Springs | Steel Springs | g | mm | Nm | rpm | |||||
| 3 | HFL0308KF | -- | 3 | 3 | 3.6 | 8 | 1 | -- | -- | -- | -- |
| 4 | HFL0408KF | -- | 3.5 | 4 | 8 | 8 | 1.5 | -- | -- | -- | -- |
| 6 | HFL0615KF | HFK0615 | 4 | 6 | 10 | 15 | 1.76 | 23000 | 13000 | -- | -- |
| HFL0615KFR | HFL0615R | 4 | 6 | 10 | 15 | 0.5 | 23000 | 13000 | -- | -- | |
| -- | HFL061012K | 5 | 6 | 10 | 12 | -- | 21000 | 12000 | -- | -- | |
| 8 | -- | HFL081212K | 6 | 8 | 12 | 12 | -- | 20000 | 12000 | -- | -- |
| -- | HFL081412K | 7 | 8 | 14 | 12 | -- | 19000 | 12000 | -- | -- | |
| HFL0822KF | HFL0822 | 7 | 8 | 12 | 22 | 3.15 | 17000 | 12000 | 4.05 | 4.15 | |
| HFL0822KFR | HFL0822R | 7 | 8 | 12 | 22 | 1 | 17000 | 12000 | -- | -- | |
| 10 | HFL1022KF | HFL1022 | 8 | 10 | 14 | 22 | 5.3 | 14000 | 11000 | 4.3 | 4.65 |
| HFL1022KFR | HFL1022R | 8 | 10 | 14 | 22 | 1.5 | 14000 | 11000 | -- | -- | |
| 12 | -- | HFL1226 | 18 | 12 | 18 | 26 | 12.2 | 11000 | 8000 | 6.3 | 6.5 |
| 14 | -- | HFL1426 | 20 | 14 | 20 | 26 | 17.3 | 9500 | 8000 | 7.1 | 7.7 |
| 16 | -- | HFL1626 | 22 | 16 | 22 | 26 | 20.5 | 8500 | 7500 | 7.7 | 9 |
| 18 | -- | HFL1826 | 25 | 18 | 24 | 26 | 24.1 | 7500 | 7500 | 8.3 | 10.3 |
| 20 | -- | HFL2026 | 27 | 20 | 26 | 26 | 28.5 | 7000 | 6500 | 8.9 | 11.5 |
| 25 | -- | HFL2530 | 44 | 25 | 32 | 30 | 66 | 5500 | 5500 | 10.9 | 14.1 |
| 30 | -- | HFL3030 | 51 | 30 | 37 | 30 | 90 | 4500 | 4500 | 12.6 | 17.6 |
| 35 | -- | HFL3530 | 58 | 35 | 42 | 30 | 121 | 3900 | 3900 | 13 | 19.3 |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the one-way clutch ?
A: Usually one-way clutch are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of one-way clutch from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver one-way clutch in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
Any needs, pls feel free to contact me at any time !
