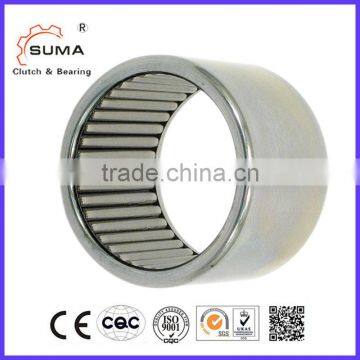

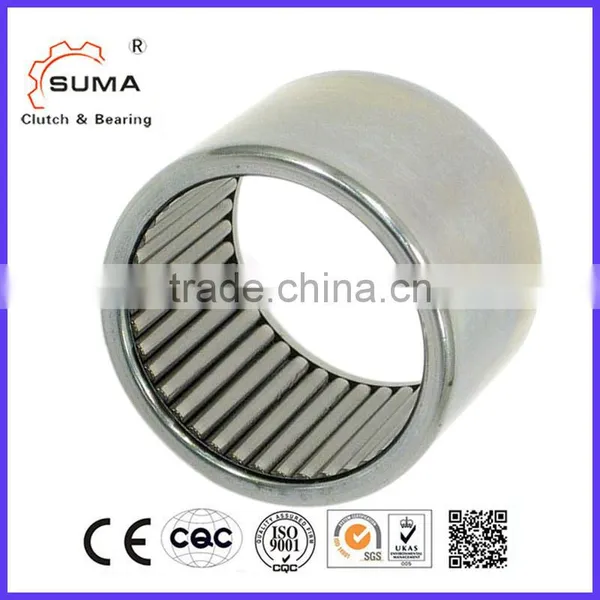

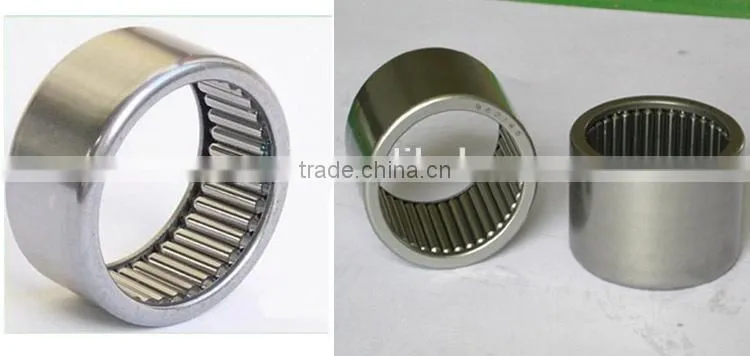

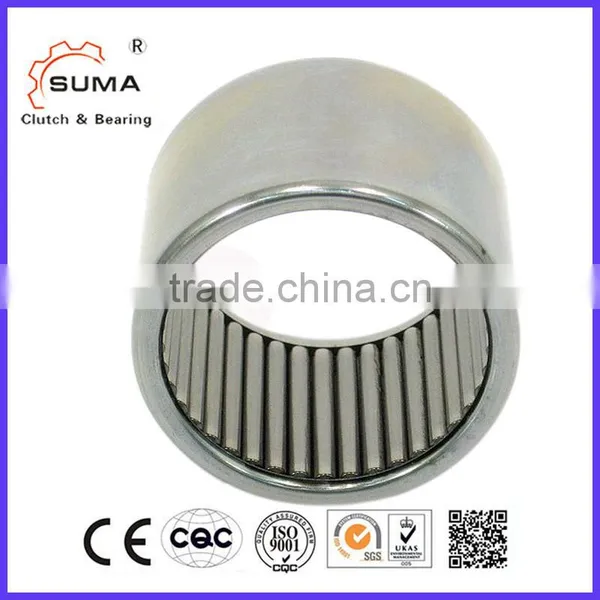

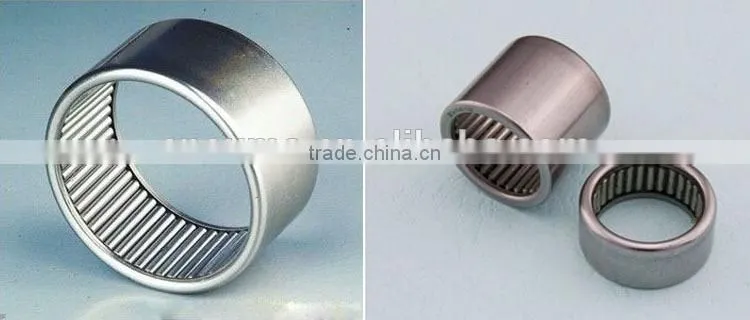

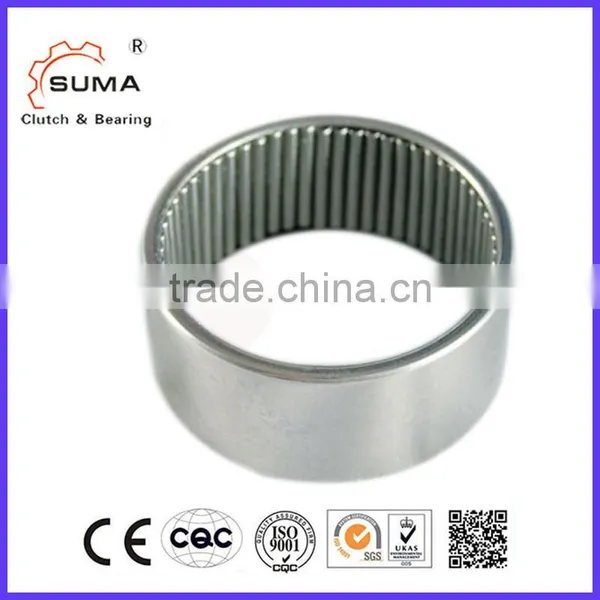

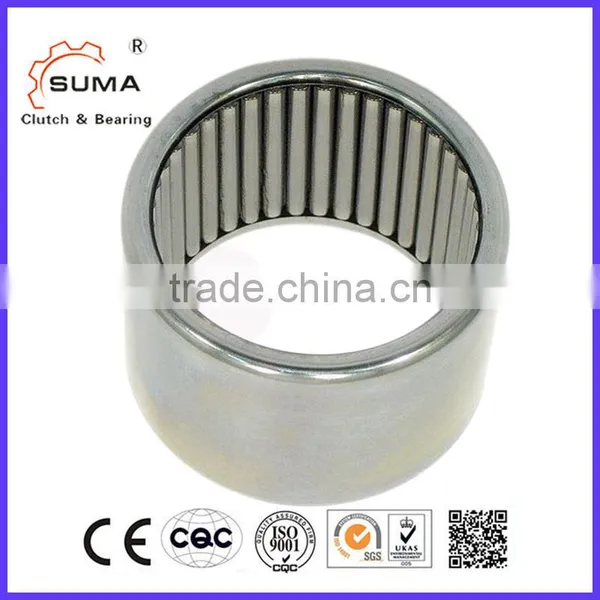

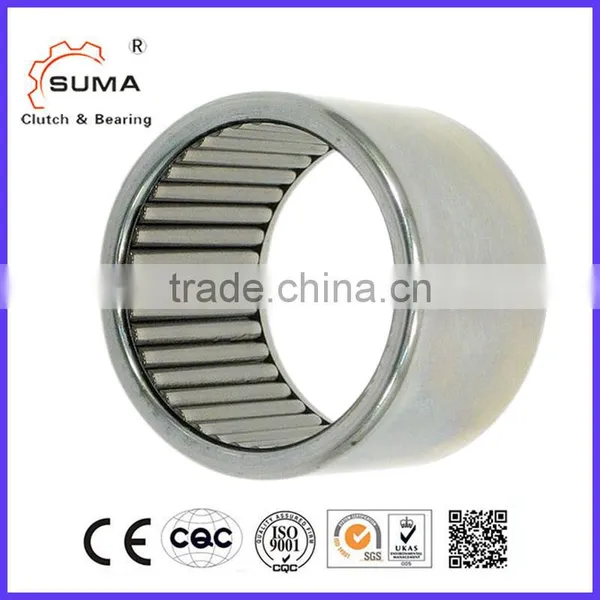

Drawn Cup One-Way Clutch Bearing Needle B1010

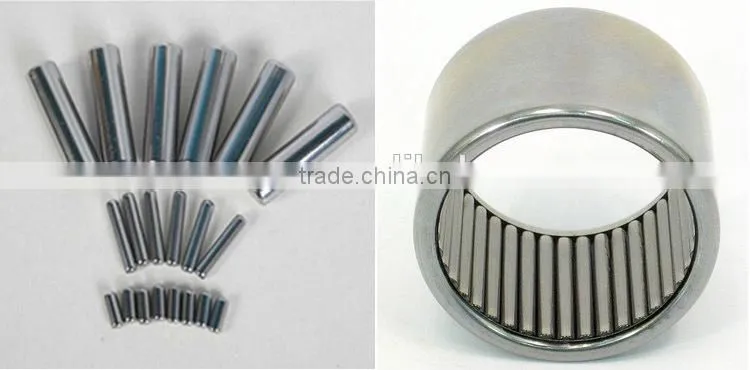

Structure of full complement needle bearing :
B series are inch-size drawn cup full complement needle roller bearings with open end.
B Series with pressed outer ring is made of high-quality thin sheet by fine stamping process.
Further axial orientation is not necessary after pressing into the bearing seat hole.
Widely used in , printers, etc.
Available Shaft Diameter: 6.35-69.85 mm
| Specification | |
| Model | B 1010 |
| Materail | ST14 |
| Shaft Diameter | 15.88mm |
| Outer diameter | 20.64mm |
| Height | 15.88mm |
| Dynamic capacity | 3070N |
| Static capacity | 5900N |
| RMP | 4500 |
| Application | Automobiles, motorcycles, power tools, textile machines, farm machines , printers |
| Package | Roll pack/ carton package / Wooden package |
| Delivery time | 1 day for sample, 5-7 days for big order |
| Payment terms | TT, L/C, D/P, D/A, Western Union, Paypal |
Catalogue of full complement needle bearing for your choice
Shaft Diameter | Bearing Designation and mass approx | Boundary Dimensions | Basic Load Rating | Limiting | ||||
| Open end | Closed end | ID | OD | Height | Dynamic | Static | ||
| mm | mm | mm | N | N | rpm | |||
| 6.35 | B-44 | M-441 | 6.35 | 11.11 | 6.35 | 566 | 531 | 10000 |
| B-45 | M-451 | 6.35 | 11.11 | 7.92 | 768 | 786 | 10000 | |
| B-47 | M-471 | 6.35 | 11.11 | 11.13 | 1210 | 1410 | 10000 | |
| 7.94 | B-55 | M-551 | 7.94 | 12.7 | 7.92 | 883 | 985 | 8300 |
| B-56 | -- | 7.94 | 12.7 | 9.52 | 1140 | 1370 | 8300 | |
| B-57 | M-571 | 7.94 | 12.7 | 11.13 | 1390 | 1770 | 8300 | |
| B-59 | -- | 7.94 | 12.7 | 14.27 | 1850 | 2550 | 8300 | |
| BH-57 | -- | 7.94 | 14.29 | 11.13 | 1530 | 1590 | 11000 | |
| BH-59 | -- | 7.94 | 14.29 | 14.27 | 2080 | 2340 | 11000 | |
| 9.52 | B-65 | M-651 | 9.52 | 14.29 | 7.92 | 984 | 1180 | 7100 |
| B-66 | M-661 | 9.52 | 14.29 | 9.52 | 1280 | 1650 | 7100 | |
| B-67 | -- | 9.52 | 14.29 | 11.13 | 1550 | 2120 | 7100 | |
| B-68 | M-681 | 9.52 | 14.29 | 12.7 | 1810 | 2590 | 7100 | |
| B-69 | -- | 9.52 | 14.29 | 14.27 | 2070 | 3070 | 7100 | |
| B-610 | M-6101 | 9.52 | 14.29 | 15.88 | 2310 | 3530 | 7100 | |
| BH-68 | -- | 9.52 | 15.88 | 12.7 | 2050 | 2380 | 9400 | |
| 11.11 | B-76 | -- | 11.11 | 15.88 | 9.52 | 1390 | 1930 | 6300 |
| B-77 | -- | 11.11 | 15.88 | 11.13 | 1700 | 2480 | 6300 | |
| B-78 | M-781 | 11.11 | 15.88 | 12.7 | 1980 | 3030 | 6300 | |
| B-710 | -- | 11.11 | 15.88 | 15.88 | 2520 | 4130 | 6300 | |
| BH-78 | -- | 11.11 | 17.46 | 12.7 | 2260 | 2780 | 8300 | |
| 12.7 | B-85 | -- | 12.7 | 17.46 | 7.92 | 1160 | 1580 | 5500 |
| B-86 | M-861 | 12.7 | 17.46 | 9.52 | 1500 | 2200 | 5500 | |
| B-87 | M-871 | 12.7 | 17.46 | 11.13 | 1830 | 2840 | 5500 | |
| B-88 | M-881 | 12.7 | 17.46 | 12.7 | 2130 | 3460 | 5500 | |
| B-810 | M-8101 | 12.7 | 17.46 | 15.88 | 2720 | 4720 | 5500 | |
| B-812 | M-8121 | 12.7 | 17.46 | 19.05 | 3260 | 5980 | 5500 | |
| BH-87 | -- | 12.7 | 19.05 | 11.13 | 2060 | 2550 | 7500 | |
| BH-88 | -- | 12.7 | 19.05 | 12.7 | 2450 | 3180 | 7500 | |
| BH-810 | -- | 12.7 | 19.05 | 15.88 | 3180 | 4440 | 7500 | |
| BH-812 | -- | 12.7 | 19.05 | 19.05 | 3850 | 5690 | 7500 | |
| 14.29 | B-95 | M-951 | 14.29 | 19.05 | 7.92 | 1240 | 1780 | 5000 |
| B-96 | -- | 14.29 | 19.05 | 9.52 | 1600 | 2480 | 5000 | |
| B-97 | -- | 14.29 | 19.05 | 11.13 | 1950 | 3190 | 5000 | |
| B-98 | -- | 14.29 | 19.05 | 12.7 | 2280 | 3900 | 5000 | |
| B-910 | -- | 14.29 | 19.05 | 15.88 | 2900 | 5310 | 5000 | |
| B-912 | M-9121 | 14.29 | 19.05 | 19.05 | 3480 | 6730 | 5000 | |
| BH-98 | -- | 14.29 | 20.64 | 12.7 | 2630 | 3580 | 6800 | |
| BH-910 | -- | 14.29 | 20.64 | 15.88 | 3400 | 5000 | 6800 | |
| BH-912 | -- | 14.29 | 20.64 | 19.05 | 4130 | 6410 | 6800 | |
| 15.88 | B-105 | -- | 15.88 | 20.64 | 7.92 | 1310 | 1980 | 4500 |
| B-107 | M-1071 | 15.88 | 20.64 | 11.13 | 2070 | 3550 | 4500 | |
| B-108 | M-1081 | 15.88 | 20.64 | 12.7 | 2410 | 4330 | 4500 | |
| B-1010 | -- | 15.88 | 20.64 | 15.88 | 3070 | 5900 | 4500 | |
| B-1012 | M-10121 | 15.88 | 20.64 | 19.05 | 3690 | 7480 | 4500 | |
| BH-108 | MH-1081 | 15.88 | 22.22 | 12.7 | 2790 | 3890 | 6200 | |
| BH-1010 | -- | 15.88 | 22.22 | 15.88 | 3620 | 5530 | 6200 | |
| BH-1012 | -- | 15.88 | 22.22 | 19.05 | 4390 | 7130 | 6200 | |
| BH-1016 | -- | 15.88 | 22.22 | 25.4 | 5830 | 10300 | 6200 | |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Our Accept Payment terms are: L/C,D/A,D/P,T/T,Western Union,Money Gram
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the drawn cup needle bearing?
A: Usually drawn cup needle bearing are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of drawn cupneedle bearing from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the drawn cup needle bearing in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
Any needs, pls feel free to contact me at any time !
