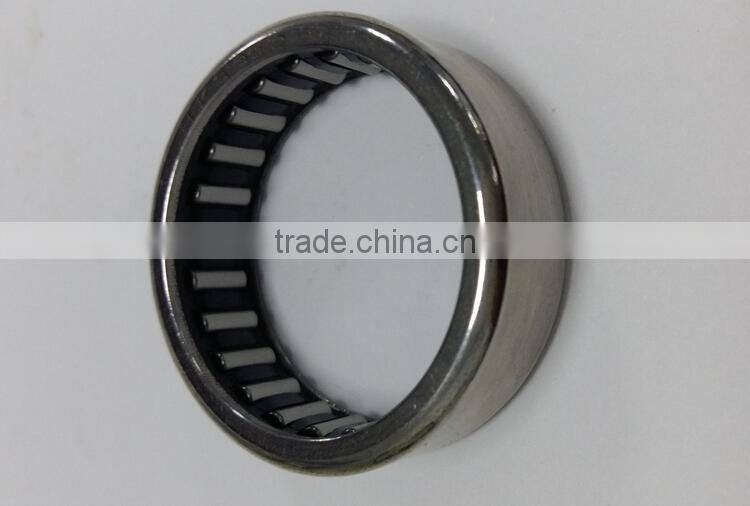

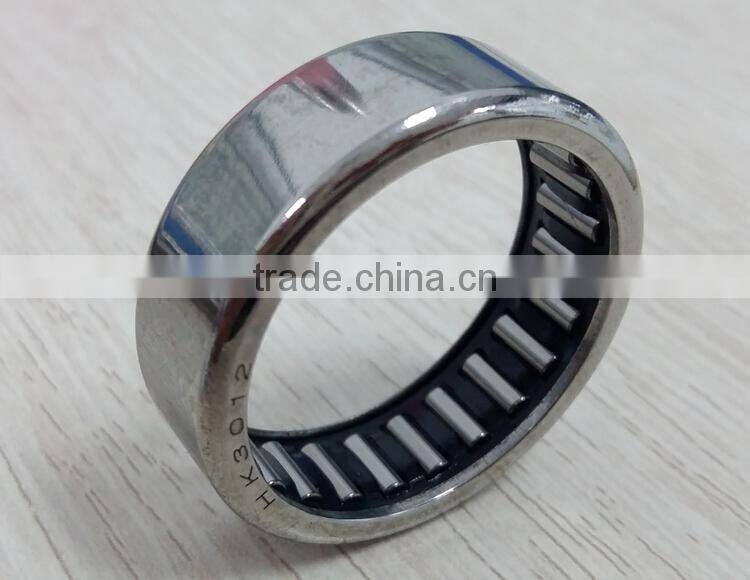

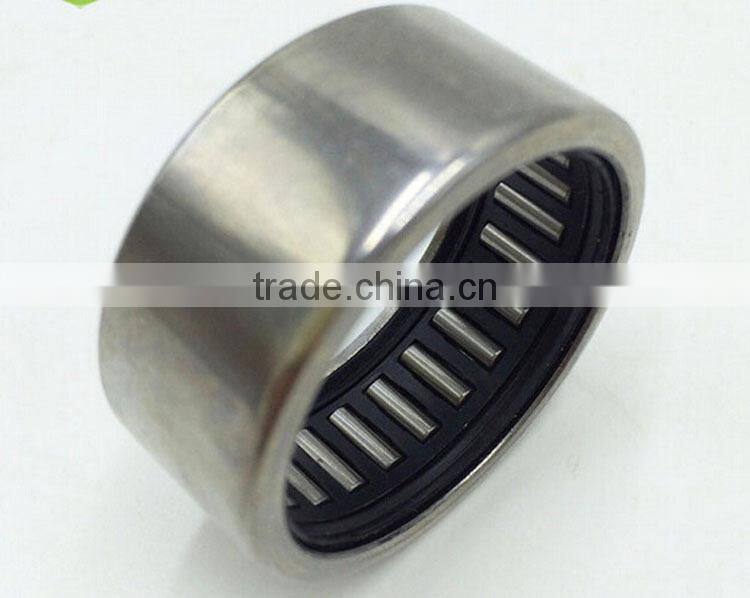

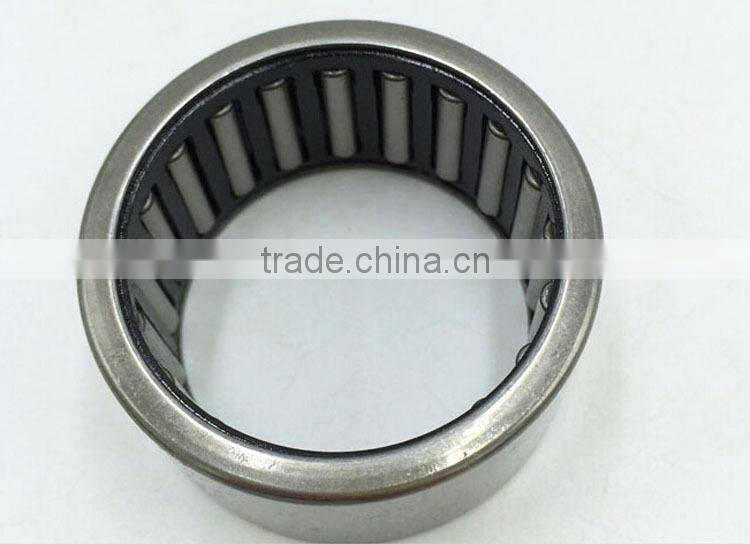

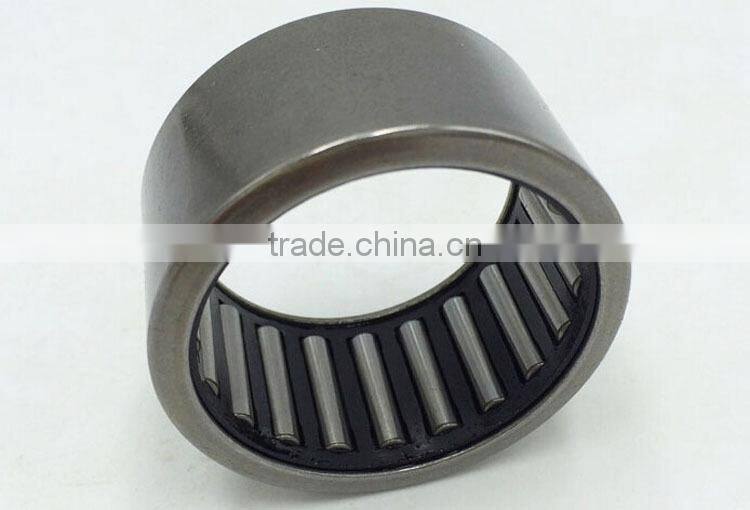

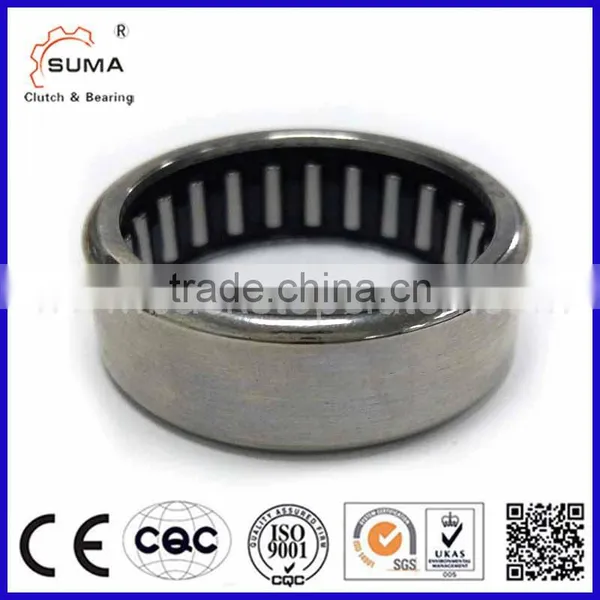

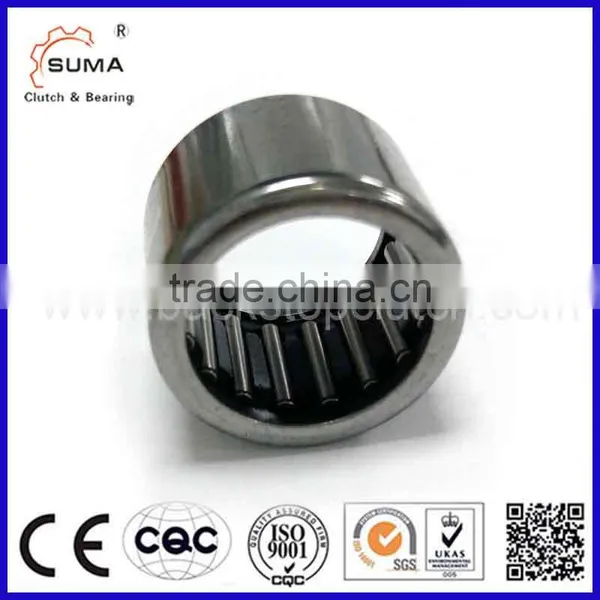

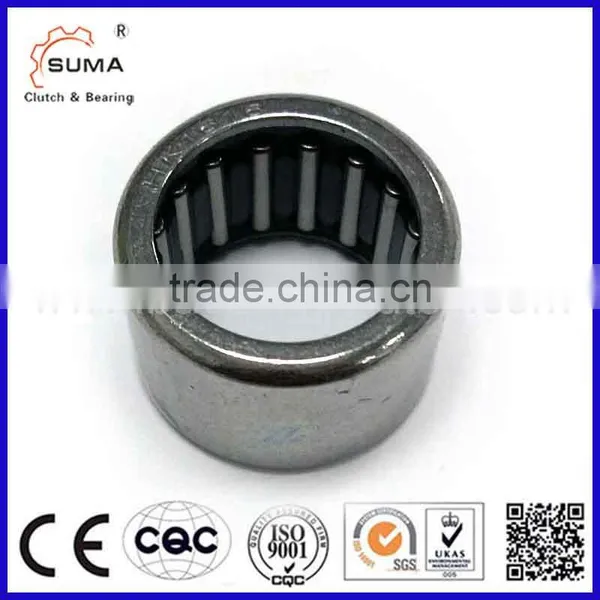

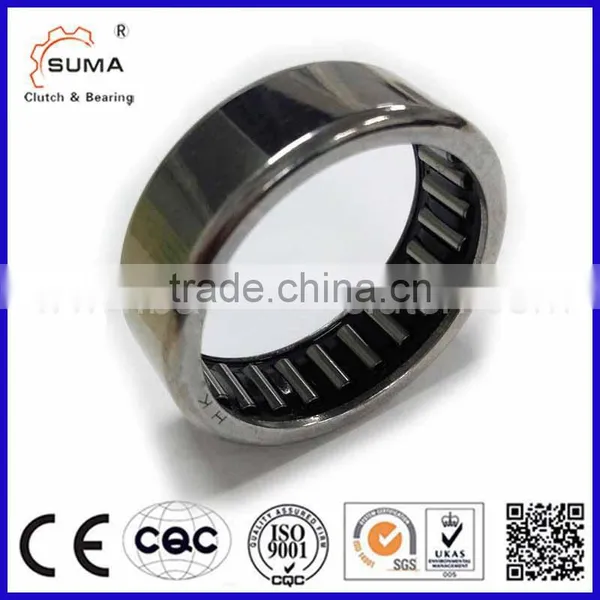

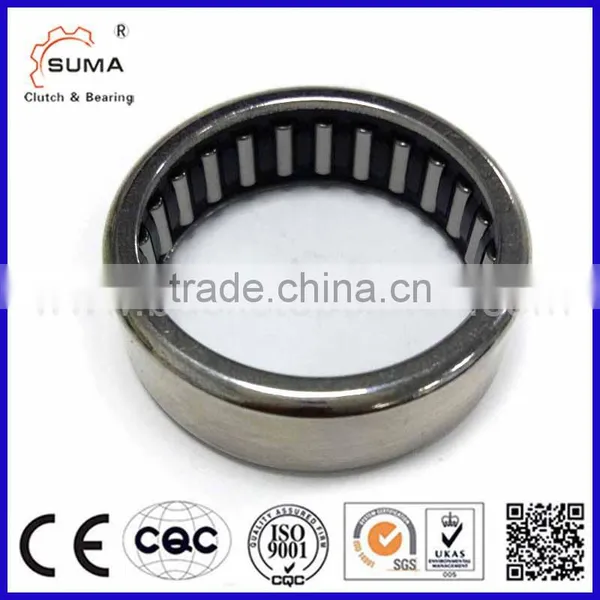

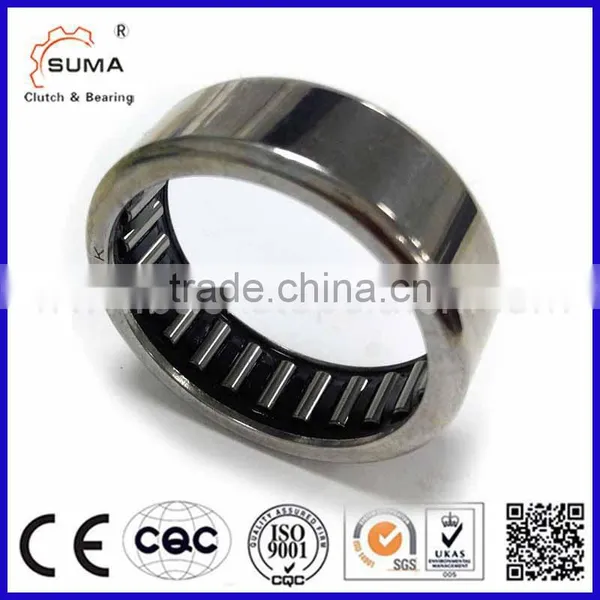

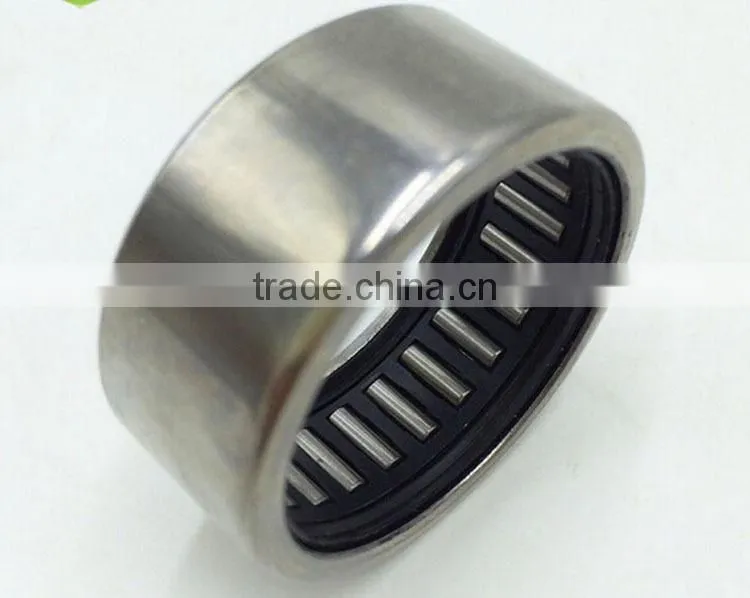

Needle Type One Way Roller Bearing HK2816 BK2816
Features of hk one way roller bearings
HK is a one way needle clutch which applied flexibly of the technology of small bearings ,and
make the structure more compact as well as higher performance.
Material of hk one way roller bearing
Outer ring: is made by sintered metal
Spring: is made by stainless steel
Product name | One way needle roller bearing |
Model | HK2816 |
Material | ST14 |
Precision | P6 |
Limting Speed | 8700 |
Thickness | 16mm |
lnner diameter | 28mm |
Outer diameter | 35mm |
Dynamic Load capacity | 15400Nm |
Static Load capacity | 22500Nm |
Application | Fishing machinery, ATM, Counting machine, Printer, copier, etc |
Package | Wooden box, tube, pulley, etc |
Payment terms | TT. L/C, D/A,D/P,Western Union,Paypal |
Delivery time | 2-4 days for the sample, 7 days for big order |

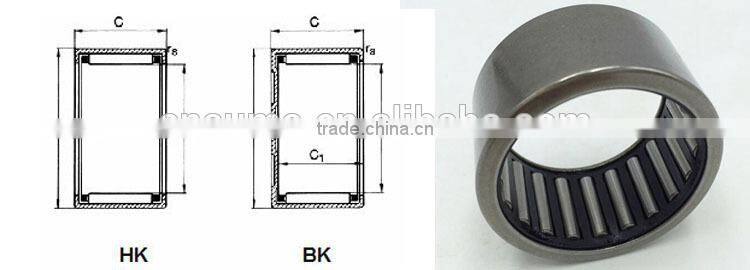

Catalogue of hk needle roller bearing for your choice
| Drawn cup needle roller Bearings | |||||||
| Bearing Designation | Boundary Dimensions | Basic Load Ratings | Limiting Speed | ||||
| HK | BK | Fw | D | C | Cr Dynamic | Cor Static | Oil |
| mm | mm | mm | Nm | Nm | |||
| HK0306TN | BK0306TN | 3 | 6.5 | 6 | 1320 | 950 | 60000 |
| HK0408TN | BK0408TN | 4 | 8 | 8 | 1540 | 1070 | 40000 |
| HK0509 | BK0509 | 5 | 9 | 9 | 2200 | 1790 | 36000 |
| HK0608 | - | 6 | 10 | 8 | 1830 | 1550 | 32000 |
| HK0609 | BK0609 | 6 | 10 | 9 | 2650 | 2400 | 3000 |
| HK0708 | - | 7 | 11 | 8 | 2800 | 2150 | 27000 |
| HK0709 | BK0709 | 7 | 11 | 9 | 2800 | 2150 | 27000 |
| HK0808 | BK0808 | 8 | 12 | 8 | 2550 | 2400 | 21000 |
| HK0810 | BK0810 | 8 | 12 | 10 | 3700 | 3450 | 21000 |
| HK08×14×10 | - | 8 | 14 | 10 | 3800 | 3950 | 25000 |
| HK08×14×12 | - | 8 | 14 | 12 | 4100 | 4320 | 25000 |
| HK0910 | BK0910 | 9 | 13 | 10 | 4050 | 4250 | 25000 |
| HK0912 | - | 9 | 13 | 12 | 5000 | 6000 | 25000 |
| HK1010 | BK1010 | 10 | 14 | 10 | 3900 | 4800 | 19000 |
| HK1012 | BK1012 | 10 | 14 | 10 | 5000 | 6300 | 19000 |
| HK1015 | - | 10 | 14 | 15 | 6700 | 7800 | 19000 |
| HK10×16×10 | - | 10 | 16 | 10 | 6800 | 8800 | 18000 |
| HK10×16×12 | - | 10 | 16 | 12 | 6800 | 8800 | 18000 |
| HK10×16×15 | - | 10 | 16 | 15 | 6800 | 8800 | 19000 |
| HK1210 | BK1210 | 12 | 16 | 10 | 4150 | 5800 | 19000 |
| HK1212 | BK1212 | 12 | 18 | 12 | 3800 | 5100 | 15000 |
| HK12×17×12 | - | 12 | 17 | 12 | 5100 | 7000 | 15000 |
| HK12×17×15 | - | 12 | 17 | 15 | 5100 | 7000 | 15000 |
| HK12×17×18 | - | 12 | 17 | 18 | 5100 | 7000 | 15000 |
| HK12×18×12 | BK12×18×12 | 12 | 18 | 12 | 550 | 6300 | 17000 |
| HK1312 | BK1312 | 13 | 19 | 12 | 6200 | 7100 | 17000 |
| HK13.5×20×12 | - | 13.5 | 20 | 12 | 6250 | 7590 | 16000 |
| HK1412 | - | 14 | 20 | 12 | 6800 | 7500 | 14000 |
| HK1416 | - | 14 | 20 | 16 | 7300 | 9000 | 14000 |
| HK15×20×12 | - | 15 | 20 | 12 | 5800 | 6000 | 14000 |
| HK15×20×16 | - | 15 | 20 | 16 | 6000 | 6200 | 14000 |
| HK15×20×20 | - | 15 | 20 | 20 | 6100 | 6400 | 14000 |
| HK1512 | BK1512 | 15 | 21 | 12 | 7000 | 8400 | 14000 |
| HK1514 | - | 15 | 21 | 14 | 8500 | 10400 | 13000 |
| HK1515 | - | 15 | 21 | 15 | 9100 | 11400 | 13000 |
| HK1516 | BK1516 | 15 | 21 | 16 | 9800 | 11400 | 14000 |
| HK1522 | - | 15 | 21 | 22 | 10400 | 16500 | 14000 |
| HK15×22×12 | - | 15 | 22 | 12 | 14300 | 18400 | 13000 |
| HK1612 | BK1612 | 16 | 22 | 12 | 7100 | 9200 | 14000 |
| HK1614 | - | 16 | 22 | 14 | 8800 | 9900 | 12000 |
| HK1616 | BK1616 | 16 | 22 | 16 | 10100 | 14300 | 14000 |
| HK1622 | - | 16 | 22 | 22 | 11100 | 17400 | 14000 |
| HK1712 | - | 17 | 23 | 12 | 6900 | 9300 | 13000 |
| HK1714 | - | 17 | 23 | 14 | 6800 | 10200 | 10000 |
| HK1716 | - | 17 | 23 | 16 | 8500 | 12500 | 10000 |
| HK1718 | - | 17 | 23 | 18 | 9500 | 10600 | 10000 |
| HK17×25×14 | - | 17 | 25 | 14 | 13100 | 147000 | 10000 |
| HK17×25×18 | - | 17 | 25 | 18 | 9500 | 10600 | 11000 |
| HK1812 | - | 18 | 24 | 12 | 7100 | 9900 | 12000 |
| HK1816 | BK1816 | 18 | 24 | 16 | 10600 | 15300 | 12000 |
| HK2010 | - | 20 | 26 | 10 | 5900 | 7200 | 10000 |
| HK2014 | - | 20 | 26 | 14 | 9700 | 18100 | 9000 |
| HK2016 | BK2016 | 20 | 26 | 16 | 11700 | 29100 | 10000 |
| HK2018 | - | 20 | 26 | 18 | 7900 | 12800 | 9000 |
| HK2020 | - | 20 | 26 | 20 | 13700 | 24000 | 10000 |
| HK2030 | - | 20 | 26 | 30 | 21800 | 40000 | 10100 |
| HK20×27×20 | - | 20 | 27 | 20 | 26300 | 47800 | 9900 |
| HK2210 | - | 22 | 28 | 10 | 7200 | 9500 | 10010 |
| HK2212 | BK2212 | 22 | 28 | 12 | 8100 | 10400 | 10010 |
| HK22×29×30 | - | 22 | 29 | 30 | 19400 | 33100 | 9000 |
| HK2512 | BK2512 | 25 | 32 | 12 | 10000 | 14200 | 9000 |
| HK2525 | BK2525 | 25 | 32 | 25 | 22200 | 36700 | 9000 |
| HK2816 | BK2816 | 28 | 35 | 16 | 15400 | 22500 | 8700 |
| HK2820 | BK2820 | 28 | 35 | 20 | 18900 | 32000 | 8700 |
| HK3012 | BK3012 | 30 | 37 | 12 | 10100 | 16200 | 8100 |
| HK3020 | BK3020 | 30 | 37 | 20 | 19700 | 33500 | 8100 |
| HK3224 | - | 32 | 39 | 24 | 25500 | 5200 | 7300 |
| HK3516 | BK3516 | 35 | 42 | 16 | 15700 | 27500 | 7100 |
| HK4012 | BK4012 | 40 | 47 | 12 | 14000 | 24300 | 6300 |
| HK4512 | BK4512 | 45 | 52 | 12 | 12900 | 22500 | 5800 |
| HK5020 | BK5020 | 50 | 58 | 20 | 28000 | 60000 | 5300 |
| HK6012 | BK6012 | 60 | 68 | 12 | 12400 | 29000 | 4100 |
Application of needle bearing
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Our Accept Payment terms are: L/C,D/A,D/P,T/T,Western Union,Money Gram
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the hk one way roller bearings
A: Usually hk bearing are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of hk one way roller bearings from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the hk one way roller bearings in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
Any needs, pls feel free to contact me at any time !
