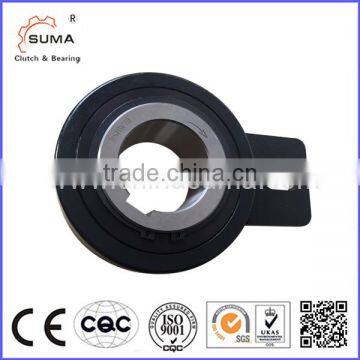

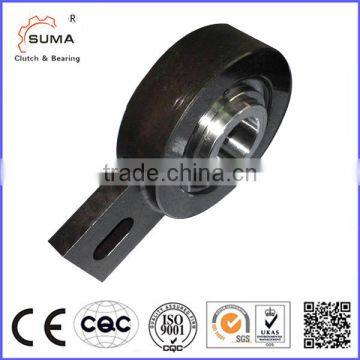

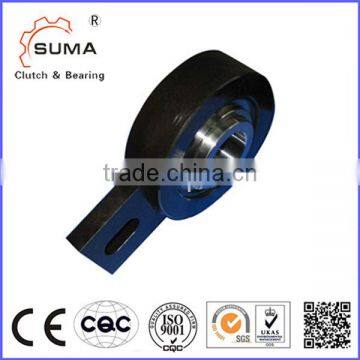

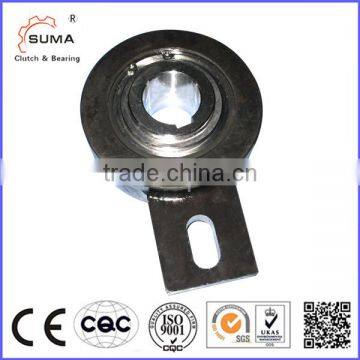

High Quality BSEU70-45 backstop clutch as printing machine

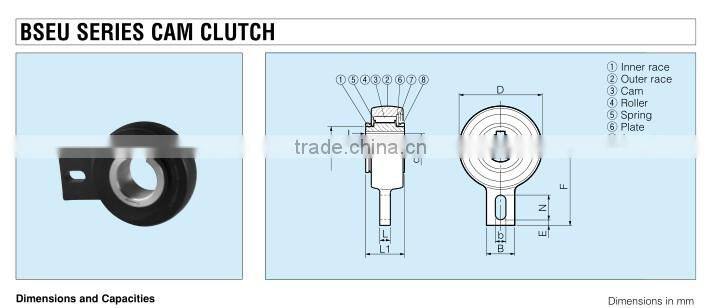

BSEU series Cam Clutch was developed as European style Backstopping Cam Clutch which has easy usage. It has Cam & Roller construction that the roller works as a bearing same as the small size BS series Cam Clutch. The outer race has special shape which was combined the torque arm, so only stopping the rotation is required. You can select the correct model from various bore size from 20 mm to 90 mm in each 5 mm. Backstopping for the country elevator or the foods conveying conveyor which is used in the factory is the recommendation.
| Model | Bore size | Keyway | Torque capacity | Inner Race Max Overrunning | D | D2 | L1 | L | B | F | b | N | E | J | W. min | W.Max |
| Dia(H7) | N.m | r/min | ||||||||||||||
| BSEU25-20 | 20 | 6X2.8 | 216 | 500 | 83 | 42 | 35 | 12 | 40 | 90 | 15 | 35 | 5 | 1 | 0.999 | 0.948 |
| BSEU25-25 | 25 | 8X3.3 | 216 | 500 | 83 | 42 | 35 | 12 | 40 | 90 | 15 | 35 | 5 | 1 | ||
| BSEU40-20 | 20 | 6X2.8 | 1440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | 3.781 | 3.363 |
| BSEU40-25 | 25 | 8X3.3 | 1440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | ||
| BSEU40-30 | 30 | 8X3.3 | 1440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | ||
| BSEU40-35 | 35 | 10X3.3 | 1440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | ||
| BSEU40-40 | 40 | 12X3.3 | 1440 | 450 | 118 | 60 | 55 | 15 | 40 | 110 | 15 | 35 | 8 | 1.5 | ||
| BSEU70-45 | 45 | 14X3.8 | 3140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 1.5 | 7.607 | 6.541 |
| BSEU70-50 | 50 | 14X3.8 | 3140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | ||
| BSEU70-55 | 55 | 16X4.3 | 3140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | ||
| BSEU70-60 | 60 | 18X4.4 | 3140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | ||
| BSEU70-65 | 65 | 18X4.4 | 3140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | ||
| BSEU70-70 | 70 | 20X4.9 | 3140 | 350 | 165 | 90 | 59 | 20 | 80 | 140 | 18 | 35 | 10 | 2 | ||
| BSEU90-75 | 75 | 20X4.9 | 4700 | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 | 10.046 | 9.265 |
| BSEU90-80 | 80 | 22X5.4 | 4700 | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 | ||
| BESU90-85 | 85 | 22X5.4 | 4700 | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 | ||
| BSEU90-90 | 90 | 25X5.4 | 4700 | 250 | 190 | 120 | 63 | 20 | 80 | 165 | 20 | 40 | 15 | 2 | ||
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
Q: How do you pack the cam clutch bearing ?
A: Usually cam clutch bearing are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of cam clutch bearing from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver cam clutch bearing in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
