Home > Products > One way clutch (indexing clutch) > One Way Clutch with good quality (Indexing clutch) (MZ) Cam Clutch
One Way Clutch with good quality (Indexing clutch) (MZ) Cam Clutch
- Shanghai ; Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Brand Name | SUMA or OEM | Bore Size | 15, 70 | |
| Outside Diameter | 68, 175 | Model Number | MZ15 - MZ70 | |
| Precision Rating | P0 | Seals Type | Sealed | |
| Place of Origin | Jiangsu, China |
Product Description

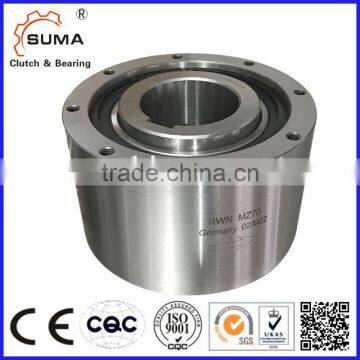

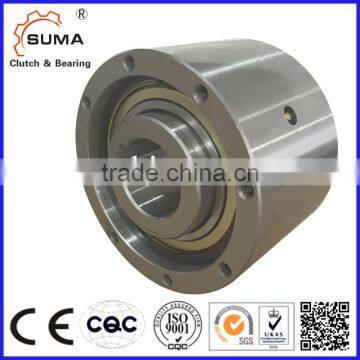

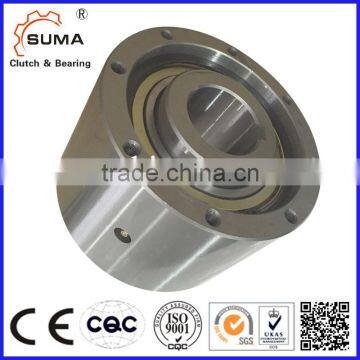

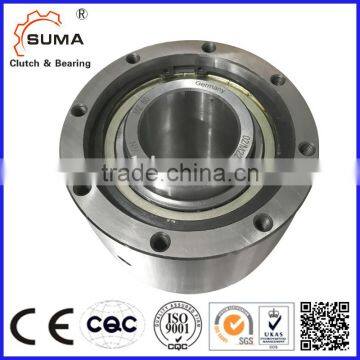

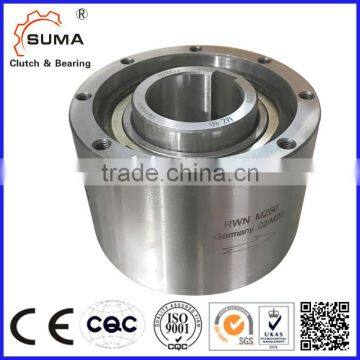

One Way Clutch with good quality (Indexing clutch) (MZ)
Installation and Usage
1. MZ Series Cam Clutch is Shielded by shield bearings on both ends, packed with a special grease, and are ready for use. No additional lubricant is required.
2. For attaching pulleys, gears or sprockets to the clutches, insert hubs (with f7 tolerance of ISOR773) along the inner surface of the outer race and screw the bolts (high tension) into the tapped holes on the clutch end.
3. Recommended shaft tolerances are shown in the table on the lower left.
4. External thrust load should be supported by other devices, not by the Cam Clutch.
5. Use only a parallel key to secure the clutch to the shaft. Do not use a tapered Key.
6. When mounting the clutch onto the shaft, apply pressure to the inner race but never to the outer race
7. Ambient temperature range is 5° to 40°C.
8. Key to be used should be in accordance with ISOR773. (DIN 6885.1)
Model | Capacity | Torque | Over running Max. Race | Over running Max. Race | indexing /min) | Bore Size (H7) | Keyway | A | B | C | PCDD | (M6) E | F | G | H-M No. of Tapped x Pitch | S | Weight |
MZ15 | 186 | 0.20 | 2,200 | 900 | 150 | 15 | 5*2.3 | 62 | 68 | 60 | 58 | 47 | 25 | 5.5 | 6*M5*P0.8 | 10 | 1.4 |
MZ17 | 215 | 0.20 | 2,000 | 800 | 150 | 17 | 5*2.3 | 66 | 75 | 64 | 64 | 52 | 28 | 6.3 | 6*M5*P0.8 | 10 | 1.8 |
MZ20 | 323 | 0.29 | 1,900 | 700 | 150 | 20 | 6*2.8 | 67 | 80 | 65 | 68 | 55 | 30 | 7.6 | 6*M6*P1.0 | 12 | 2.0 |
MZ30-22 | 735 | 0.39 | 1,800 | 500 | 150 | 22 | 6*2.8 | 82 | 100 | 80 | 88 | 75 | 45 | 8.9 | 6*M8*P1.25 | 16 | 3.7 |
MZ30-25 | 735 | 0.39 | 1,800 | 500 | 150 | 25 | 8*3.3 | 82 | 100 | 80 | 88 | 75 | 45 | 8.9 | 6*M8*P1.25 | 16 | 3.7 |
MZ30 | 735 | 0.39 | 1,800 | 500 | 150 | 30 | 10*3.3 | 82 | 100 | 80 | 88 | 75 | 45 | 8.9 | 6*M8*P1.25 | 16 | 3.7 |
MZ35 | 1,080 | 0.49 | 1,700 | 300 | 150 | 35 | 10*3.3 | 87 | 110 | 85 | 95 | 80 | 50 | 8.7 | 6*M8*P1.25 | 16 | 4.8 |
MZ45-40 | 1,620 | 0.69 | 1,700 | 300 | 150 | 40 | 12*3.3 | 92 | 125 | 90 | 110 | 95 | 60 | 8.4 | 8*M8*P1.25 | 16 | 6.2 |
MZ45 | 1,620 | 0.69 | 1,700 | 300 | 150 | 45 | 14*3.8 | 92 | 125 | 90 | 110 | 95 | 60 | 8.4 | 8*M8*P1.25 | 16 | 6.2 |
MZ60-50 | 2,110 | 0.98 | 1,600 | 250 | 150 | 50 | 14*3.8 | 102 | 155 | 100 | 140 | 125 | 80 | 9.1 | 8*M8*P1.25 | 16 | 10.2 |
MZ60-55 | 2,110 | 0.98 | 1,600 | 250 | 150 | 55 | 16*4.3 | 102 | 155 | 100 | 140 | 125 | 80 | 9.1 | 8*M8*P1.25 | 16 | 10.2 |
MZ60 | 2,110 | 0.98 | 1,600 | 250 | 150 | 60 | 18*4.4 | 102 | 155 | 100 | 140 | 125 | 80 | 9.1 | 8*M8*P1.25 | 16 | 10.2 |
MZ70-65 | 3,040 | 1.27 | 1,300 | 250 | 150 | 65 | 18*4.4 | 105 | 175 | 103 | 162 | 145 | 95 | 8.6 | 8*M8*P1.25 | 16 | 13.2 |
MZ70 | 3,040 | 1.27 | 1,300 | 250 | 150 | 70 | 20*4.9 | 105 | 175 | 103 | 162 | 145 | 95 | 8.6 | 8*M8*P1.25 | 16 | 13.2 |
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Our Advantages
1. Advanced producing equipment.
2. Strict requirement for the raw material
3. Complete&perfect process flow
4. Good quality of each batch of the product
5. Different grades of price for different quality
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: Why do we choose your company?
A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples of one way clutch bearing to check quality first.
If you have any needs,pls contact me at any time!
