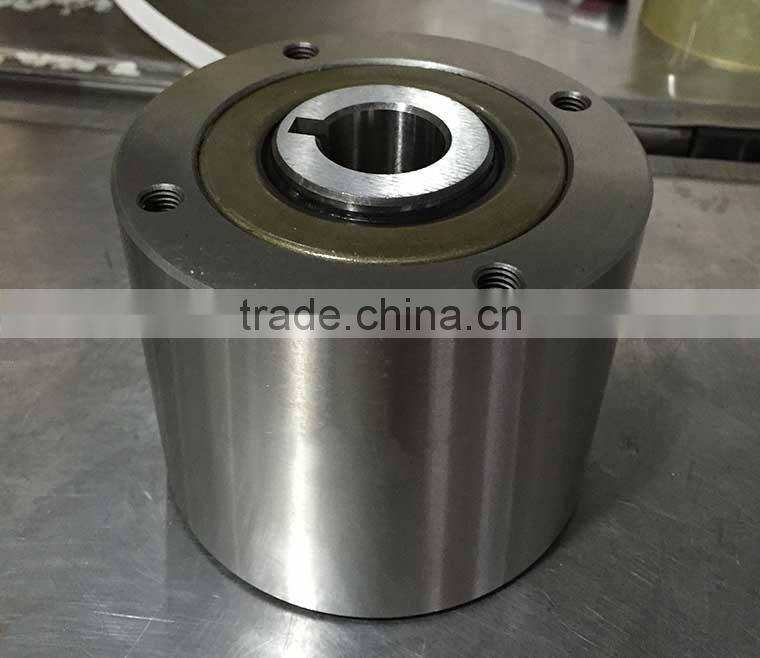

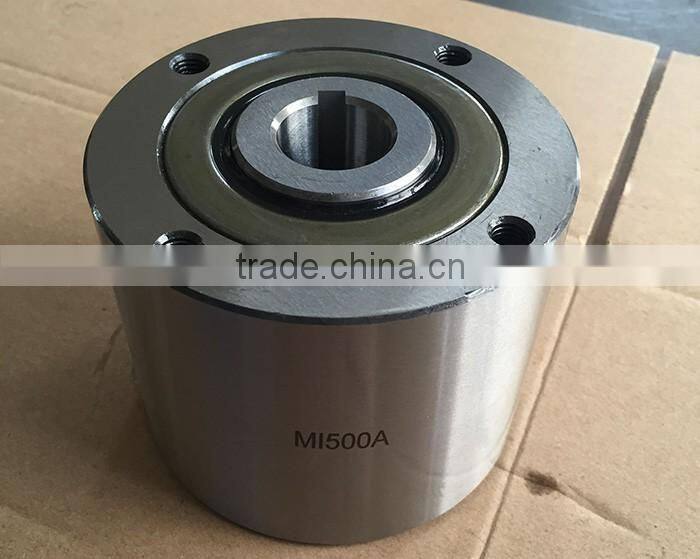

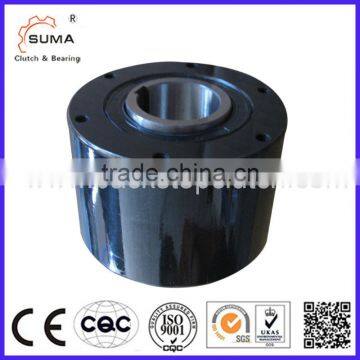

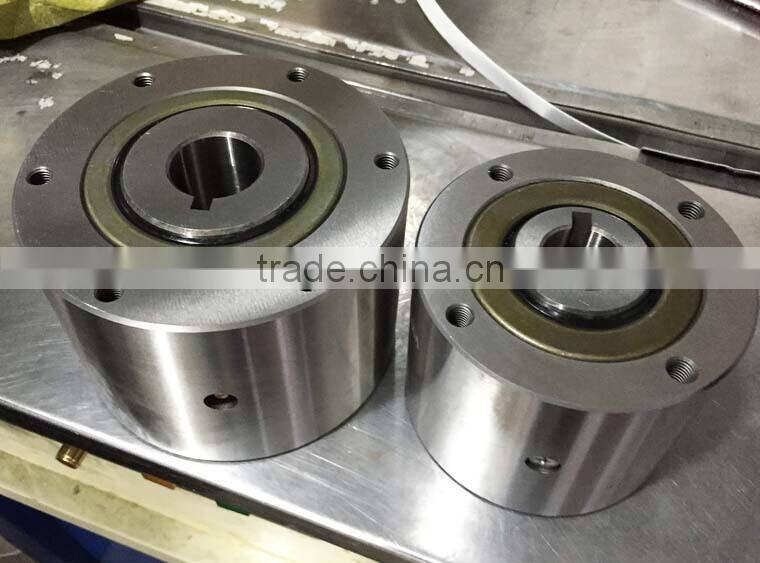

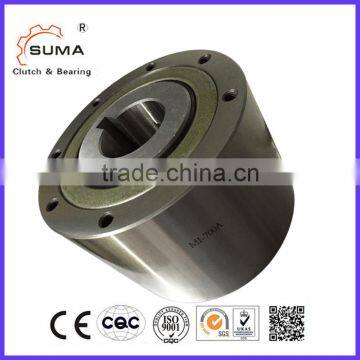

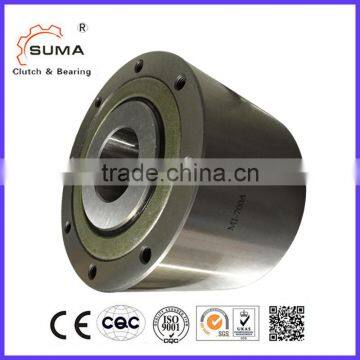

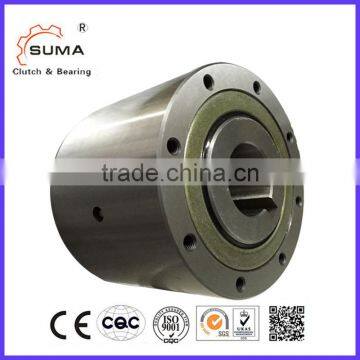

MG/MI Cam Clutch One Way Clutch Bearing

 Feature

1.MG Series Cam Clutch is used for inner race overrunning applications. MI Series Cam Clutch is used for indexing applications
2. For attaching a pulley, a gear, or sprocket to the clutch, insert the clutch into the hub of the device, and screw the bolts (high tension) into the tapped holes on the clutch end. The tolerance bore of the hub should be H6 or H7 of JIS standard
3. Recommended shaft tolerances are as follows:
4. The key should be in accordance with JIS B1301-1959. However, for M750 and above models, a key is attached.
5. Use only a parallel key to secure the clutch. Never use a tapered key.
6. If the clutch receives shock loads or is designed for use at full torque capacity, it is better to use a
hardened key and shaft.
7. Allow for a clearance between the top of the clutch keyway and the top of the key for pressure ventilation of the clutch in the case of MG Series. A pressure ventilation hole is provided on the keyway of the clutch inner race.
8. When mounting the clutch on a shaft, apply pressure to the inner race, but never to the outer race.
9. Thrust load should be taken up by other devices, not by the Cam Clutch.
10.When using MG Series at medium and high speeds, pay attention to heating. Longevity is shortened if
the temperature of Cam Clutch outer race rises to over 70°C. In case of continuous over running
Please contact Tubaki. In this case, use a different model or provide an oil bath or forced lubrication.
11.Oil is not sealed in at the time of shipment. Supply an appropriate amount of oil before use.
12.When placing an order for MG Series Cam Clutch model MG 750 and above, please inform of the overrunning speed you use.
13.For vertical mounting, please consult .

Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

Our Advantages
1. Advanced producing equipment.
2. Strict requirement for the raw material
3. Complete&perfect process flow
4. Good quality of each batch of the product
5. Different grades of price for different quality

Pre-sale service:

We will delivery the goods in 10 days after your order is confirmed.

After sale service:

Our factory provide technical assistance to support every doubt during usage and maintenance.

Q: Why do we choose your company?

A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.

Q:What is the delivery time?

A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.

Q: What is your payment term?

A: Our payment term include L/C, T/T, Western Union, Paypal etc.

Q: Can you send bearing samples first?

A: Yes, we can send bearing samples of one way clutch bearing to check quality first.

If you have any needs,pls contact me at any time!
