One Way Clutch Indexing Clutch Bearing ASK One Way Bearing
- Shanghai ; Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
TFS25 One-way Clutch for Printing Machine
-
FSO300-700 China Bearing Factory One Way Bearing Indexing Clutch
-
KI Series One Way Clutch Indexing Clutch Bearing
-
FE Series One Way Freewheel Cage Bearing One Way
-
GF80 One-way Clutch Bearing Made of Ball Bearing Steels GCr15
-
High Quality BSEU70-45 Backstop Clutch as Printing Machine
Product Details
| Brand Name | SUMA OR OEM | Bore Size | 40, 60 | |
| Outside Diameter | 68, 95 | Model Number | ASK | |
| Precision Rating | p6 | Seals Type | Seal | |
| Place of Origin | Jiangsu, China |
Product Description
One Way Clutch Indexing Clutch Bearing ASK One Way Bearing
Data Sheet
| Item | ASK |
| Material | GCr15 |
| Outer diameter | 68-95 mm |
| Inner diameter | 40-60 mm |
| Width | 15-18 mm |
| Bearing series | 6008-6012 |
| Torque | 72-250 Nm |
| Drag Torque | 15-25 Ncm |
| Weight | 0.25-0.5 kg |
| Port | Shanghai;Ninbo |
| Delivery Time | 7-10 days |
Features
Type ASK is a roller type freewheel bearing supported by two rows of roller bearings. It is a self-contained dust protected unit, delivered grease lubricated. Nominal outside dimensions are the same as a 60.series bearing. Torque transmission must be ensured by a press fit on both the inner and outer race. Because of this press fit, the standard radial clearance is C4. The interference tolerances are on the freewheel dimensions, allowing a direct mounting in a standard series 60.
bearing location: Shaft tolerance should be h6 or j6 The outer race should be pressed into a rigid housing to K6 tolerance. Radial bearing load capacities are given in the table. Type ASK freewheels can not accept axial loading. In cases of such loads, thrust bearings must be provided.

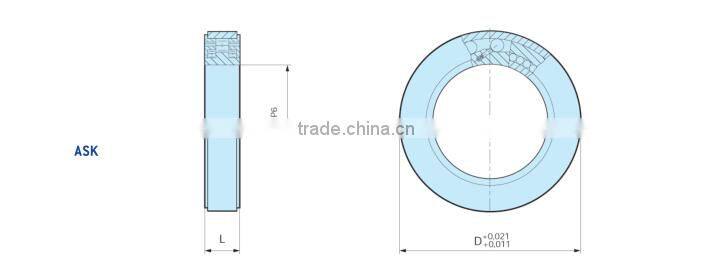

Different Sizes Of ASK Series For Your Reference
Type | Size | Bearing Series |
|
| Outside Diameter | Height | Bearing loads | Weight | Drag torque | |
Dynamic | static | |||||||||
ASK | Dp6 (mm) |
| TKN1) (Nm) | nmax (min-1) | D (mm) | L (mm) | C (kN) | C0 (kN) |
(kg) | TR (Ncm) |
40 | 6008 | 72 | 3500 | 68 | 15 | 16 | 20.6 | 0.25 | 15 | |
50 | 6010 | 125 | 2200 | 80 | 16 | 19.6 | 23.5 | 0.34 | 20 | |
60 | 6012 | 250 | 1800 | 95 | 18 | 25.3 | 35.1 | 0.5 | 25 | |
Mounting
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Our Advantages
1. Advanced producing equipment.
2. Strict requirement for the raw material
3. Complete&perfect process flow
4. Good quality of each batch of the product
5. Different grades of price for different quality
Q: Why do we choose your company?
A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples of one way clutch bearing to check quality first.
If you have any needs,pls contact me at any time!
