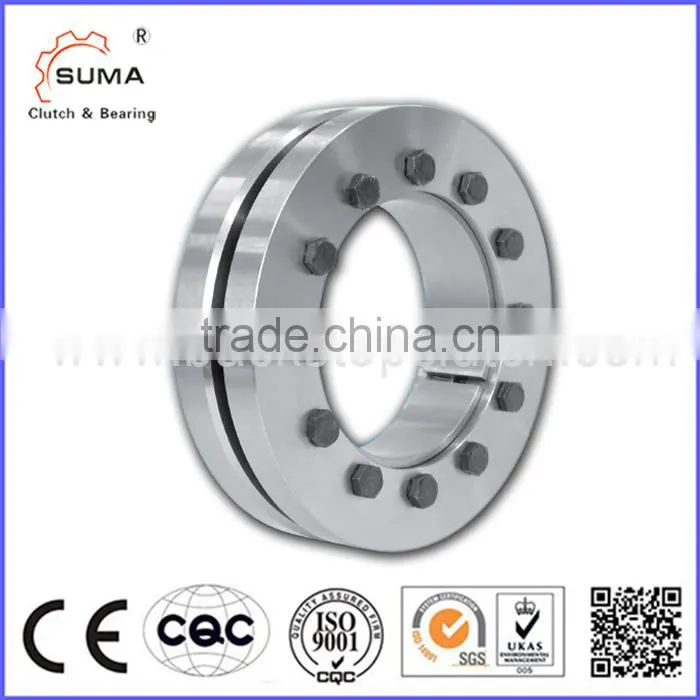

non-key connection stainess steel shaft locking assembly RLK603
| non-key connection stainess steel shaft locking assembly RLK603 | ||
| Details | ||
| Model | RLK603 locking assembly | |
| Material | steel | |
| Type | locking assembly | |
| Inner Diameter | 14mm | |
| Outer Diameter | 38mm | |
| Weight | 0.1kg | |
| Width | 15mm | |
| Transmissible torque |
25Nm | |
| axial force | 5kN | |
Features
locking assembly RLK 603
three-part design
high transmissible torques
1. High transmissible torques
2. Tightening of clamping screws with a torque wrench
3. locking assembly Easy disassembly without jacking screws
4. Centres the hollow shaft or hub to the shaft
5. locking assembly For hollow shafts or hubs with outer diameters of 14 mm up to 360 mm
specifications
| Dimensions of locking assembly | Transmissible torque or axial force(Nm) | Technical Data Clamping screws | Weight | Article number | |||||||||
| (mm) | |||||||||||||
| size | D | L1 | L2 | dw* | M | F | Tightening torque MS Nm | Number | Size | Length | kg | ||
| d | B | ||||||||||||
| 240 | 405 | 121 | 92 | 108 | 170 | 119 000 | 1400 | 490 | 12 | M 20 | 80 | 62,0 | 4200-240301-000000 |
| 180 | 138000 | 1530 | |||||||||||
| 190 | 156000 | 1 640 | |||||||||||
| 260 | 430 | 133 | 103 | 120 | 190 | 161000 | 1 690 | 490 | 14 | M 20 | 90 | 77,0 | 4200-260301-000000 |
| 200 | 184000 | 1840 | |||||||||||
| 210 | 204 000 | 1 940 | |||||||||||
| 280 | 460 | 147 | 114 | 134 | 210 | 213000 | 2 020 | 490 | 16 | M 20 | 100 | 97,0 | 4200-280301-000000 |
| 220 | 240000 | 2180 | |||||||||||
| 230 | 269 000 | 2 330 | |||||||||||
| 300 | 485 | 155 | 122 | 142 | 230 | 274000 | 2380 | 490 | 18 | M 20 | 100 | 116,0 | 4200-300301-000000 |
| 240 | 296000 | 2460 | |||||||||||
| 245 | 316 000 | 2 570 | |||||||||||
| 320 | 520 | 155 | 122 | 142 | 240 | 310 000 | 2 580 | 490 | 20 | M 20 | 100 | 133,0 | 4200-320301-000000 |
| 250 | 340000 | 2720 | |||||||||||
| 260 | 373 000 | 2 860 | |||||||||||
| 340 | 570 | 169 | 134 | 156 | 250 | 381 000 | 3 040 | 490 | 24 | M 20 | 110 | 183,0 | 4200-340301-000000 |
| 260 | 412000 | 3160 | |||||||||||
| 270 | 453 000 | 3 350 | |||||||||||
| 360 | 590 | 175 | 140 | 162 | 280 | 453 000 | 3 230 | 490 | 24 | M 20 | 110 | 186,0 | 4200-360301-000000 |
| 290 | 495000 | 3410 | |||||||||||
| 295 | 517000 | 3500 | |||||||||||
Q: Why do we choose your company?
A: We always insist quality firstly. We have our bearing factory, therefore we have advantage in quality control and price.
Q:What is the delivery time?
A: Most of the bearing we have locking assembly in stock. For small quantity, we will arrange delivery within 3 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send locking assembly samples to check quality first.
