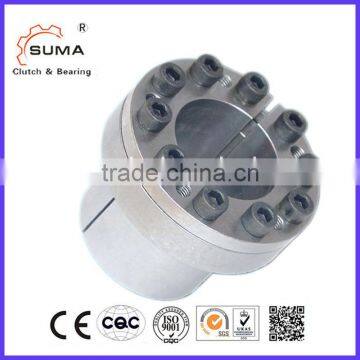

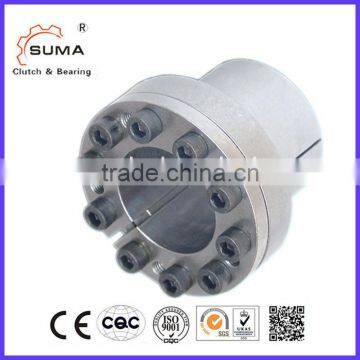

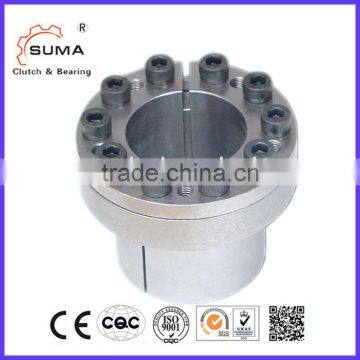

RLK110 Z11 Self Centering Locking Device Keyless Assembly
Features of Keyless assembly
• Centres the shaft to the hub
• High transmissible torques
• Radial flat height is particularly suitable for small hub outer diameters
• No axial displacement between hub and shaft during clamping procedure due to fixed backstop point
• For shaft diameters between 6 mm and 120 mm
Product name |
Shaft locking device |
Model |
RLK110 |
Material |
GCr15 |
Inner Diameter |
20mm |
Outer Diameter |
47mm |
Thickness |
48mm |
Weight |
0.4kg |
Application |
Low space equipment |
Package |
Wooden box, or customizable |
Payment terms |
TT, L/C, D/A, D/P, Western Union, Paypal |
Delivery time |
7-10 days after order confirmed |
Technical Parameter of shaft-hub locking device
Tolerances
• h8 for shaft diameter d
• H8 for hub bore D
Surfaces
Average surface roughness at the contact
surfaces between the shaft and the hub bore: Ra ≤ 3,2 μm.
Materials
The following apply to the shaft and the hub:
• E-module ≥ 170 kN/mm2
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the shaft-hub locking device ?
A: Usually shaft-hub locking device are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of shaft-hub locking device from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the shaft-hub locking device in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
