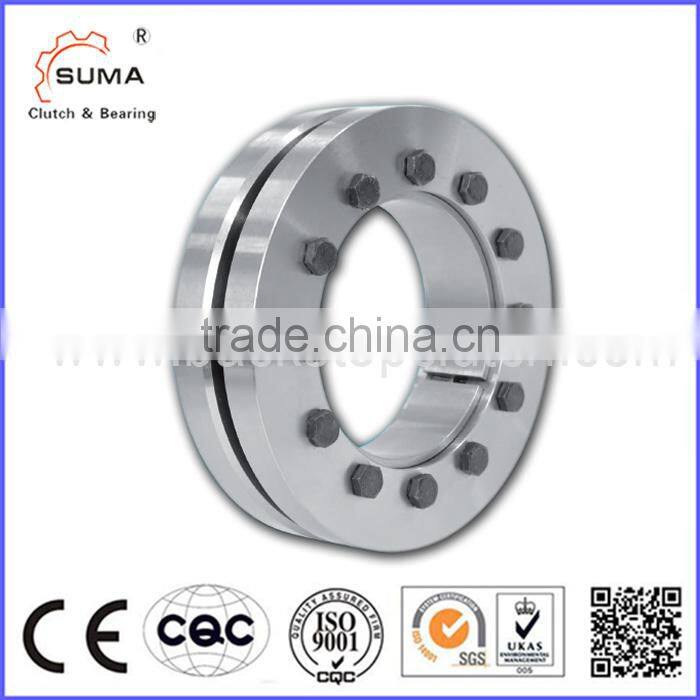

RLK603 Universal Coupling Assembly Without Pin Joint

Name: RLK603 Universal Coupling Assembly Without Pin Joint
Brand: Suma
SKU: 140279848
Availability: InStock

US$ 5 - 10 MOQ: 1 Piece

Key Specifications

Structure:

Disc

Flexible or Rigid:

Flexible

Standard or Nonstandard:

Standard

Changzhou Suma Precision Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai; Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Structure Disc

Flexible or Rigid Flexible

Standard or Nonstandard Standard

Material Steel

Brand Name Suma

Place of Origin Jiangsu, China

Model Number RLK 603

RLK603 locking assembly sheath without pin joint

Product Description

RLK603 locking assembly sheath without pin joint
Details
Model		RLK603
Material		steel
Type		shrink discs
Inner Diameter		14mm
Outer Diameter		38mm
Weight		0.1kg
Width		15mm
Transmissible torque		25Nm
axial force		5kN

Features

Shrink Discs RLK 603

three-part design

high transmissible torques

Features

1. High transmissible torques

2. Tightening of clamping screws with a torque wrench

3. Easy disassembly without jacking screws

4. Centres the hollow shaft or hub to the shaft

5.For hollow shafts or hubs with outer diameters of 14 mm up to 360 mm

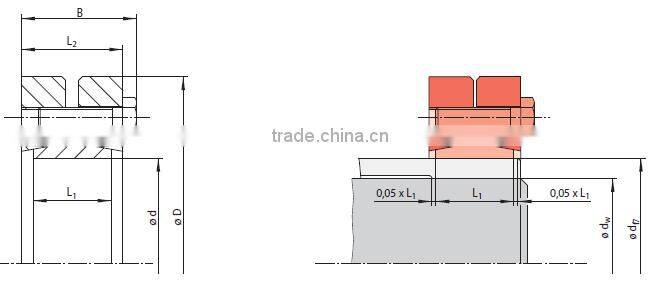

specifications

Dimensions						Transmissible torque or axial force(Nm)		Technical Data Clamping screws				Weight	Article number
(mm)
size	D		L₁	L₂	dw*	M	F	Tightening torque M_S Nm	Number	Size	Length	kg
d		B

115	185	56	39	50	80	8 500	210	59	9	M 10	40	6,0	4200-115301-000000
					85	9300	210
					90	11 300	250
120	215	58	42	52	80	10 500	260	59	12	M 10	40	9,0	4200-120301-000000
					85	12100	280
					90	14 400	320
125	215	58	42	52	85	11 000	250	59	12	M 10	40	8,7	4200-125301-000000
					90	13000	280
					95	15 000	310
130	215	58	42	52	90	12 000	260	59	12	M 10	40	8,3	4200-130301-000000
					95	14400	300
					100	17 000	340
140	230	68	46	60	95	14 900	310	100	10	M 12	45	10,7	4200-140301-000000
					100	17000	340
					105	20 000	380
155	265	72	50	64	105	20 000	380	100	12	M 12	50	16,0	4200-155301-000000
					110	23000	410
					115	26 000	450
160	265	72	50	64	110	21 900	390	100	12	M 12	50	15,4	4200-160301-000000
					115	25200	430
					120	28600	470
165	290	81	56	71	115	31 500	540	250	8	M 16	60	21,7	4200-165301-000000
					120	35600	590
					125	39 000	620
170	290	81	56	71	120	31 700	520	250	8	M 16	60	21,1	4200-170301-000000
					125	35800	570
					130	40 000	610
175	300	81	56	71	125	34 500	550	250	8	M 16	60	22,7	4200-175301-000000
					130	38900	590
					135	43 400	640
180	300	81	56	71	130	36 700	560	250	8	M 16	60	22,0	4200-180301-000000
					135	41 100	600
					140	45 700	650
185	330	96	71	86	135	49 200	720	250	10	M 16	65	35,0	4200-185301-000000
					140	54600	780
					145	60 400	830
190	330	96	71	86	140	51 900	740	250	10	M 16	65	34,1	4200-190301-000000
					145	57400	790
					150	63 200	840
195	350	96	71	86	140	61 600	880	250	12	M 16	65	39,6	4200-195301-000000
					150	74500	990
					155	81 300	1 040
200	350	96	71	86	150	71 200	940	250	12	M 16	65	38,7	4200-200301-000000
					155	77900	1000
					160	84 700	1 050
220	370	114	88	104	160	90 700	1130	250	15	M 16	80	50,0	4200-220301-000000
					165	98600	1190
					170	106000	1240
