| No axial displacement expansion sleeve RLK 131 locking device | ||
| Details | ||
| Model | RLK131 | |
| Material | steel | |
| Type | cone clamping element | |
| Inner Diameter | 20mm | |
| Outer Diameter | 47mm | |
| Weight | 0.4kg | |
| Width | 48mm | |
| Transmissible torque |
320Nm | |
| axial force | 32kN | |
Features
1. Centres the shaft to the hub
2.No axial displacement between hub and shaft during clamping procedure due to fixed backstop point
3.For shaft diameters between 20 mm and 180 mm

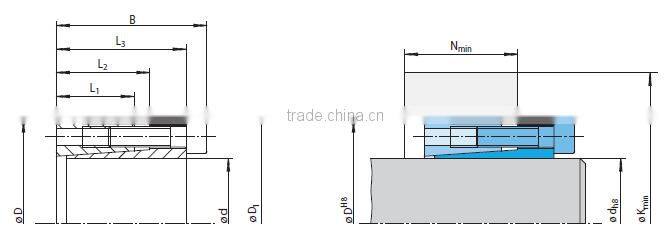

specifications
Application example
Backlash free connection of a cam disc to the drive shaft in a stepping gear in the material
feed mechanism of a paper processing machine with a Cone Clamping Element RLK 131.
