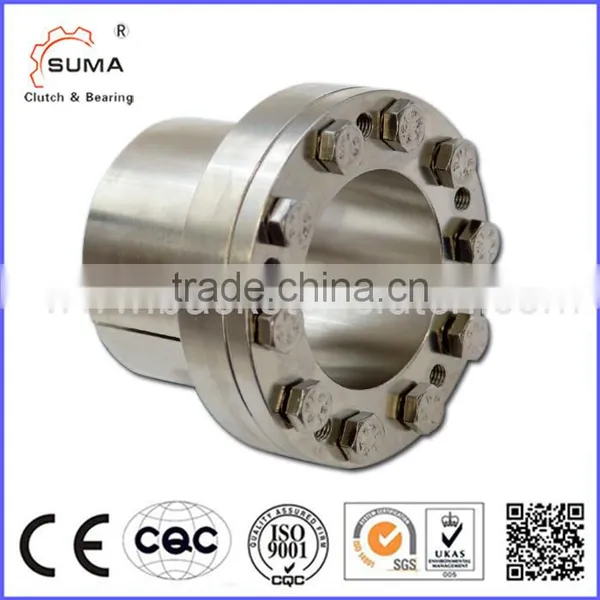

Corrosion Protected Locking Assembly Cone Clamping Elements RLK 110K

Corrosion Protected Locking Assembly Cone Clamping Elements RLK 110K thumbnail-1
Corrosion Protected Locking Assembly Cone Clamping Elements RLK 110K photo-1
US$ 5 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Structure:
Disc
Flexible or Rigid:
Flexible
Standard or Nonstandard:
Standard
Contact Supplier Request Quote Chat Now
Changzhou Suma Precision Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai; Ningbo for locking assembly
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Structure Disc
Flexible or Rigid Flexible
Standard or Nonstandard Standard
Material Steel
Brand Name Suma
Place of Origin Jiangsu, China
Model Number RLK110K

 Corrosion Protected Locking Assembly Cone Clamping Elements RLK 110K

Product Description

Corrosion Protected Locking Assembly Cone Clamping Elements RLK 110K



     Corrosion Protected Cone Clamping Elements RLK 110K
Details
Model RLK110K
Material steel
Type cone clamping element
Inner Diameter 19mm
Outer Diameter 49mm
Weight 0.3kg
Width 41mm
Transmissible torque
 180Nm
axial force 19kN



Features

1. Centres the shaft to the hub

2. All parts 35 μm chemically nickel-coated for high corrosion resistance pursuant to

DIN 50021 (neutral salt spray test)

3. High transmissible torques

4.Radial flat height is particularly suitable for small hub outer diameters

5.No axial displacement between hub and shaft during clamping procedure due to fixed backstop point.

6. For shaft diameters between 19 mm and 60 mm



Specifications

 Corrosion Protected Locking Assembly Cone Clamping Elements RLK 110K







size Yield strength Re of the hub material [N/mm2]

TranS

missible torque or axial force

 Contact  pressure at Clamping screws Weight article number
  200 torque or 500   Shaft Hub torque nuber Size Length
d D axial force B L1 L2 L3 Kmin Nmin Kmin Nmin Kmin Nmin M F PW Pn Ms
mm mm mm mm mm mm mm mm mm mm mm mm mm Nm kN N/mm2 N/mm2 Nm     mm kg
19 27 49 41 18 31 38 64 27 45 23 37 21 180 19 164 116 15 4 M 6 18 0,3 4206-019001-A08101
20 28 49 41 18 31 38 63 27 45 22 38 21 190 19 156 111 15 4 M 6 18 0,3 4206-020001-A08101
22 32 54 48 25 38 45 53 30 43 28 39 27 200 19 102 70 15 4 M 6 18 0,3 4206-022001-A08101
25 34 56 48 25 38 45 54 30 45 28 41 27 230 19 90 66 15 4 M 6 18 0,4 4206-025001-A08101
28 39 61 49 25 38 45 72 33 56 29 49 28 390 28 120 86 15 6 M 6 18 0,5 4206-028001-A08101
30 41 62 49 25 38 45 72 33 58 29 51 28 420 28 112 84 15 6 M 6 18 0,5 4206-030001-A08101
32 43 65 56 30 43 50 89 37 67 31 54 33 590 37 117 87 15 8 M 6 18 0,5 4206-032001-A08101
35 47 69 56 30 43 50 82 39 66 35 58 33 650 37 107 80 15 8 M 6 18 0,6 4206-035001-A08101
38 50 72 56 30 43 50 83 38 68 35 61 33 710 37 99 75 15 8 M 6 18 0,6 4206-038001-A08101
40 53 75 56 30 43 50 85 38 71 35 64 33 740 37 94 71 15 8 M 6 18 0,7 4206-040001-A08101
45 59 85 71 40 57 65 114 54 87 47 75 44 1550 37 114 87 35 8 M 8 22 1,2 4206-045001-A08101
50 65 92 76 45 62 70 127 61 96 53 83 50 2150 69 114 88 35 10 M 8 22 1,3 4206-050001-A08101
55 71 98 81 50 67 75 121 63 97 57 87 54 2400 87 93 72 35 10 M 8 22 1,5 4206-055001-A08101
60 77 104 81 50 67 75 124 62 103 57 92 54 2600 87 85 67 35 10 M 8 22 1,7 4206-060001-A08101



Application example

Backlash free connection of an eccentric wheel to the drive shaft of a packaging machine with

a Cone Clamping Element RLK 110 K. The turning motion is transmitted into translatory motion

by a driving rod that is protected from overload by a force limiter.



Corrosion Protected Locking Assembly Cone Clamping Elements RLK 110K

Certifications

Corrosion Protected Locking Assembly Cone Clamping Elements RLK 110K

Company Information

Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology. Corrosion Protected Locking Assembly Cone Clamping Elements RLK 110K

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

Our Advantages
1. Advanced producing equipment.
2. Strict requirement for the raw material
3. Complete&perfect process flow
4. Good quality of each batch of the product
5. Different grades of price for different quality

Our Services

Pre-sale service:

We will delivery the goods in 10 days after your order is confirmed.

After sale service:

Our factory provide technical assistance to support every doubt during usage and maintenance.

Production&Text

Corrosion Protected Locking Assembly Cone Clamping Elements RLK 110K

Packing&Shipping

Corrosion Protected Locking Assembly Cone Clamping Elements RLK 110K

FAQ

Q: Why do we choose your company?

A: We always insist quality first. We have our bearing factory, therefore we have advantage in quality control and price of one way clutch bearing.



Q:What is the delivery time?

A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 15 days.



Q: What is your payment term?

A: Our payment term include L/C, T/T, Western Union, Paypal etc.



Q: Can you send bearing samples first?

A: Yes, we can send bearing samples of one way clutch bearing to check quality first.

If you have any needs,pls contact me at any time!
