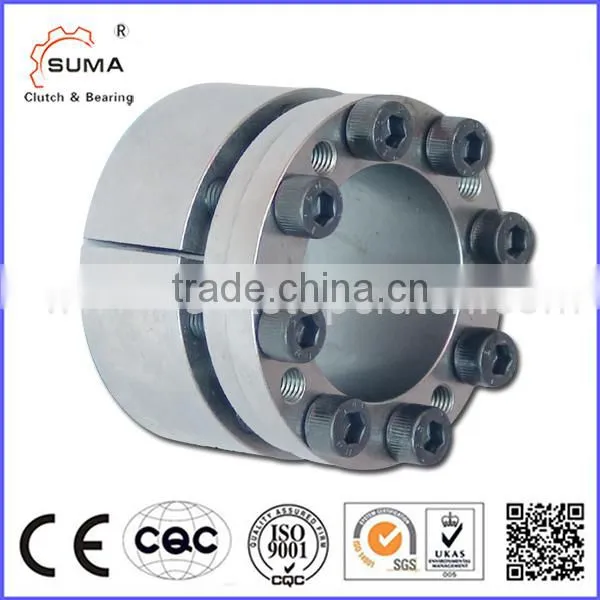

Help CenterVery High Transmissible Torque Cone Clamping Elements RLK 130
Related Products
-
Cone Clamping Elements RLK 131made in ChinaUS$ 5 - 10MOQ: 1 Piece -
Very High Transmissiable Torques RLK130 Clamping Elements ManufacturerUS$ 10 - 20MOQ: 1 Piece
-
China SUMA RLK110 Clampling Elements Shaft Coupling ManufacturerUS$ 10 - 20MOQ: 1 Piece
-
Made in China Keyless Locking Device RLK110 With Radial Flat HeightUS$ 10 - 20MOQ: 1 Piece
-
RLK RCK China Supplier Locking Assembly Elements RLK110KUS$ 10 - 20MOQ: 1 Piece
| Very high transmissible torque cone clamping elements RLK 130 | ||
| Details | ||
| Model | RLK130 | |
| Material | steel | |
| Type | cone clamping element | |
| Inner Diameter | 20mm | |
| Outer Diameter | 47mm | |
| Weight | 0.4kg | |
| Width | 48mm | |
| Transmissible torque |
530Nm | |
| axial force | 53kN | |
Features
1. Centres the shaft to the hub
2. All parts 35 μm chemically nickel-coated for high corrosion resistance pursuant to DIN 50021 (neutral salt spray test)
3. High transmissible torques
4.Radial flat height is particularly suitable for small hub outer diameters
5.No axial displacement between hub and shaft during clamping procedure due to fixed backstop point.
6. For shaft diameters between 19 mm and 60 mm
specifications
Application example
Backlash free connection of an eccentric lift unit and a sprocket to the drive shaft of a hoisting
device using Cone Clamping Elements RLK 130. The eccentric force applied to the eccentric lift
unit results in the Cone Clamping Element trans mitting not only torque, but also forces and bending moments.
Q: Why do we choose your company?
A: We always insist quality firstl. We have our bearing factory, therefore we have advantage in quality control and price.
Q:What is the delivery time?
A: Most of the bearing we have stock. For small quantity, we will arrange delivery within 3 days.
Q: What is your payment term?
A: Our payment term include L/C, T/T, Western Union, Paypal etc.
Q: Can you send bearing samples first?
A: Yes, we can send bearing samples to check quality first.
