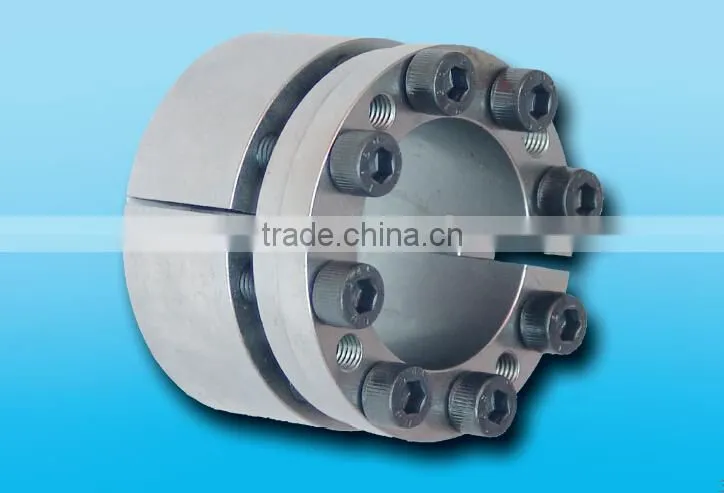

Very High Transmissiable Torques RLK130 Clamping Elements Manufacturer
Features of clamping elements
• Centres the shaft to the hub
• Very high transmissible torques
• For shaft diameters between 20 mm and 180 mm
Product name |
Shaft locking device |
Model |
RLK130 |
Material |
GCr15 |
Inner Diameter |
20mm |
Outer Diameter |
47mm |
Thickness |
48mm |
Weight |
0.4kg |
Application |
Low space equipment |
Package |
Wooden box, or customizable |
Payment terms |
TT, L/C, D/A, D/P, Western Union, Paypal |
Delivery time |
7-10 days after order confirmed |
Technical Parameter of clamping elements
Tolerances
• h8 for shaft diameter d
• H8 for hub bore D
Surfaces
Average surface roughness at the contact
surfaces between the shaft and the hub bore: Ra ≤ 3,2 μm.
Materials
The following apply to the shaft and the hub:
• E-module ≥ 170 kN/mm2
Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.
We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.
Pre-sale service:
We will delivery the goods in 10 days after your order is confirmed.
After sale service:
Our factory provide technical assistance to support every doubt during usage and maintenance.
Q: How do you pack the clamping elements?
A: Usually clamping elements are packed in the wooden box. It can be done as your specfic demands.
Q: Can i get the samples of clamping elements from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the clamping elements in time?
A: Credit always ranks the top on the list. We will absolutely deliver the goods in 10 days after your order is confirmed.
