Specifications

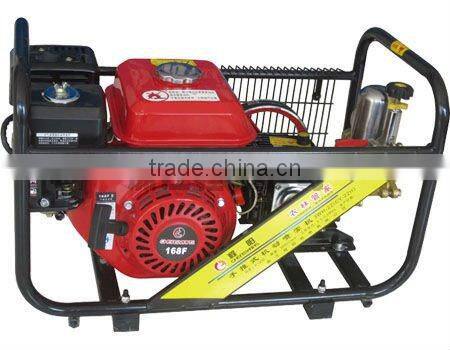

Strecher Type Gasoline Power Sprayer1.Control safe and reliable
2.Easy operation
3.Long life
4.High efficiency
CY series power sprayer use advanced OHV engines to ensure effective and economical combustion and are renowned for low noise, slight vibration, light weight and small size. With aluminum alloy self-suction pump body and cast iron propeller/ turbine cover, the pump is endowed with greater endurance. Using international standard of PF screw threads, the pump has outstanding compatibility
and can be used together with various pipes.
CY -22D sprayer Stable Pressure,High Indensity and quality,low noise,no leakage,100% tested one by one before packaging,Machine design light weight. Easy to use ,good performance and should be introduced.
For double people, stretch sprayer connects to customized liquid tank and has a long range covery,easy moving in hill region.
Model:CY-22D
Plunger pump:CY-22
output:15-25L/min
speed:800-1000r/min
range:10m
engine:168F
Engine power:3.1kw
Dimension:141*32*46mm
fuel:90# over gasoline
lubricating oil: engine:4 stroke oil /plunger pump:30# lubricating oil
weight: 29kgs
Engine: 168F
1-Cylinder,4-stroke,air-cooled
bore and troke is 68*54mm
Max Power:4.5KW
Rated power: 4.1KW
Displacement:163cc
Oil Tank Capacity:0.6L
Start System: recoil
Fuel oil comsumption ratio:less than 395g/kw.h
Oil Capacity mixture ratio of petroleum and engine:25:1
Carburettor:Float-film Type
N.W.: 17 KGS
Plunger Pump:CY-22
Output:15~25L/Min
Pressure:2~3.5
Diameter Stroke:3~22*16
Speed:800~1000R/min
Engnine:2~3KW
Weight:8.5kg
Measures:31*23*28cm
Accessory: PVC HOSE
Packing term: Plywood box
20'GP loading QTY: 135 Sets
40'GP loading QTY: 270 Sets
Delivery Term: EXW,FOB,C&F,CIF
Payment Term: 30% T/T deposit in advance,the balance paid before shipment.
Lead Time: 15-20 days after received order & 30% deposit, or depend on real quantity.
