Help CenterInsecticide Strecher Power Sprayer With Bracket CY-120D
Related Products
-
Agriculture Strecher Type Power-pump CY-DUS$ 100 - 150MOQ: 50 Sets -
Knapsack Battery Power Sprayer CY-20DUS$ 25 - 38MOQ: 80 Sets
-
Gasoline Engine,20L Power Sprayer(CY-708)US$ 50 - 60MOQ: 50 Pieces
-
CY-767 Power Sprayer (gasoline Engine,25L)US$ 50 - 60MOQ: 50 Pieces
-
CY-768 Power Sprayer (Gasoline Engine,25L)US$ 50 - 60MOQ: 50 Pieces
Specifications

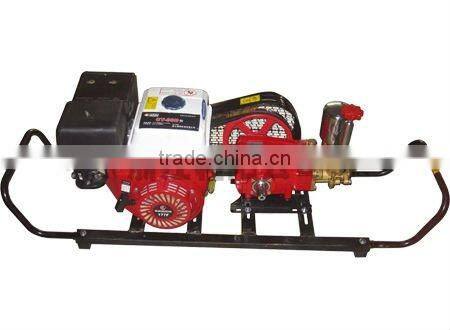

Insecticide Strecher Power Sprayer With Bracket CY-120D1.Control safe and reliable
2.Easy operation
3.Long life
4.High eff
CY series power sprayer use advanced OHV engines to ensure effective and economical combustion and are renowned for low noise, slight vibration, light weight and small size. With aluminum alloy self-suction pump body and cast iron propeller/ turbine cover, the pump is endowed with greater endurance. Using international standard of PF screw threads, the pump has outstanding compatibility
and can be used together with various pipes.
CY -120D sprayer Stable Pressure,High Indensity and quality,low noise,no leakage,100% tested one by one before packaging,Machine design light weight. Easy to use ,good performance and should be introduced.
For double people, stretch sprayer connects to customized liquid tank and has a long range covery,easy moving in hill region.

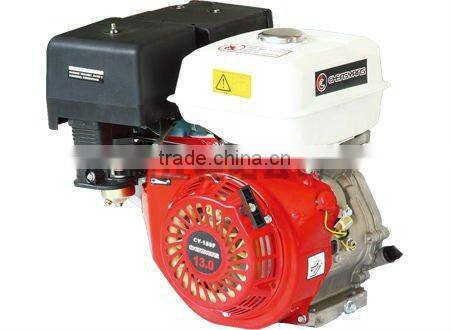

Engine: 188F
1-Cylinder,4-stroke,air-cooled
bore and troke is 88*64mm
Max Power:10KW
Rated power: 9.7KW
Displacement:390cc
Oil Tank Capacity:3.6L
Start System: recoil
Fuel oil comsumption ratio:less than 395g/kw.h
Oil Capacity mixture ratio of petroleum and engine:25:1
Carburettor:Float-film Type
N.W.: 34 KGS

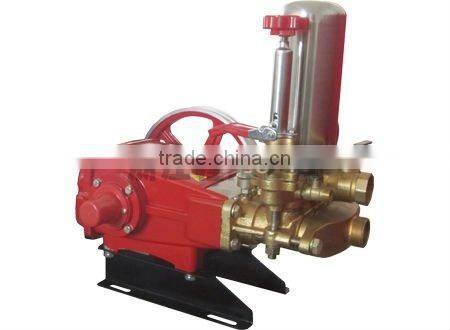

Pump Model:CY-120
Output:100-120L/min
Dia*Stroke:3-38*38mm
Speed:800-1000r/min
Pressure:2-4Mpa
Weight:30.5 kg
Measure:51*40*51cm
Accessory: PVC Hose
Packing term: Plywood box
20'GP loading QTY: 90 Sets
40'GP loading QTY: 185 Sets
Delivery Term: EXW,FOB,C&F,CIF
Payment Term: 30% T/T deposit in advance,the balance paid before shipment.
Lead Time: 15-20 days after received order & 30% deposit, or depend on real quantity.
Following is the the basic process of transaction
Purchase Step
1.Design We supply customerized designs
2.Negotiation The quality,price,material,deliverytime,
payment terms.ect
3.Place Order According your own design or your chose our design
4.Production According customers confirmed detail
5.Delivery Time Delivery cargos by sea or by air,according to
customers request
