Specifications
Gasoline Power Hand-push SprayerEasy operation & reliable performance
Low gasoline consumption
CY series of Hand push power sprayer is quick to start and spray mist and could effectively help you take care of outdoor plants.
CY -30H sprayer Stable Pressure,High Indensity and quality,low noise,no leakage,100% tested one by one before packaging.
hand-push sprayer,gasoline sprayer
1)Suit for home use and irrigation
2)Large volume discharge
3)100% copper
4)Powered by Haige Engine
light weight, low fuel consumption,high efficiency,low noises,slight tremor, easy starting, get to the level of international

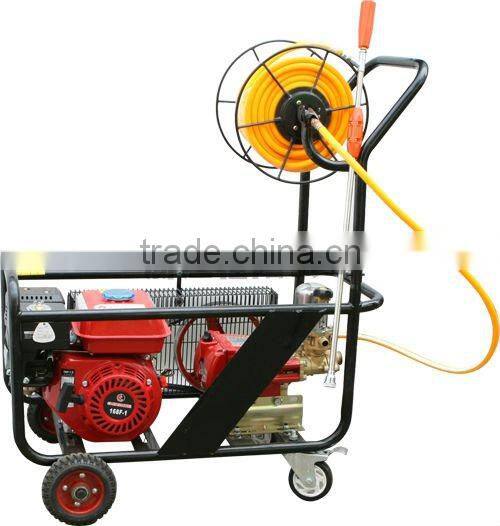

Hand push power sprayer
Model:CY-30H
Plunger pump:CY-30
Output(L/min):20-35
rpm(L/min):800-1000
Spraying pressure(Mpa):2.0-3.5
Range(m):12
Supporting motive force:168F-1(gasoline engine)
Engine power(kw):3.8
Engine speed(r/m):3600
Dinension(cm):91*53*101
Weight(KG):42
Engine: 168F
1-Cylinder,4-stroke,air-cooled
bore and troke is 68*54mm
Max Power:4.5KW
Rated power: 4.1KW
Displacement:163cc
Oil Tank Capacity:0.6L
Start System: recoil
Fuel oil comsumption ratio:less than 395g/kw.h
Oil Capacity mixture ratio of petroleum and engine:25:1
Carburettor:Float-film Type
N.W.: 17 KGS
Pump Model:CY-30
Output:20-25L/min
Dia*Stroke:3-30*20mm
Speed:800-1000r/min
Pressure:2-4Mpa
Weight:12 kg
Measure:40*32* 34cm
Accessory: PVC Hose
Packing term: Plywood box
20'GP loading QTY: 55 Sets
40'GP loading QTY: 115 Sets
Delivery Term: EXW,FOB,C&F,CIF
Payment Term: 30% T/T deposit in advance,the balance paid before shipment.
Lead Time: 15-20 days after received order & 30% deposit, or depend on real quantity.
Following is the the basic process of transaction
Purchase Step
1.Design We supply customerized designs
2.Negotiation The quality,price,material,deliverytime,
payment terms.ect
3.Place Order According your own design or your chose our design
4.Production According customers confirmed detail
5.Delivery Time Delivery cargos by sea or by air,according
customers request
