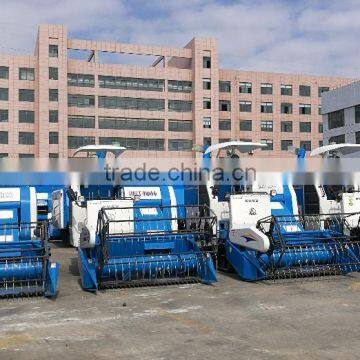

4LZ-4.0B paddy rice and wheat combine harvester
- 40 Set / Sets per Month
- NINGBO SHANGHAI
- T/T
- Sale SEW equivalent parallel-shaft helical gearbox F Series gear box
- F series solid shaft helical gear reducer parallel shaft transmission box
- RV series mini worm gear box
- RV series low RPM turbo worm and gear reducers
- rv Worm and Worm Ger Calculation Industrial Gear Reducer
- NMRV RV 030-130 Series worm and gear wheel speed reducer
Product Details
Condition: | New | Application: | agricultural machinery | Type: | Combine Harvester |
Drive Type: | Gear Drive | Usage: | Grain Harvester | Place of Origin: | Zhejiang, China |
Brand Name: | LIULIN | Model Number: | 4lz-4.0B1 | Dimension(L*W*H): | 5100*2660*2500mm |
Weight: | 3280kg | Certificate: | CE | Warranty: | 1 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
4LZ-4.0B1 rice combine harvester and harvester machine Major advantages:
Thorough threshing
Clear separation
Low grain breakage
High grain cleanness
Good maneuverability in the wet and soft field
Quality engine with sufficient power reserve,low vibration and low noise
main specification | ||||
Type | Track self-propelled harvester | |||
Model | 4LZ-4.0B1 | |||
Havesting Width | mm | 2000 or 2100 or 2300 | ||
Feed | kg/s | 4.0 | ||
Diese Engine | Model | kw | 70 | |
Power | HP | 95 | ||
Rotate Speed | R/min | 2800 | ||
Average oil consumption per hectare | kg/ha | 20-23 | ||
working productivity | ha/h | 0.3-0.5 | ||
weight | big tank/1.0m3 | kg | 3050(big rice tank) | |
Dimension LxWxH(mm) | mm | 5100x2500x2650 | ||
Header | Reel type | eccentic, spring toothed | ||
Reel Diameter | mm | ¢1000 | ||
No.of bars | 5 | |||
Auger type | Spiral toothed | |||
Auger Diameter | mm | ¢480 | ||
Clearance between Auger fingers and bottom platform | mm | 11-15(adjustable) | ||
Cutter knife travel | mm | 76.2 | ||
Conveyer | Type | rake toothed band (rake toothed chain) | ||
linear speed of rake teeth movement | m/s | 5 | ||
Roller | Type | axial flow,rasp-bar | ||
Diameter | mm | ¢550(adjustable) | ||
Length | mm | 1332 | ||
Speed of rotation | R/min | 912 | ||
Concave | type | grid | ||
angle | 238 | |||
clerance between concave and rasp-bar | mm | 7~19 | ||
Sieves | Type | Double sieves+blower+re-thresher | ||
top sieve/area | m2 | 0.81 | ||
bottom sieve/area | m2 | 0.92 | ||
tail sieve area | m2 | 0.22 | ||
Fan | Type | centrifugal,volute | ||
Diameter | mm | ¢360 | ||
Vertical auger | Diameter | mm | ¢125 | |
Horizontal auger | Diameter | mm | ¢125 | |
Grain Tank | m3 | 0.3 or 0.7 | ||
Chassis | Type | Rubber track | ||
Track | mm | 450×90×50 | ||
Gear box | HST with gearbox | |||
Drving speed | m/s(km/h) | 0.476(1.71)~2.635(9.49) | ||
Re-thresher | Type | plank toothed | ||
Rotor diameter/lentgth | mm | 180/1475 | ||
Unloading | Sacked & Auto unloading |
**One of the Top Harvester Manufactuers in China**
We own over 800 workers, and sells more than 15000 sets every year.
We have been focusing on combine harvester for 20 years after foundation from 1994, and now we work more harder to improve our quality and make our customers satisfied.
No matter what size you need, we have several types of harvester will meet your request.
- Middle size: 4LZ-2.0 and 4LZ-2.5 with a cutting width of 2000mm and 2100mm
- Big size: 4LZ-3.0 with a cutting width of 2580mm
- New model: 4LZ-4.0A1 which will surely make you satisfied with the grain cleaning
- New model: 4LZ-4.0B1 which will surely make you satisfied with the grain cleaning
(Pls click the picture to watch the video of our factory)
Payment Terms and Service | ||
Terms | T/T 30% deposit and 70% balance before the shipment, and we will deliver the machine in 15 days after the receipt of the deposit | |
Service | Oversea service is available, Any order over 6 sets, we can send our engineer to your side, and for agencies, if you need, our engineer can stay at your side for 2 or more months every year |
Packing and Shipment | ||
Model. | 20FCL Container | 40HQ Container |
4LZ-1.8 | 1 Set | 3 Sets |
4LZ-2.0(2m) | 1 Set | 3 Sets |
4LZ-2.5 | None | 2 Sets |
4LZ-3.0 | None | 2 Sets |
4LZ-2.0B | 1 Sets | 2 Sets |
Tiller | 1 Sets | 3 Sets |
A glance at our factory
Show in Foreign Countries
Certificate
Contact Us
- Zhejiang Liulin Agricultural Machinery Co., Ltd.
- Contact nameMark Ma
- Phone0086-0576-13777662368
- AddressNo. 399, Binfu Road, Economic Development Zone
