Agricultural Machines Rice Combine Harvester,Small Combine Harvester

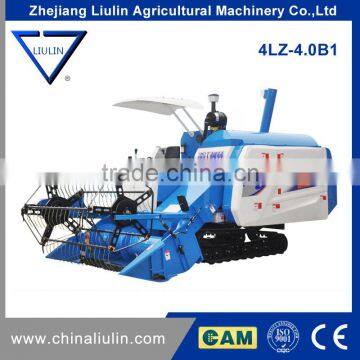

Agricultural Machines Rice Combine Harvester,Small Combine Harvester photo-1
Agricultural Machines Rice Combine Harvester,Small Combine Harvester photo-2
Agricultural Machines Rice Combine Harvester,Small Combine Harvester photo-3
Agricultural Machines Rice Combine Harvester,Small Combine Harvester photo-4
Agricultural Machines Rice Combine Harvester,Small Combine Harvester photo-5
Agricultural Machines Rice Combine Harvester,Small Combine Harvester photo-6
US$ 12,000 - 13,000 MOQ: 3 Sets
Key Specifications
Get Latest Price
Condition:
New
Application:
Grain Harvester
Type:
Combine Harvester
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Grain Harvester
Type Combine Harvester
Drive Type Gear Drive
Usage Grain Harvester
Place of Origin Zhejiang, China
Brand Name LIULIN
Model Number 4LZ-4.0B1
Dimension(L*W*H) 5100*2500*2650
Weight 2950KG
Certificate Other, CE/ISO9001:2000,CAM
Warranty Contract
After-sales Service Provided Engineers available to service machinery overseas

 Agricultural Machines Rice Combine Harvester,Small Combine Harvester

 Agricultural Machines Rice Combine Harvester,Small Combine Harvester
Agricultural Machines Rice Combine Harvester,Small Combine Harvester
Product Description in agri machinery

Major advantages:
Thorough threshing
Clear separation
Low grain breakage
High grain cleanness
Good maneuverability in the wet and soft field
Quality engine with sufficient power reserve,low vibration and low noise





main specification
Type Track self-propelled harvester
Model 4LZ-4.0B1
Havesting Width mm 2000 or 2100 or 2300
Feed kg/s 4.0
Diese Engine Model kw 70
Power HP 95
Rotate Speed R/min 2800
Average oil consumption per hectare kg/ha 20-23
working  productivity ha/h 0.3-0.5
weight big  tank/1.0m3 kg 3050(big rice tank)
Dimension LxWxH(mm) mm 5100x2500x2650
Header Reel type   eccentic, spring toothed
Reel Diameter mm ¢1000
No.of bars   5
Auger type   Spiral toothed
Auger Diameter mm ¢480
Clearance between Auger fingers and bottom platform mm 11-15(adjustable)
Cutter knife travel mm 76.2
Conveyer Type   rake toothed band (rake toothed chain)
linear speed of rake teeth movement m/s 5
Roller Type   axial flow,rasp-bar
Diameter mm ¢550(adjustable)
Length mm 1332
Speed of rotation R/min 912
Concave type   grid
angle   238
clerance between concave and rasp-bar mm 7~19
Sieves Type   Double sieves+blower+re-thresher
top sieve/area m2 0.81
bottom sieve/area m2 0.92
  tail sieve area m2 0.22
Fan Type   centrifugal,volute
Diameter mm ¢360
Vertical auger Diameter mm ¢125
Horizontal auger Diameter mm ¢125
Grain Tank m3 0.3 or 0.7
Chassis Type   Rubber track
Track mm 450×90×50
Gear box   HST with gearbox
Drving speed m/s(km/h) 0.476(1.71)~2.635(9.49)
Re-thresher Type   plank toothed
Rotor diameter/lentgth mm 180/1475
Unloading     Sacked & Auto unloading



Hot Sale in liulin brand !! Mini Rice and Wheat Grain Combine Harvester- 2M harvest width with 82HP with Big grain tank

                          (Mobile: 0086-18968527259 )



Our factory is one of biggest and professional producer for self-propelled combine harvester in China. with more than 20 years experience in manufacture combine harvester and gain high reputation from our customers all over the world. we make sure to supply excellent combine harvester with high quality and competitive price. what's more, the best after-sale service is also avialable.





1. Brief introduce combine harvester



1) Our gear box is :6+6   ( china famours brand)



YZ21-B series gearbox with large output power, strong carrying capacity, reliable steering and braking, compact   structure and easy to operate. Which is adaptable for below 2.5m high-power combine harvester .



2) Liulin brand: 4GZ60HST( this gearbox is our company's making. it is very good for china)

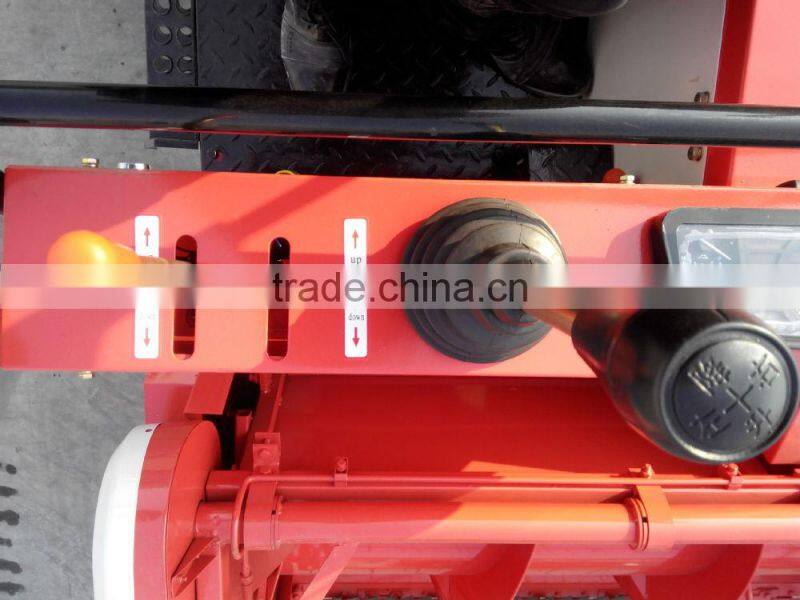

(2) two levers operation or HST operation : easy to perate and more economical.



 Agricultural Machines Rice Combine Harvester,Small Combine Harvester



3) Large power ( we fix kunming-yunnei brand,china famous brand)







Agricultural Machines Rice Combine Harvester,Small Combine Harvester



4)China famour brand, hangzhou brand track







5) unloading auguer by hydraulic, now it is very useful for farmer.

 Agricultural Machines Rice Combine Harvester,Small Combine Harvester



Agricultural Machines Rice Combine Harvester,Small Combine Harvester

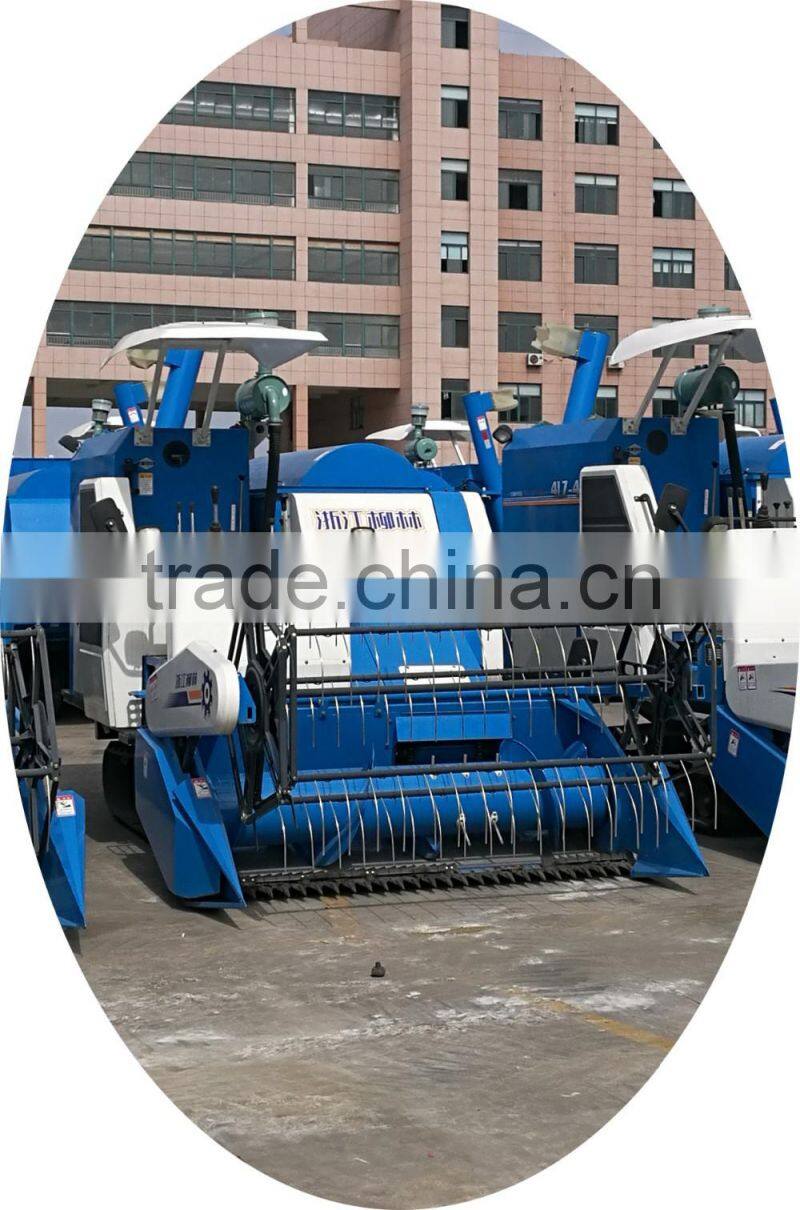

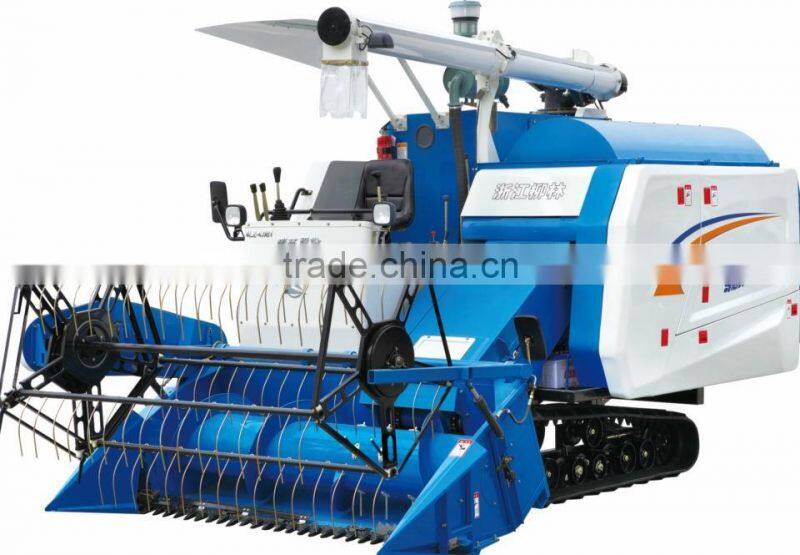

   6)  multi-angle of product:  Combine Harvester



 Agricultural Machines Rice Combine Harvester,Small Combine Harvester

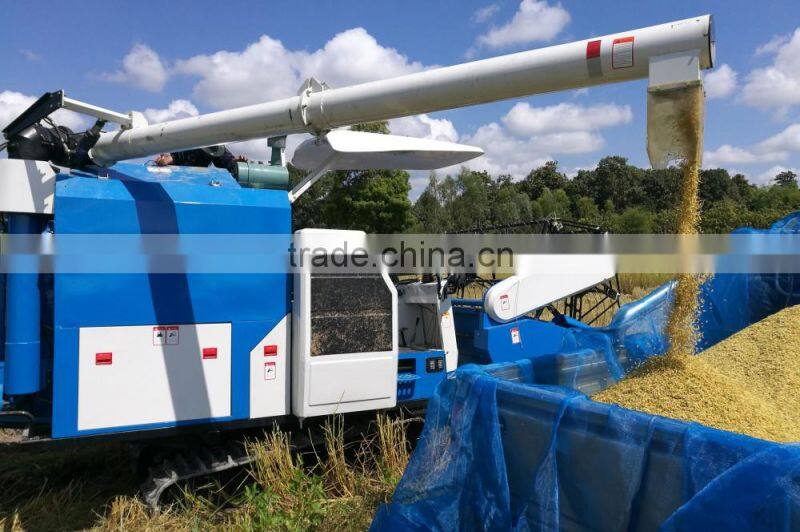

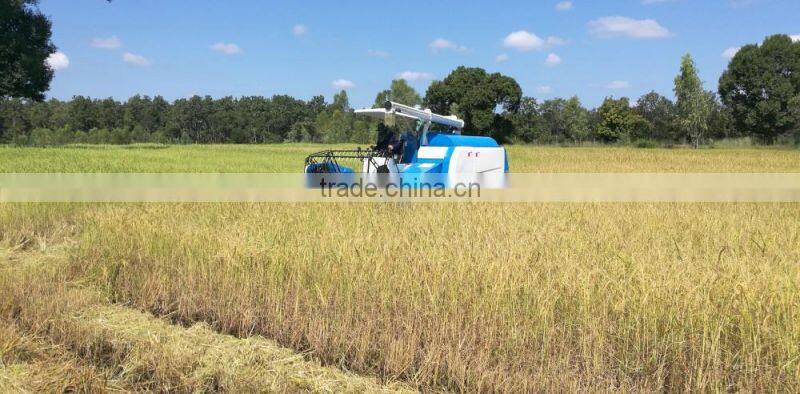

 2. Working Show

 Agricultural Machines Rice Combine Harvester,Small Combine Harvester

Agricultural Machines Rice Combine Harvester,Small Combine Harvester

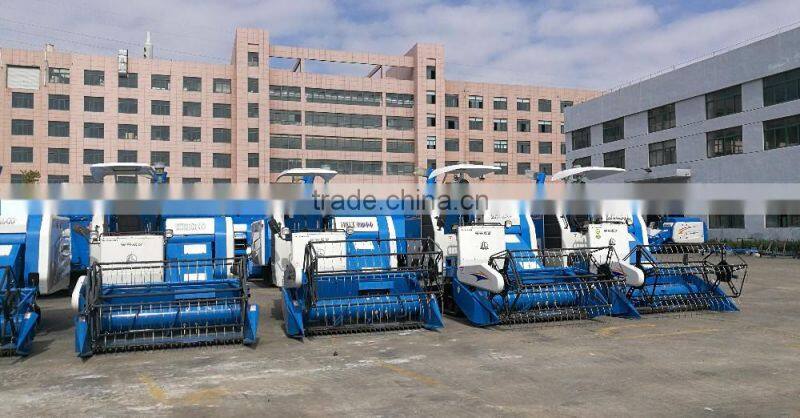

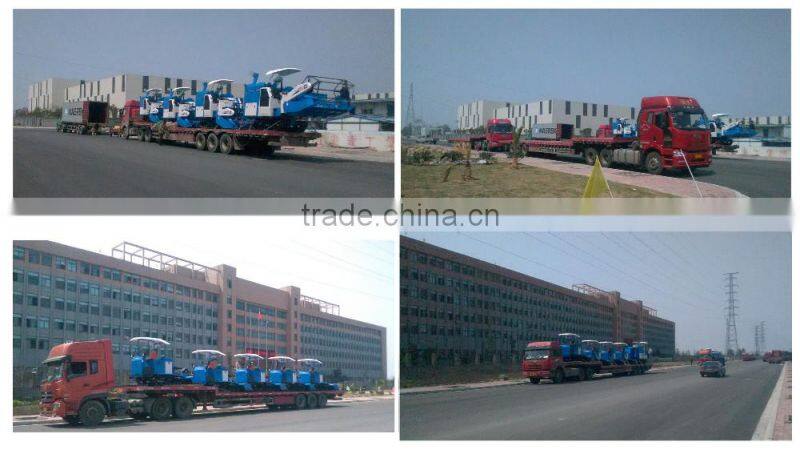

3.Packinaing Show

 Agricultural Machines Rice Combine Harvester,Small Combine Harvester

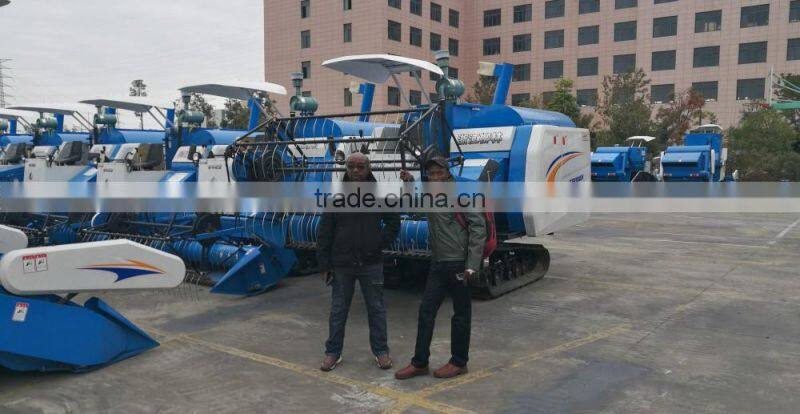

4.Exhibition Show

 Agricultural Machines Rice Combine Harvester,Small Combine Harvester

Agricultural Machines Rice Combine Harvester,Small Combine Harvester

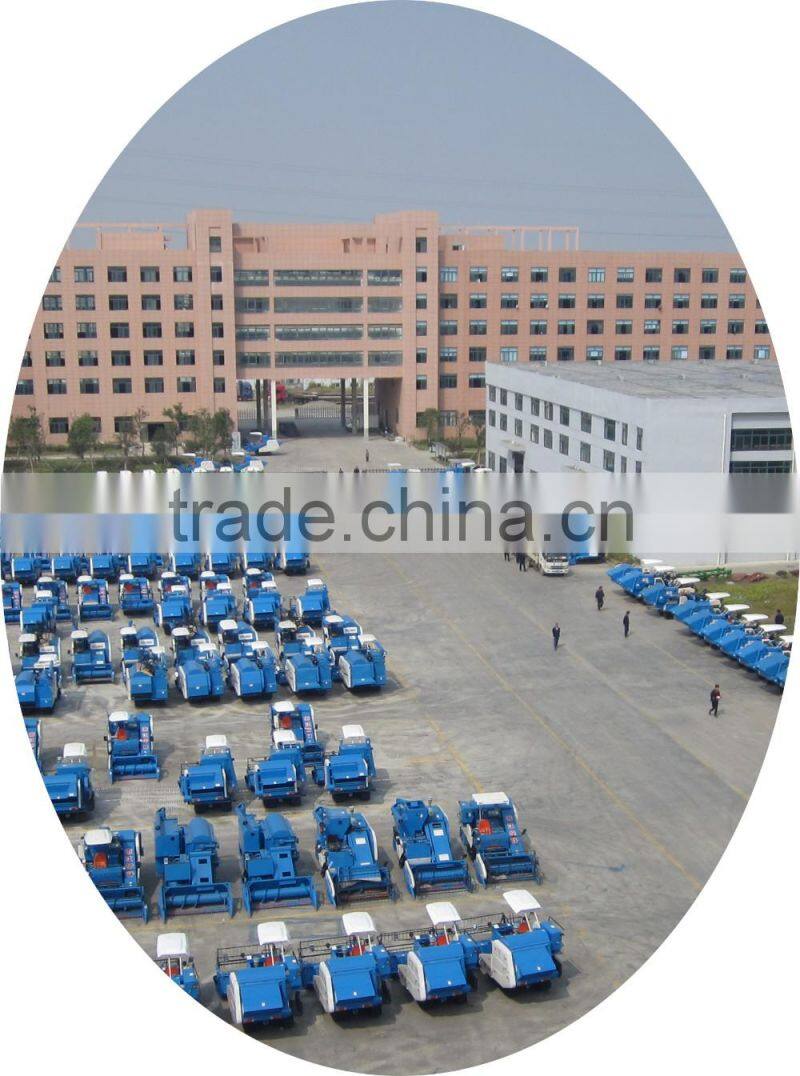

5.Company Show

Agricultural Machines Rice Combine Harvester,Small Combine Harvester









6.Certication Show



Agricultural Machines Rice Combine Harvester,Small Combine Harvester
