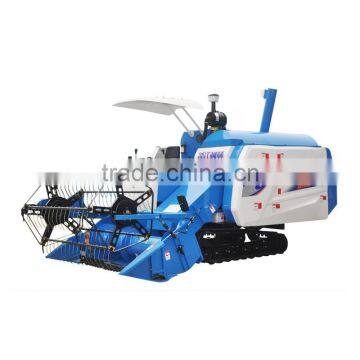

4LZ-4.0B products harvester

FOB Price

USD $12,000 - $13,000 / Set

1 Set(Min.Order)

Supply Ability 20000 Set / Sets per Month
Port NINGBO

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Application:	grain	Type:	Combine Harvester
Drive Type:	Gear Drive	Usage:	Grain Harvester	Place of Origin:	Zhejiang, China
Brand Name:	LIULIN	Model Number:	4LZ-4.0B1	Dimension(LWH):	5100x2500x2650
Weight:	3280KG	Certificate:	Other, CE/ISO9001:2000,CAM	Warranty:	1 Year
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

4LZ-4.0B1 rice combine harvester and harvester machine Major advantages:

Thorough threshing
Clear separation
Low grain breakage
High grain cleanness
Good maneuverability in the wet and soft field
Quality engine with sufficient power reserve,low vibration and low noise

main specification
Type			Track self-propelled harvester
Model			4LZ-4.0B1
Havesting Width		mm	2000 or 2100 or 2300
Feed		kg/s	4.0
Diese Engine	Model	kw	70
	Power	HP	95
	Rotate Speed	R/min	2800
Average oil consumption per hectare		kg/ha	20-23
working productivity		ha/h	0.3-0.5
weight	big tank/1.0m3	kg	3050(big rice tank)
Dimension LxWxH(mm)		mm	5100x2500x2650
Header	Reel type		eccentic, spring toothed
	Reel Diameter	mm	¢1000
	No.of bars		5
	Auger type		Spiral toothed
	Auger Diameter	mm	¢480
	Clearance between Auger fingers and bottom platform	mm	11-15(adjustable)
	Cutter knife travel	mm	76.2
Conveyer	Type		rake toothed band (rake toothed chain)
	linear speed of rake teeth movement	m/s	5
Roller	Type		axial flow,rasp-bar
	Diameter	mm	¢550(adjustable)
	Length	mm	1332
	Speed of rotation	R/min	912
Concave	type		grid
	angle		238
	clerance between concave and rasp-bar	mm	7~19
Sieves	Type		Double sieves+blower+re-thresher
	top sieve/area	m²	0.81
	bottom sieve/area	m²	0.92
	tail sieve area	m²	0.22
Fan	Type		centrifugal,volute
	Diameter	mm	¢360
Vertical auger	Diameter	mm	¢125
Horizontal auger	Diameter	mm	¢125
Grain Tank		m³	0.3 or 0.7
Chassis	Type		Rubber track
	Track	mm	450×90×50
	Gear box		HST with gearbox
	Drving speed	m/s(km/h)	0.476(1.71)~2.635(9.49)
Re-thresher	Type		plank toothed
	Rotor diameter/lentgth	mm	180/1475
Unloading			Sacked & Auto unloading

Company Information

**One of the Top Harvester Manufactuers in China**

We own over 800 workers, and sells more than 15000 sets every year.

We have been focusing on combine harvester for 20 years after foundation from 1994, and now we work more harder to improve our quality and make our customers satisfied.

No matter what size you need, we have several types of harvester will meet your request.

Middle size: 4LZ-2.0 and 4LZ-2.5 with a cutting width of 2000mm and 2100mm
Big size: 4LZ-3.0 with a cutting width of 2580mm
New model: 4LZ-4.0A1 which will surely make you satisfied with the grain cleaning
New model: 4LZ-4.0B1 which will surely make you satisfied with the grain cleaning

(Pls click the picture to watch the video of our factory)

Buyer Feedback

More info

Payment Terms and Service
Terms	T/T 30% deposit and 70% balance before the shipment, and we will deliver the machine in 15 days after the receipt of the deposit
Service	Oversea service is available, Any order over 6 sets, we can send our engineer to your side, and for agencies, if you need, our engineer can stay at your side for 2 or more months every year

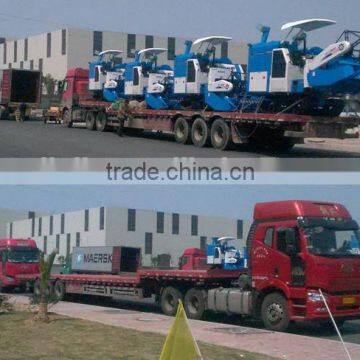

Packing and Shipment
Model.	20FCL Container	40HQ Container
4LZ-1.8	1 Set	3 Sets
4LZ-2.0(2m)	1 Set	3 Sets
4LZ-2.5	None	2 Sets
4LZ-3.0	None	2 Sets
4LZ-2.0B	1 Sets	2 Sets
Tiller	1 Sets	3 Sets
