Home > Manufacturing & Processing Machinery > Agricultural Machinery > Harvesting Machine > 4LZ-4.0B Green Bean Harvester
US$ 12,000 - 15,000
MOQ: 2 Sets
Key Specifications
Get Latest Price
Condition:
New
Application:
agricultural machinery
Type:
Combine Harvester
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Farm Equipment Machine Mini Rice Harvesting Equipment Prices In IndiaUS$ 12,500 - 14,000MOQ: 3 Sets -
4LZ-4.0B1 Paddy Mini Rice and Wheat Combine Harvester and Thresher Harvester in Agro MachineryUS$ 12,000 - 15,000MOQ: 2 Sets
-
4LZ-4.0B Products HarvesterUS$ 12,000 - 13,000MOQ: 1 Set
-
4lz-4.0B1 Agri Equipment Small Rice and Wheat Harvester,agri MachineryUS$ 12,000 - 13,000MOQ: 1 Set
-
Liulin Brand of 4LZ-4.0B1 New Model: Rice Combine Harvester and Harvester Machine In Agricultural MachineryUS$ 12,000 - 15,000MOQ: 2 Sets
Condition
New
Application
agricultural machinery
Type
Combine Harvester
Drive Type
Gear Drive
Usage
Grain Harvester
Place of Origin
Zhejiang, China
Brand Name
LIULIN
Model Number
4lz-4.0B1
Dimension(L*W*H)
5100*2660*2500mm
Weight
3280kg
Certificate
CE
Warranty
1
After-sales Service Provided
Engineers available to service machinery overseas

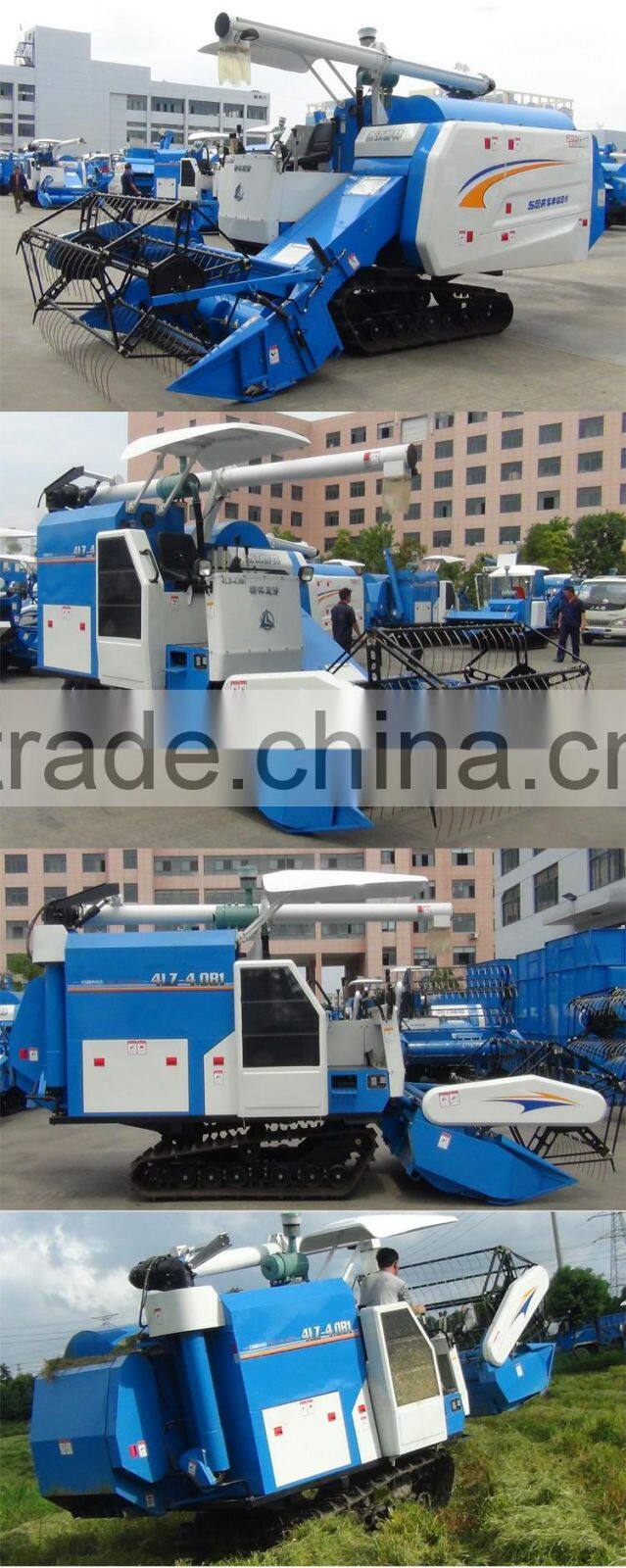

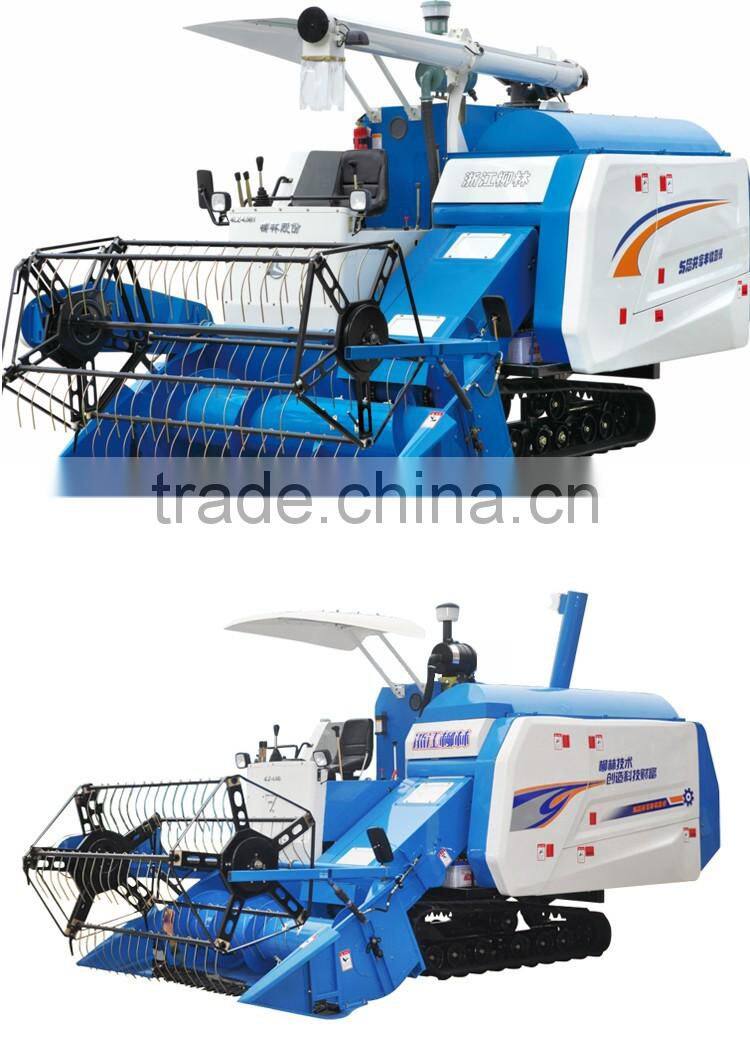

4LZ-4.0B1 green been harvester Major advantages:
Thorough threshing
Clear separation
Low grain breakage
High grain cleanness
Good maneuverability in the wet and soft field

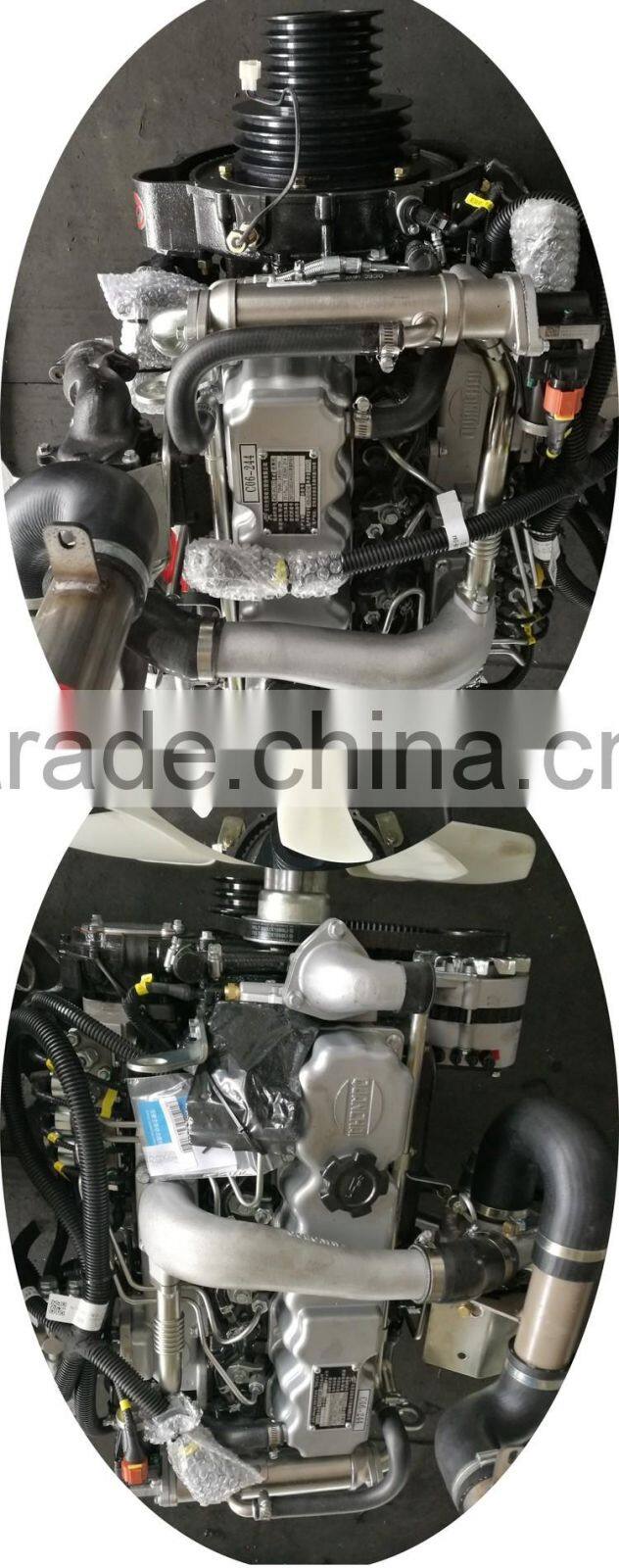

Quality engine with sufficient power reserve,low vibration and low noise
| main specification | ||||
| Type | Track self-propelled harvester | |||
| Model | 4LZ-4.0B1 | |||
| Havesting Width | mm | 2000 or 2100 or 2300 | ||
| Feed | kg/s | 4.0 | ||
| Diese Engine | Model | kw | 70 | |
| Power | HP | 95 | ||
| Rotate Speed | R/min | 2800 | ||
| Average oil consumption per hectare | kg/ha | 20-23 | ||
| working productivity | ha/h | 0.3-0.5 | ||
| weight | big tank/1.0m3 | kg | 3050(big rice tank) | |
| Dimension LxWxH(mm) | mm | 5100x2500x2650 | ||
| Header | Reel type | eccentic, spring toothed | ||
| Reel Diameter | mm | ¢1000 | ||
| No.of bars | 5 | |||
| Auger type | Spiral toothed | |||
| Auger Diameter | mm | ¢480 | ||
| Clearance between Auger fingers and bottom platform | mm | 11-15(adjustable) | ||
| Cutter knife travel | mm | 76.2 | ||
| Conveyer | Type | rake toothed band (rake toothed chain) | ||
| linear speed of rake teeth movement | m/s | 5 | ||
| Roller | Type | axial flow,rasp-bar | ||
| Diameter | mm | ¢550(adjustable) | ||
| Length | mm | 1332 | ||
| Speed of rotation | R/min | 912 | ||
| Concave | type | grid | ||
| angle | 238 | |||
| clerance between concave and rasp-bar | mm | 7~19 | ||
| Sieves | Type | Double sieves+blower+re-thresher | ||
| top sieve/area | m2 | 0.81 | ||
| bottom sieve/area | m2 | 0.92 | ||
| tail sieve area | m2 | 0.22 | ||
| Fan | Type | centrifugal,volute | ||
| Diameter | mm | ¢360 | ||
| Vertical auger | Diameter | mm | ¢125 | |
| Horizontal auger | Diameter | mm | ¢125 | |
| Grain Tank | m3 | 0.3 or 0.7 | ||
| Chassis | Type | Rubber track | ||
| Track | mm | 450×90×50 | ||
| Gear box | HST with gearbox | |||
| Drving speed | m/s(km/h) | 0.476(1.71)~2.635(9.49) | ||
| Re-thresher | Type | plank toothed | ||
| Rotor diameter/lentgth | mm | 180/1475 | ||
| Unloading | Sacked & Auto unloading | |||
Company Information
**One of the Top Harvester Manufactuers in China**
We own over 800 workers, and sells more than 15000 sets every year.
We have been focusing on combine harvester for 20 years after foundation from 1994, and now we work more harder to improve our quality and make our customers satisfied.
No matter what size you need, we have several types of harvester will meet your request.
- Middle size: 4LZ-2.0 and 4LZ-2.5 with a cutting width of 2000mm and 2100mm
- Big size: 4LZ-3.0 with a cutting width of 2580mm
- New model: 4LZ-4.0A1 which will surely make you satisfied with the grain cleaning
- New model: 4LZ-4.0B1 which will surely make you satisfied with the grain cleaning
(Pls click the picture to watch the video of our factory)
Buyer Feedback
More info
| Payment Terms and Service | ||
| Terms | T/T 30% deposit and 70% balance before the shipment, and we will deliver the machine in 15 days after the receipt of the deposit | |
| Service | Oversea service is available, Any order over 6 sets, we can send our engineer to your side, and for agencies, if you need, our engineer can stay at your side for 2 or more months every year | |

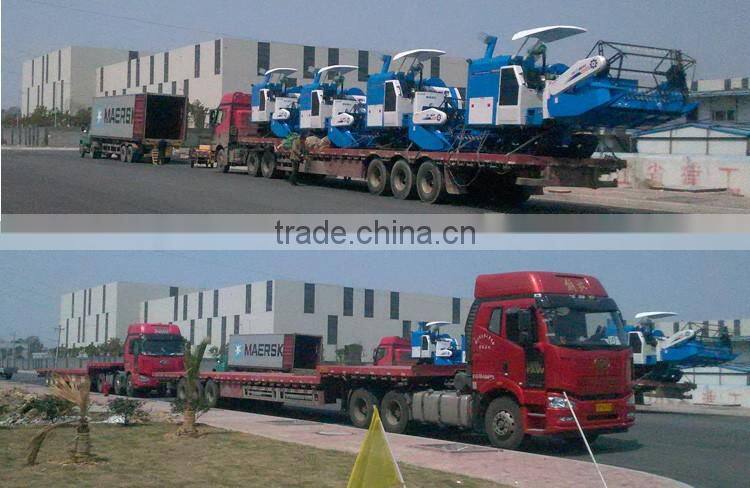

| Packing and Shipment | ||
| Model. | 20FCL Container | 40HQ Container |
| 4LZ-1.8 | 1 Set | 3 Sets |
| 4LZ-2.0(2m) | 1 Set | 3 Sets |
| 4LZ-2.5 | None | 2 Sets |
| 4LZ-3.0 | None | 2 Sets |
| 4LZ-2.0B | 1 Sets | 2 Sets |
| Tiller | 1 Sets | 3 Sets |

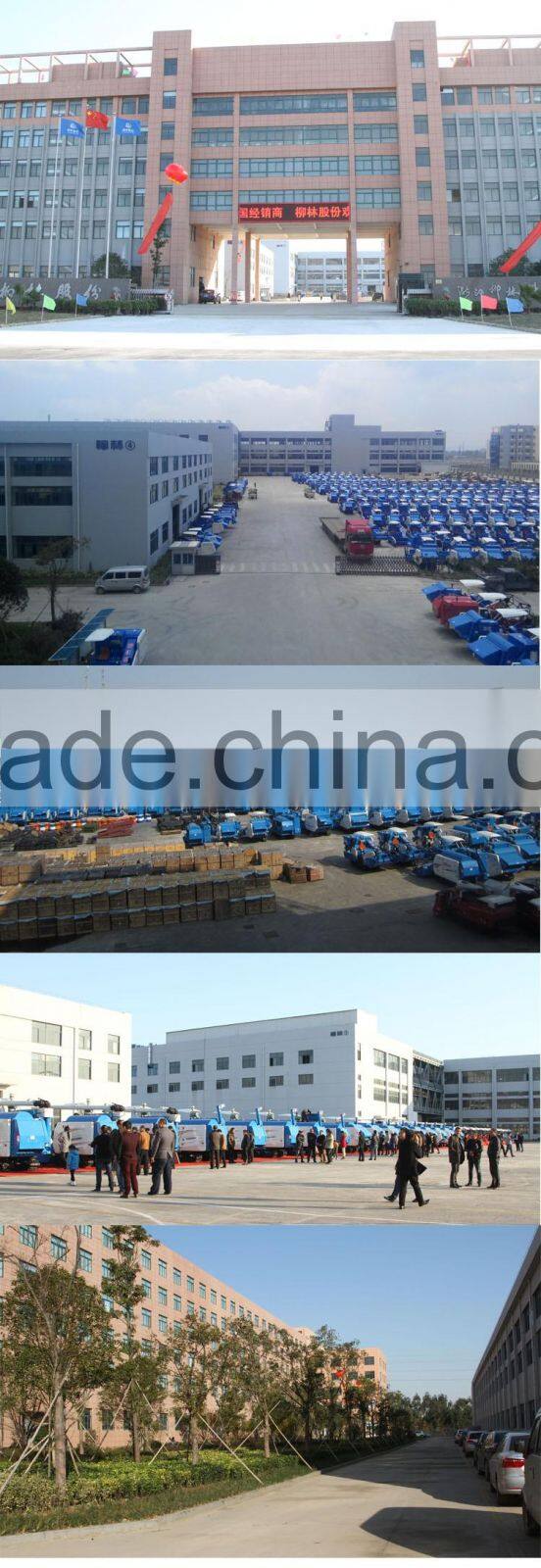

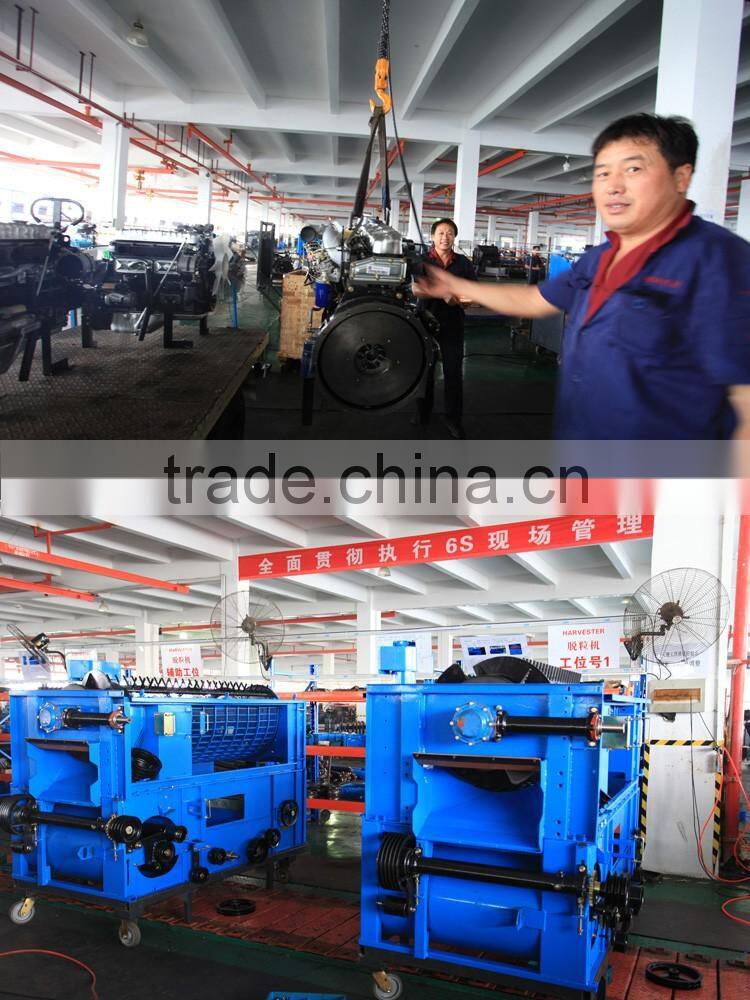

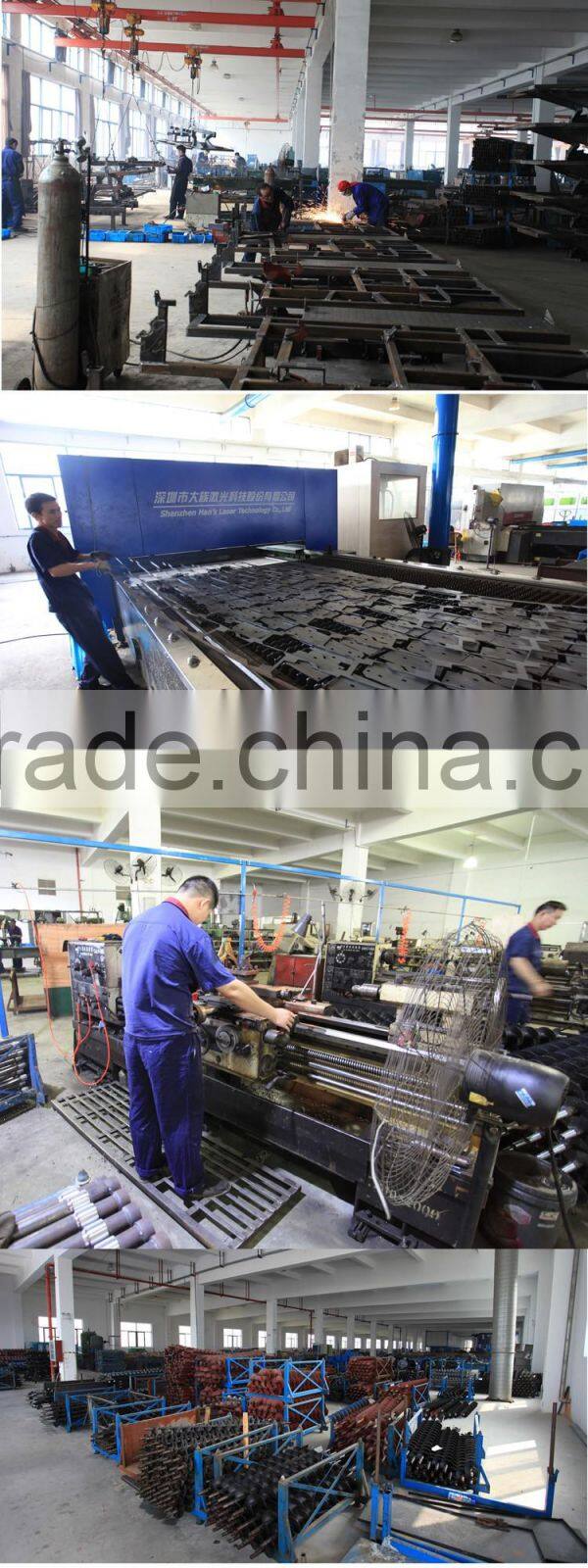

A glance at our factory

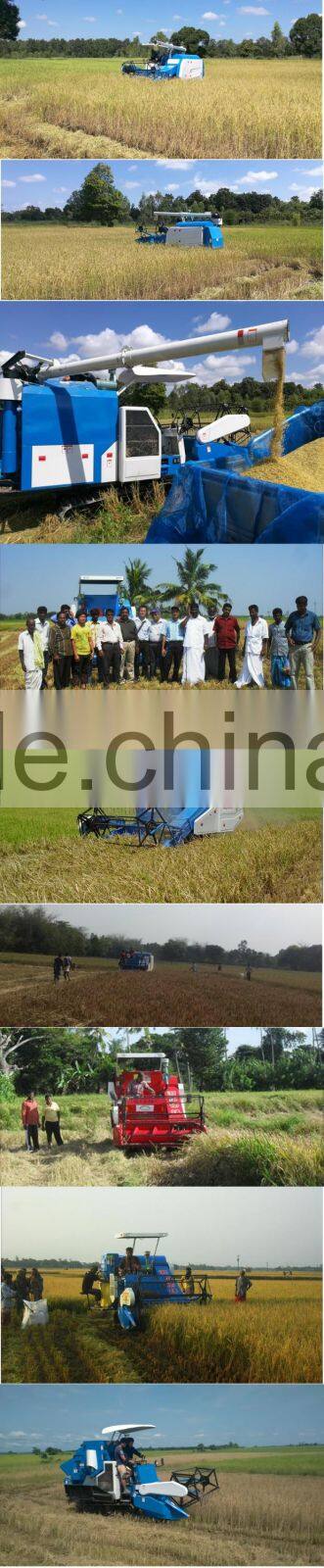

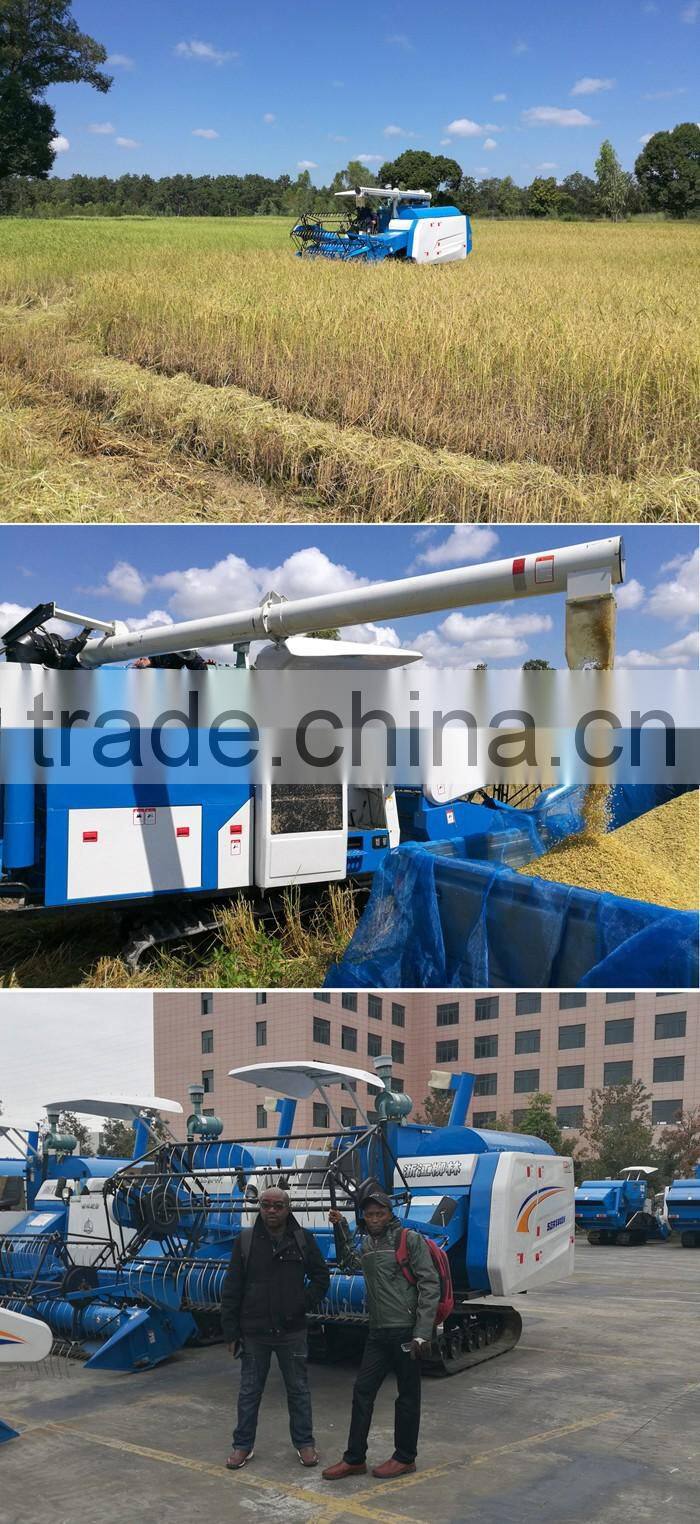

Show in Foreign Countries

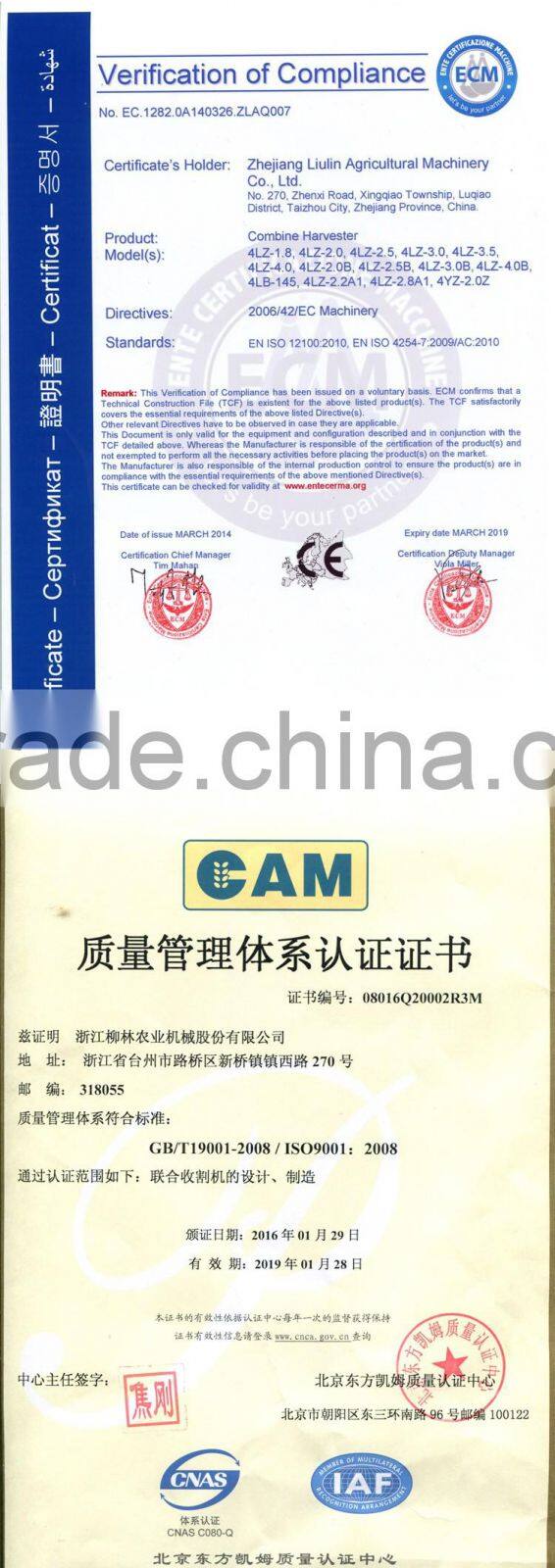

Certificate
