Home > Tools & Hardware > Hydraulic Parts > Hydraulic Cylinder > Conveyor Polymer Steel Skate Wheel for Convey Lightweight Packages,carton,Totes,cases. Plastic Roller Crossed Metal Skate Wheels

Conveyor Polymer Steel Skate Wheel for Convey Lightweight Packages,carton,Totes,cases. Plastic Roller Crossed Metal Skate Wheels

Name: Conveyor Polymer Steel Skate Wheel for Convey Lightweight Packages,carton,Totes,cases. Plastic Roller Crossed Metal Skate Wheels
Brand: jiashan dingyi bearing,hunan jintai hardware and machinery
SKU: 140210668
Availability: InStock

Conveyor Polymer Steel Skate Wheel for Convey Lightweight Packages,carton,Totes,cases. Plastic Roller Crossed Metal Skate Wheels thumbnail-1

Conveyor Polymer Steel Skate Wheel for Convey Lightweight Packages,carton,Totes,cases. Plastic Roller Crossed Metal Skate Wheels photo-1

US$ 0.03 - 50 MOQ: 50 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

jiashan dingyi bearing,hunan jintai hardware and machinery

Model Number:

CY,SP,SD,BTU ,,,,

Contact Supplier Request Quote Chat Now

Jiashan Dingyi Interaction Bearing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name jiashan dingyi bearing,hunan jintai hardware and machinery

Model Number CY,SP,SD,BTU ,,,,

All Various of Ball Bearing

Ball Transfer Unit:

Deep groove ball bearing

Product Description

As a component that can transport unit product turning, circumgyratetion and pushing conveniently, ball transfer has wide application transmission, feeding, maching system, processes the machinery and in the pack machinery supporting facility. Ball transfer material may be selected according to the different using environment, situation and purpose. (please use lubricating oil when it works.

Bolt Type (Stud Type) Ball Transfer Unit, with one inch (1"=25.4mm) main ball, used for heavy duty loads, can be used to build a multi-direction conveyor, moving goods, feeding machines and many more, the rest is for your imagination to build a new design or create a new idea

Ball Transfer Unit List of CY series-light & medium duty:

Model No.	Ball size	Loading capacity Maximum/Breaking
CY-15A	15MM	10KG/15KG
CY-18A	18MM	20KG/25KG
CY-25A	25.4MM	25KG/30KG
CY-30A	30MM	40KG/50KG
CY-38A	38MM	60KG/80KG

CY-16B	16MM	10KG/15KG
CY-25B	25MM	25KG/30KG
CY-30B	30MM	35KG/40KG
CY-38B	38MM	45KG/55KG

CY-8H	8MM	3KG/5KG
CY-15H	15MM	15KG/25KG
CY-22H	22MM	40KG/55KG
CY-30H	30MM	70KG/85KG

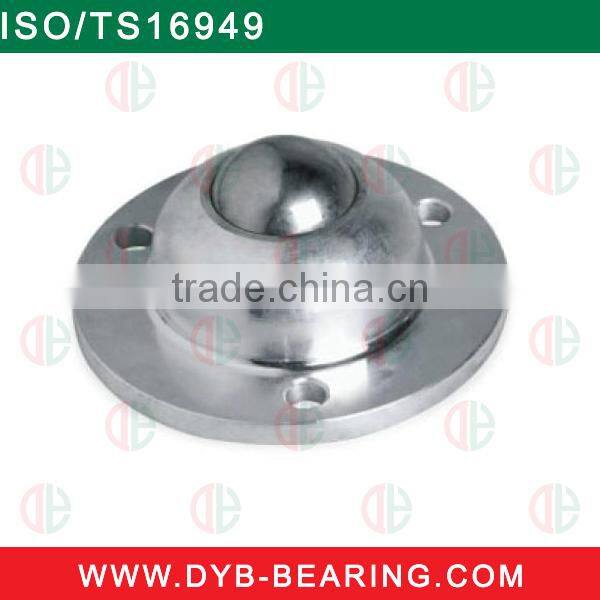

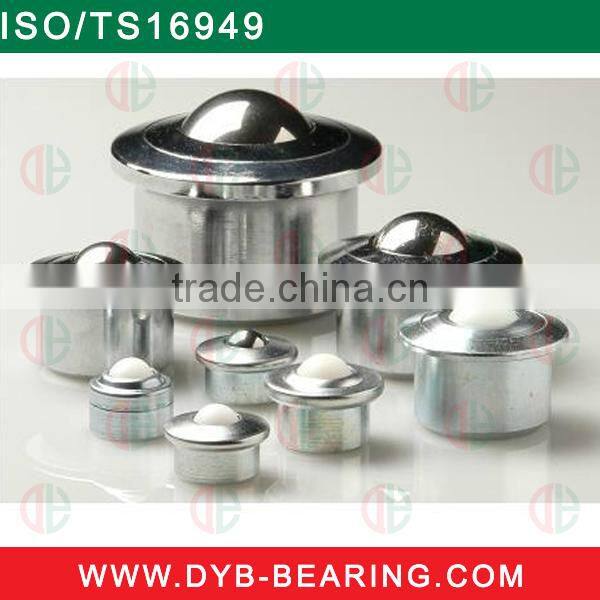

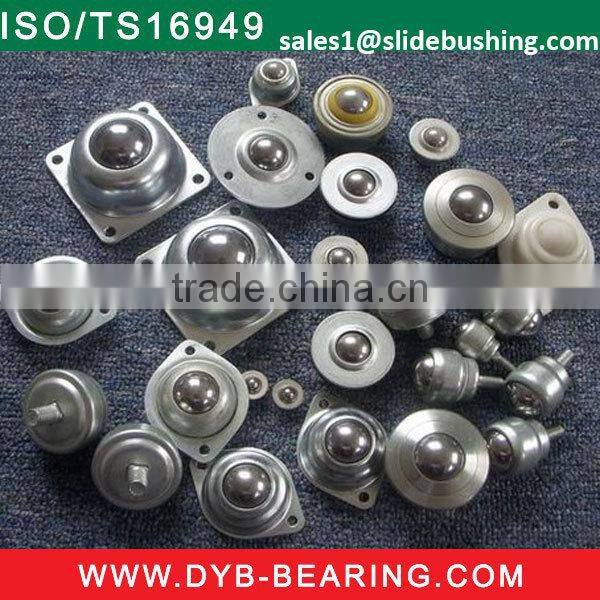

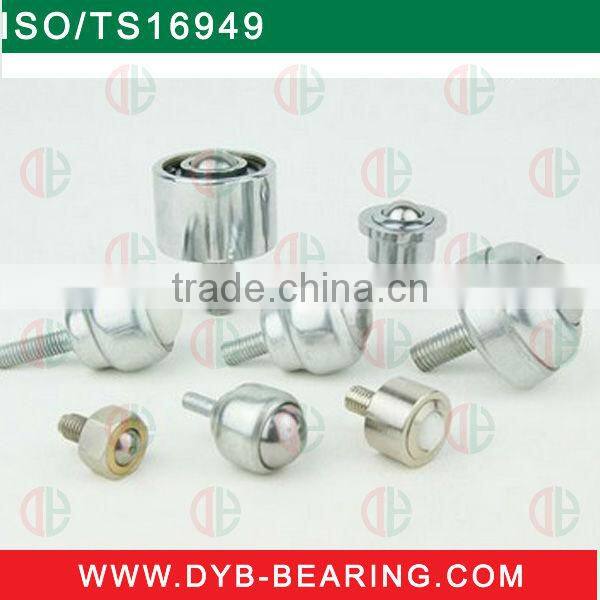

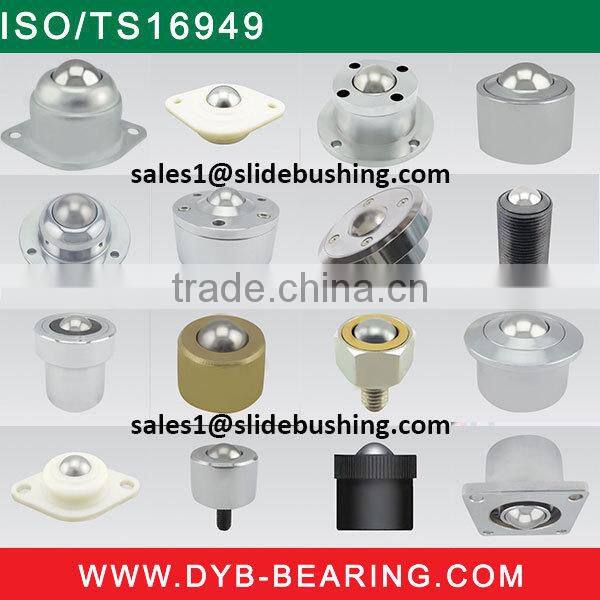

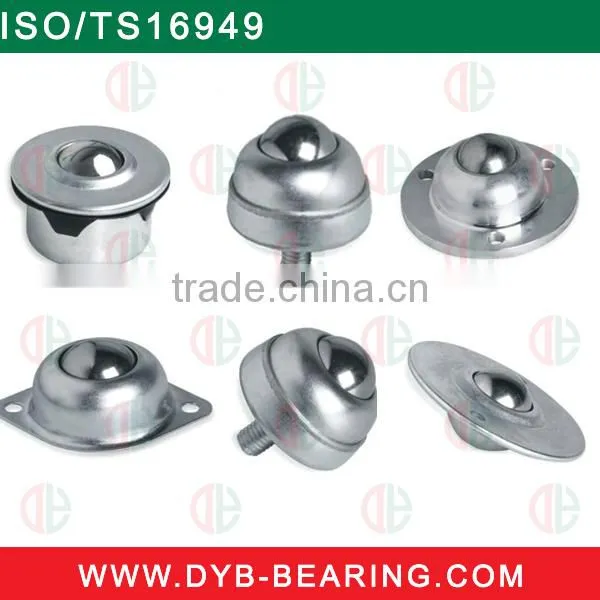

Product Photos:

1)Typically the design involves a single large ball supported by smaller ball bearings.They are commonly used in an inverted ball up position where objects are quickly moved across an array of units, known as a ball transfer table, a type of conveyor system. This permits manual transfer to and from machines and between different sections of another conveyor system.

2)They are used in airports for luggage delivery, or in industry as part of manufacturing systems. Prior to the invention of the ball transfer unit, first patented by Autoset Production Ltd in 1958, these applications were solved by the use of inverted casters.However, casters recognize a trail, meaning that the wheels had to align before directional change could be achieved.Ball transfer units can also be used non-inverted ball down position as a type of caster, however this use is restricted by load-bearing limitations and the type of floor.

3)Manufacturers have addressed this problem with ball transfer units incorporating re-circulating ball principles, however the inverted position is still the most common application and the least problematic

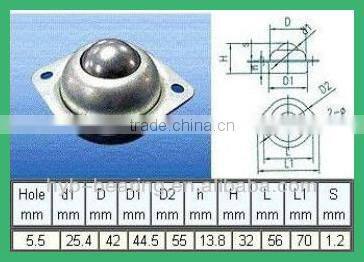

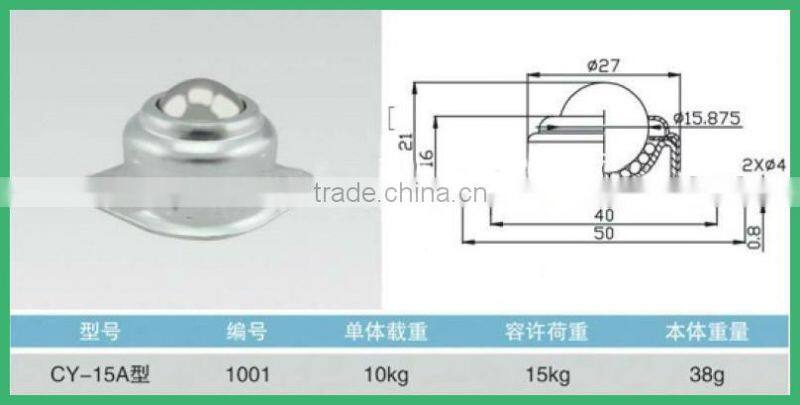

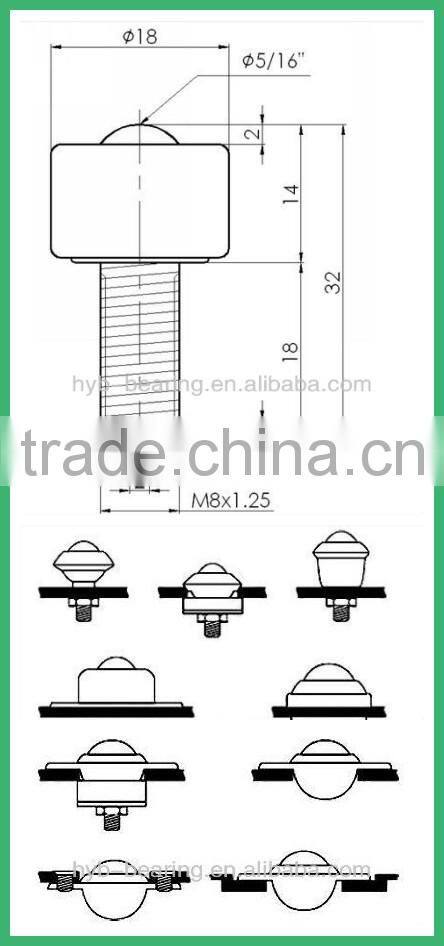

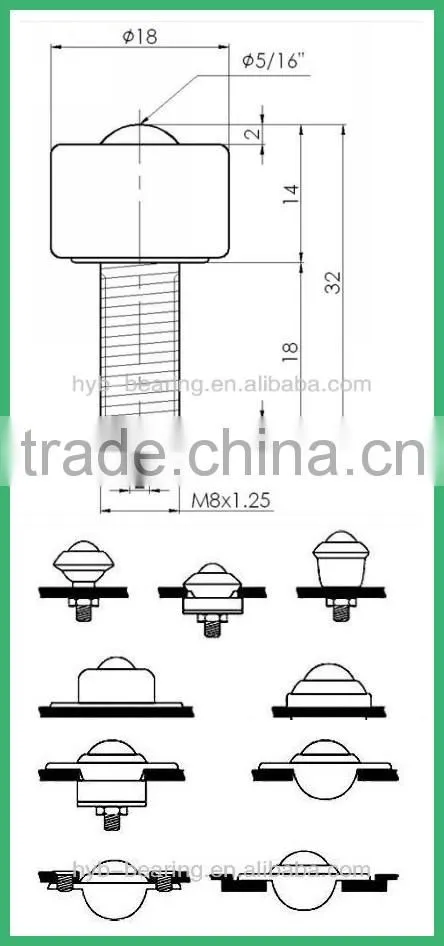

Drawing:

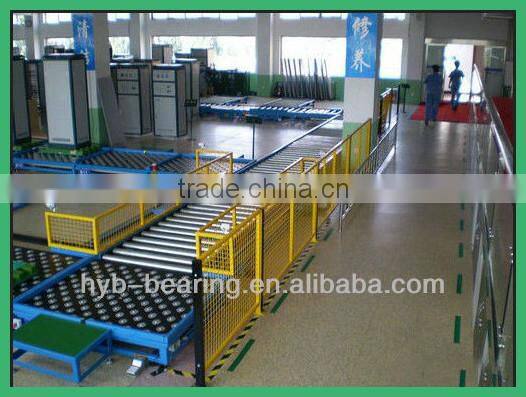

The factory situation:

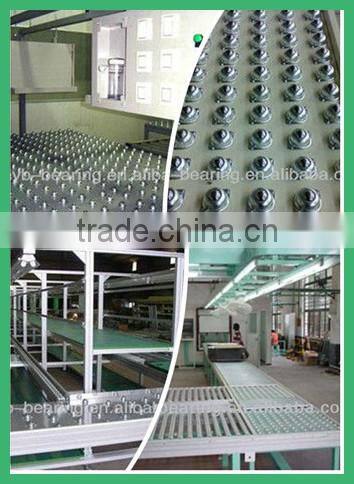

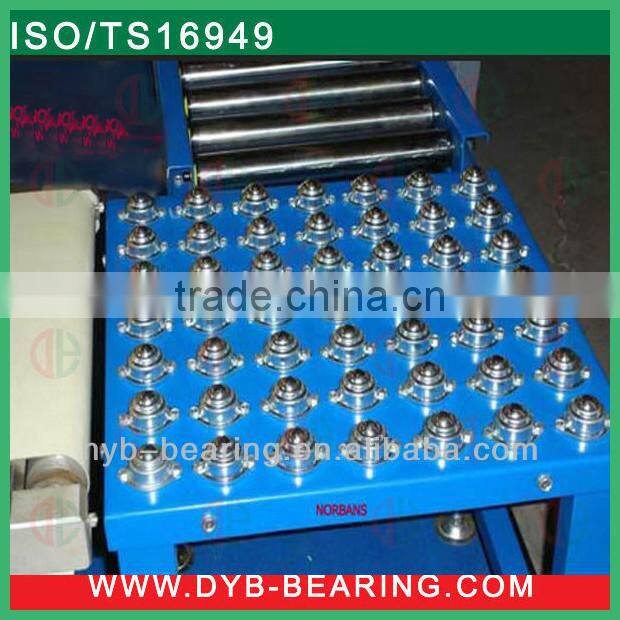

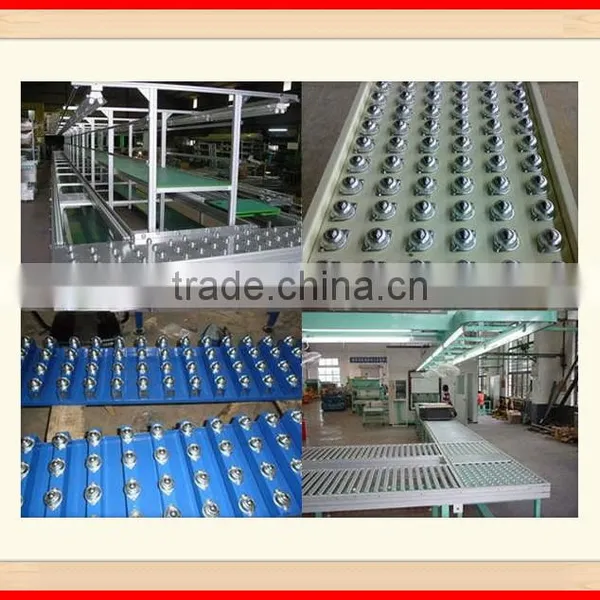

Application:

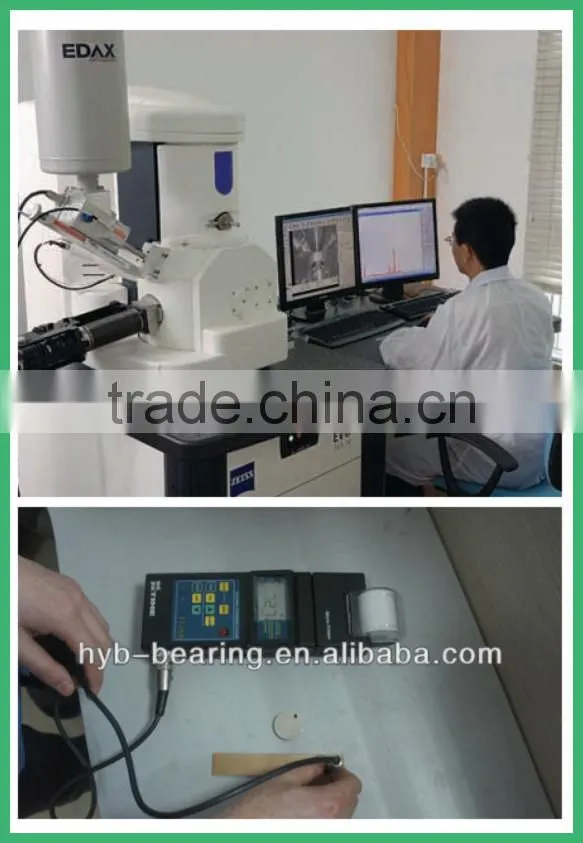

Inspection:

We supply bushing bearing ball transfer unit for 14years!
