DYB2 AE all kinds Sliding bearing,oilless bush,slide bushing
- Feature DX agricultural bearings
1. Good load capacity and anti-wear
2. It is used in high load capacities and low speed with rotational,oscillating or frequent stop-start motion
3. It can work long time without oil in the condition of boundary lubrication,under oil or grease lubrication interval, the work is longer
4. It is machinable on POM layer
5. The bushes can be applied in auto chassis,forging machine,metallurgical,civil engineering,power station,strip rolling industries etc.
- Technical Date DX agricultural bearings
Bushing Models:
Bushing Structure:
| 1, POM (with lead or without lead) : 0.3-0.05mm |
| 2, Porous Bronze powder : 0.2-0.3mm |
| 3, Steel backing : 0.4-2.2mm |
| 4, Tin-coating 0.005mm or Copper coating 0.008mm |
DX-SF-2 Reference:
Model Reference:
DU-SF-1 Reference:
FB Bushing Reference:
JDB Bronze Graphite Reference:
FU Bushing Reference:
JF Bushing :
Application Fields:
1, DYB101(DU-SF-1), Widely used in hydraulic vechicles,tobacoo machines,forests machines and so on.
2, DYB 201(DX-SF-2), Widely used in vehicle chassis,forming machine tools,rolling steel industry and so on.
3, DYB 104(Lead Free),Widely used in food machine,pharmaceutical machine,ect.
4, DYB 106,Widely used in auto mobile,motor damper and oilpumps,ect.
5, DYB 500,Widely used in consecutive casting and rolling machines,mine-exploiting equipments,ships,steam engine,ect.
We supply bushing bearing ball transfer unit for 14years!
Please click the detailed specification as below link.
1,DYB100 DU SF-1 Teflon bushings PAP P10

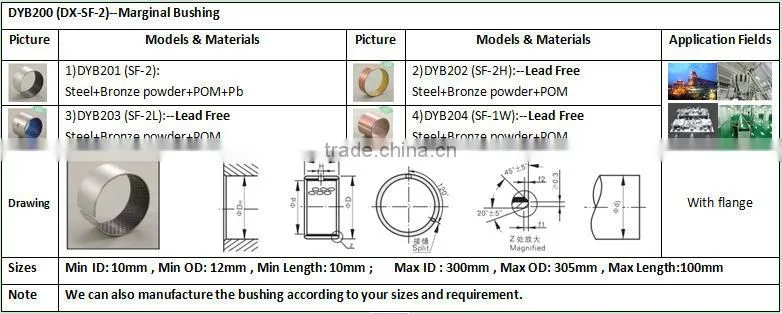

2,DYB200 DX SF-2 POM bushings PAP P20
3,DYB300 SJ/JF Bimetal steel+bronze bushings

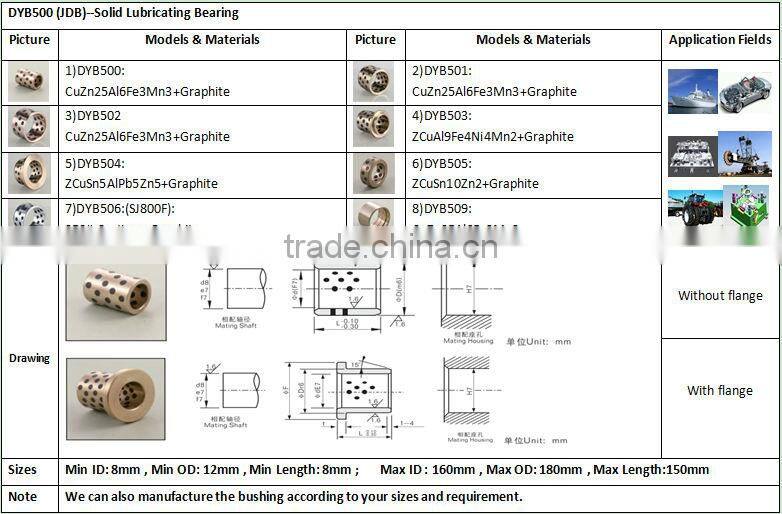

4,DYB500 JDB SOB WF Bronze metal graphite bushings

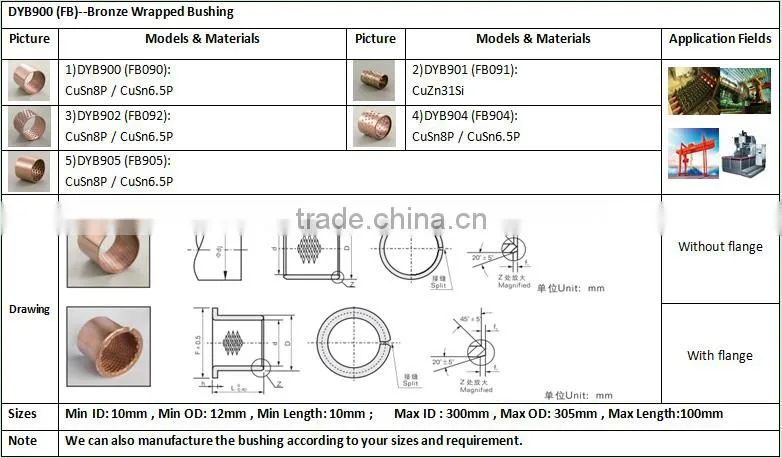

5,DYB900 FB Bronze wrapped oilite bushings

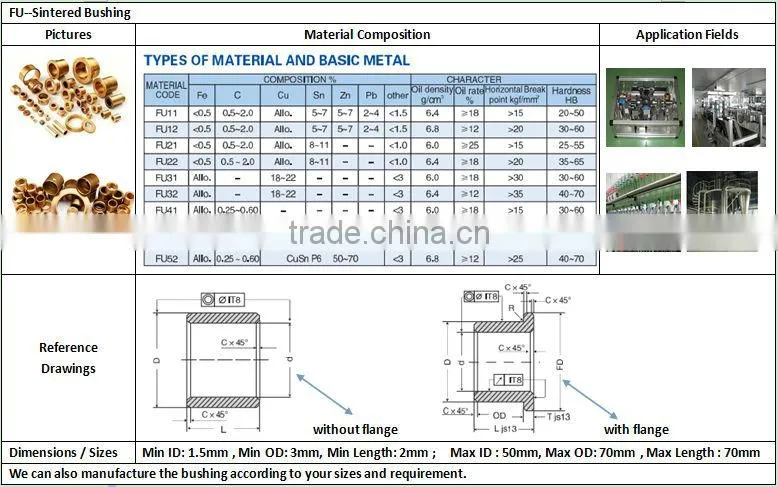

6,DYB FU sintered bronze bush,Oilite metal sintered bushings
7,DYB FZ ball retainer, ball bearing cage
8,DYB BTU ball transfer unit, ball caster bearing
9,Deep groove ball bearing
Please contact us to got the catalogue and quotation
Contact: Ms. Susan Shi
Email: sales1(at)
Skype: susan3397
Packing:
1,Print mark logo,
2,Anti-rust oil
3,Plastic films
4,Plastic bag or paper box
5,Carton+Pallet
Shipping:
1,Delivery Time : Usually 15-20 days.Depends on your quantity.
2,Generally, Free of standard size sample within 5 days.
1,We are produce high quality and low price good wear resistance sliding bush factory
2,Our sliding bush passed the ISO TS 16949 .
3,Under the guidance of Pursuit of the excellence & keep improving.
4,We will do our best to provide the quality products and professional sevices.
Jiashan Dingyi Interaction Bearing Co., Ltd. specializes in researching and manufacturing self-lubricating oilless bushes. We can also design and produce various non-standard bearings according to clients' requirements. Qualified products and good service are guidance of our company. We will do our best to develop bushes in different fields to serve clients from at home and abroad.
Comapany R&D Center:
Automatic chamfer machine:
ISO/TS16949 certification:
Q:What is slide bearing?
A:sliding bearings are primarily used for bearing arrangements where heavy loads have to be supported and where rotational or oscillating movements are relatively slow
Q:Where is your factory located?
A:Our factory is located in NO.16,lizheng road,Develop Zone, jiashan,zhejiang, P.R.China
Q: Could I get samples?
A:We are honored to offer you samples.
Q:How does your factory do regarding quality control?
A:Quality is priority .we always attach great importance to quality controlling from start to the end.our factory has gained ISO/TS16949
Q:Why choose slide bearing?
- Maintenance-free operation
- No lubrication required (PTFE composite)
- Initial lubrication required (POM composite)
- Minimum wall thickness, minimum space requirements
- Accommodation of heavy loads
- Wide range of temperatures
