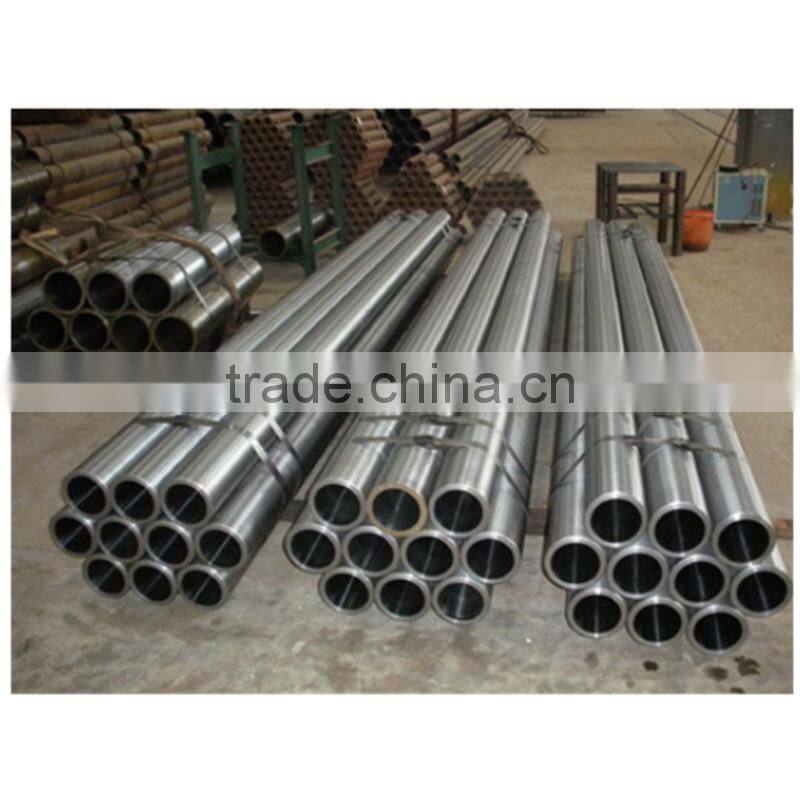

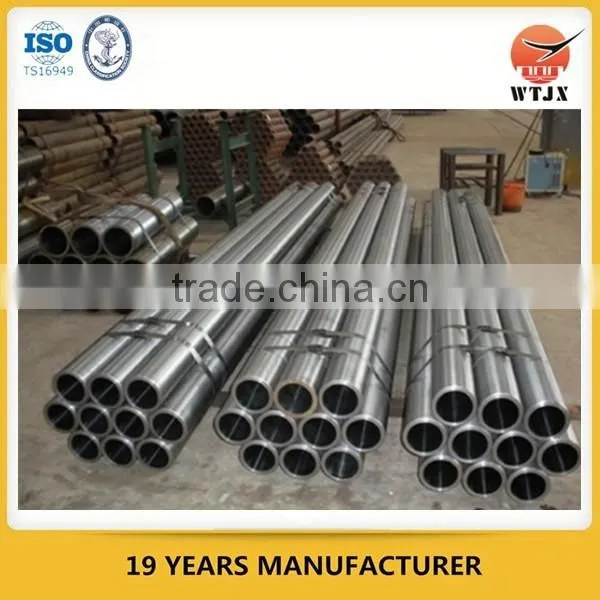

Small Bore Honed Tube for Hydraulic Cylinder Barrel/Chinese Manufacturer
US$ 900 - 1,200
MOQ: 1000 Kiloamperes
Key Specifications
Get Latest Price
Standard:
ASTM, AISI, DIN, GB
Place of Origin:
Shandong, China
Brand Name:
WTJX
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SAE1026 Seamless Carbon Steel Pipe/Chinese Specialized ManufacturerUS$ 700 - 1,200MOQ: 1 Ton -
CDS Honed Tube for Hydraulic CylinderUS$ 800 - 1,500MOQ: 1000 Kilograms
-
ASTM A106 Gr.B Seamless Carbon Steel Oil Pipe/Chinese Specialized ManufacturerUS$ 700 - 1,200MOQ: 1 Ton
-
16Mn Pre-honed Seamless Tube for Hydraulic CylinderUS$ 800 - 1,500MOQ: 1000 Kilograms
-
Hydraulic Cylinder Tube St52 Din2391US$ 900 - 1,200MOQ: 1000 Kiloamperes
Standard
ASTM, AISI, DIN, GB
Place of Origin
Shandong, China
Brand Name
WTJX
Type
Seamless
Steel Grade
Other, st52, 16Mn, 20#,45#,27SiMn,20Mn2
Certification
ISO
Welding Line Type
ERW
Thickness
3.5-20mm
Outer Diameter
50-300mm
Small bore honed tube for hydraulic cylinder barrel
1. Standard&material: DIN2391-2 ST52, EN10305-1 E355, C45E, 34CrMo4, 42CrMo4, ASTM A519 SAE1020, SAE1026, SAE1045, SAE4130, SAE4140, etc.
2. Size range: 50mm*40mm - 480mm*420mm
- 3. Manufacture method: Cold rolled, cold drawn
4. Treatment method of internal surface: Honed
5. Delivery condition: BK, BKW, BKS, GBK, NBK.
6. Tolerance of ID: H7, H8, H9, H10
7. Tolerance of W. T: +/-5%
8. Roughness of internal surface: 0.35um max.
9. Straightness of tubes: 0.5mm/1000mm, 0.8mm/1000mm, 1mm/1000mm according to length of tubes required.
10. Packing: In bundles tied with steel strips. Slightly internal&external oil coating for anti-rust protection. End plastic caps covering both ends.
