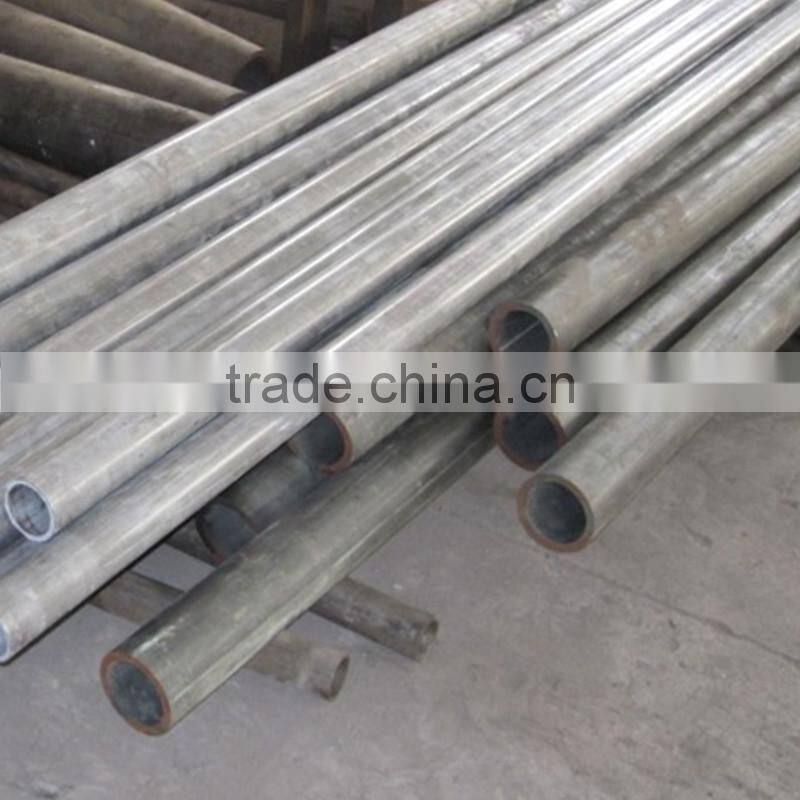

Cold Drawn Tube Ready to Hone

1. Cold drawn seamless tube ready to hone
2. Standard&material: DIN2391 ST52, ST52.3, EN10305-1 E355, C35E, C45E, 25CrMo4, 42CrMo4, ASTM A519 SAE1020, SAE1026, SAE1045, SAE4130, SAE4140, and equivalent standard&material.
3. Size range: 50mm*40mm - 480mm*420mm
4. Manufacture process: Cold-drawn, cold rolled
5. Delivery condition: BK. BKW, BKS, GBK, NBK
6. Straightness: 0.5mm/1000mm max
7. Size tolerance of ID: -0.3mm/-0.5mm ready for honing, -0.6mm/-0.9mm ready for skiving&roller burnishing
8. Tolerance of W. T: +/-5%
9. Packing: In bundles tied with steel strips. Oil coating, end plastic caps.

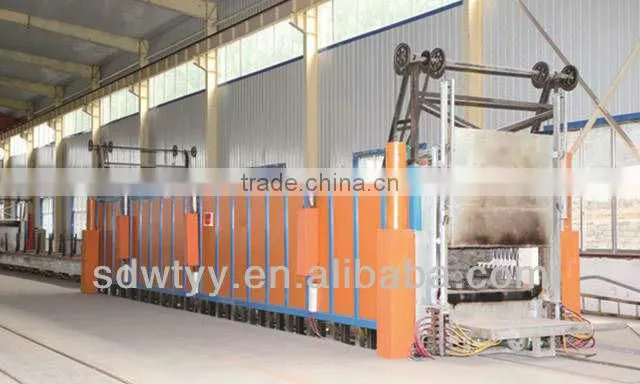

0ur company invested 10 million RMB in two cold drawing lines, one is 200 tons and the other is 320 tons with acid cleaning, phosphatization , heat treatment and alignment cutting. These two lines can process various seamless tubes range from diameter 40mm to 400 mm. They can improve our production efficiency and can supply cold drawn tubes to other machinery companies.

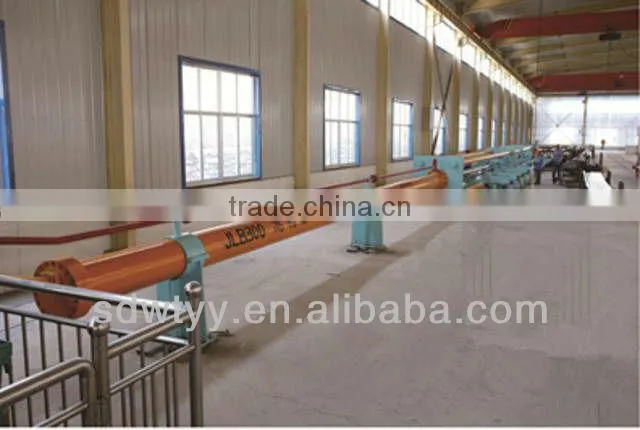

     JLB300 High Precision Hydraulic Cold Drawing Machine can be made into a chain machine set according to customer's requirements. The pull of this machine set ranges from 5T to 300T,and it's drawing length can reach 200 meters. It is widely applied to draw copper, aluminium, steel and other materials, expecially low-cost and extra-long pipe products. It's advantage lies in precision of cold drawing, adjustable speed, automatic charging and blanking, and optional online cutting and automatic length-fixed cutting.

Company overview:

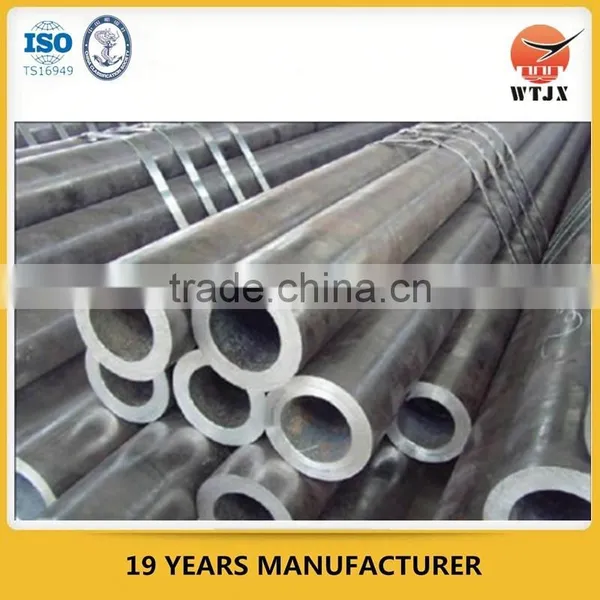

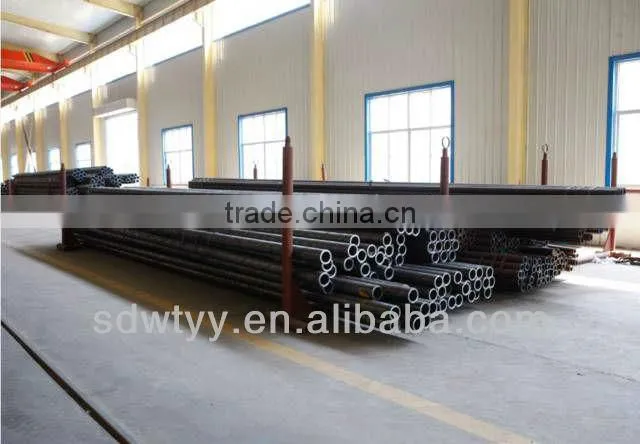

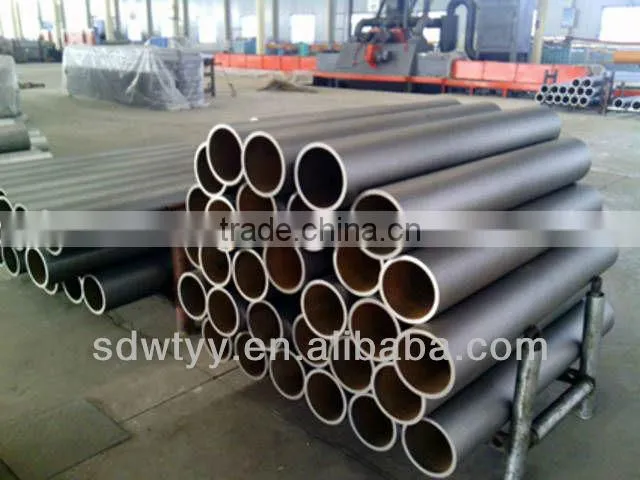

Product display:

our equipment:

Produce line:

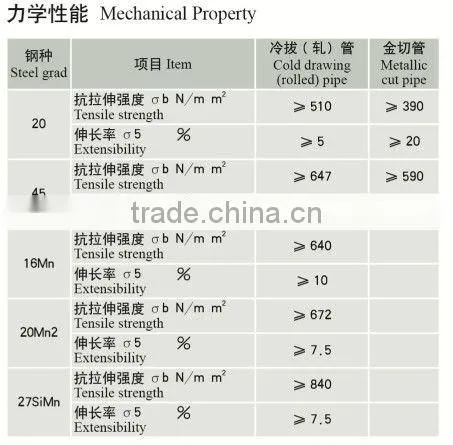

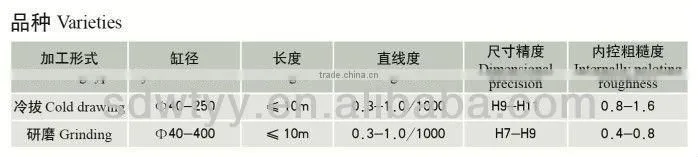

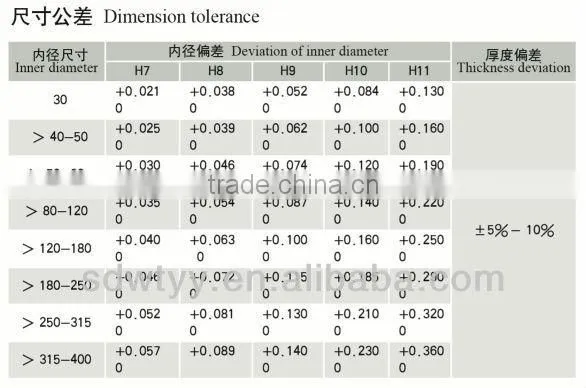

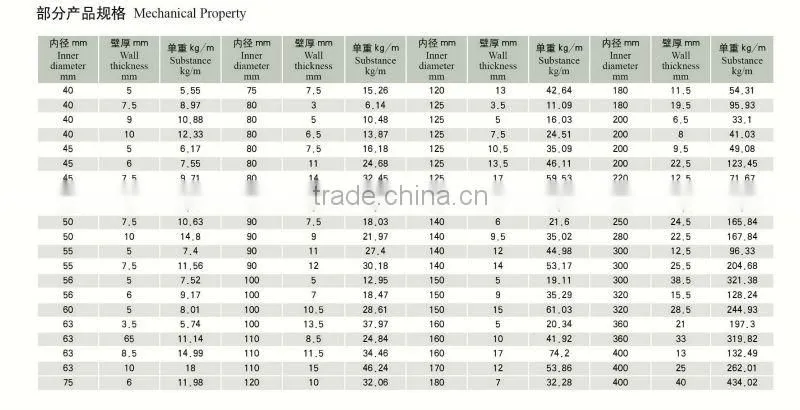

Parameter:

 our certificate:
