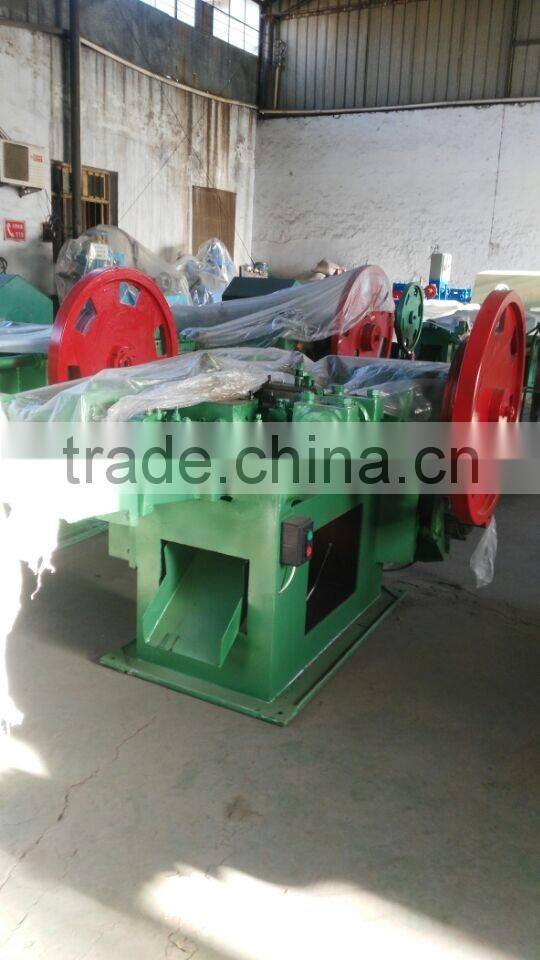

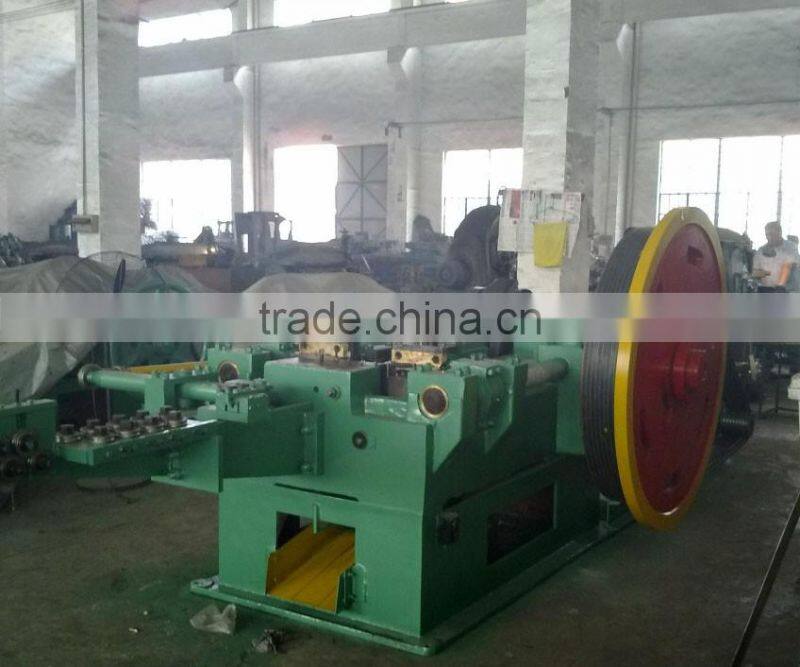

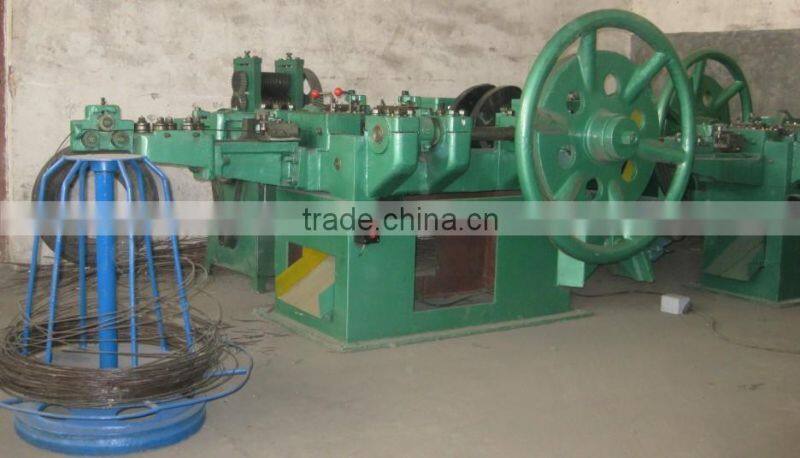

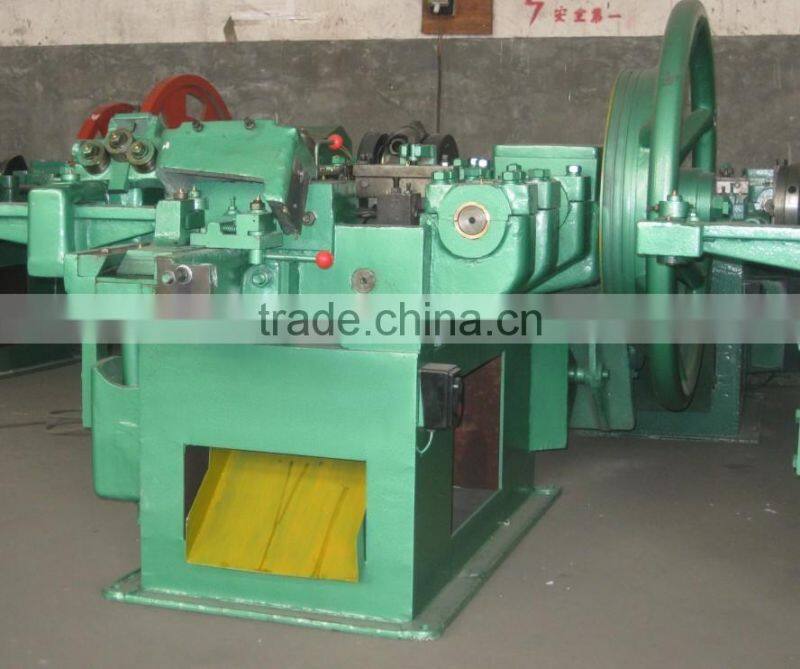

High quality Z94-2C automatic wire nail making machine
- 20 Set / Sets per Month
- Qingdao shanghai
- T/T
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Double Platform Stainless Steel Kitchen Equipment Polishing Machine
- Photovoltaic solar panels recycling plant
- Solar panel recycling machine with high efficiency
- Micro wire mesh weaving machine from LANYING wire mesh weaving machine
- LANYING woven wire mesh machines - stainless steel wire mesh weaving machines
Product Details
Place of Origin: | Henan, China | Brand Name: | Telon | Model Number: | TL-Z94-2C |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Introduction

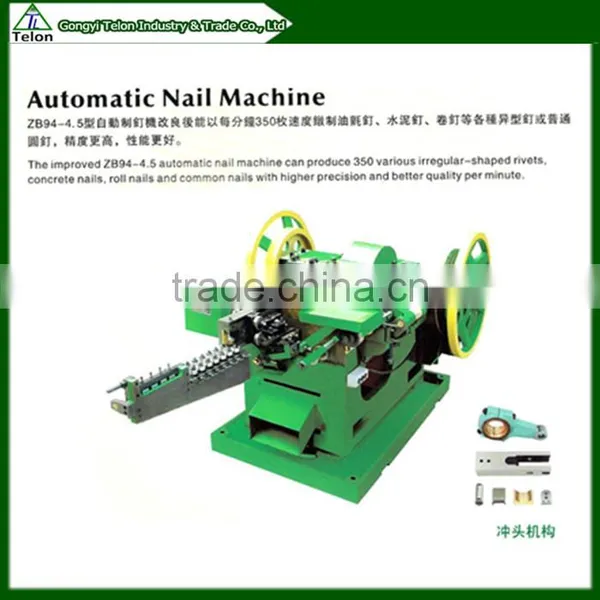

The new generation automatic nail machine adopts the piston structure,which promises the good characteristics,such as high speed,low noise,less impact,especially it can make appropriative nails with excellent quality used for high-speed nail welding machine and nail guns.
(1)The machine has attractive appearance, rational structure and high efficiency. It has long service life,and is easy to maintain with adequate durability.
(2)All the main components are made of quality steel, such as shaft, cams, gear and so on.
(3)Adopt control handle at the inlet place in order to control the incoming line at any time when operating.
(4)A friction gear is installed between crankshaft and flywheel,which plays a protective role when the machine breaks down or is overloaded.
(5)Automatic production systerm can lessen the manual labour
.
Parameter:
Model | Unit | Z94-5.5C | Z94-4C | Z94-3C | Z94-2c | Z94-1C |
max dia. of nail | mm | 5.5 | 4.5 | 3.1 | 2.8 | 1.6 |
min dia. of nail | mm | 3.8 | 2.8 | 1.8 | 1.2 | 0.9 |
max length of nail | mm | 150 | 100 | 75 | 50 | 25 |
mini length of nail | mm | 80 | 50 | 30 | 16 | 9 |
designed output | pcs/min | 200 | 260 | 280 | 350 | 450 |
motor power | kw | 5.5 | 4 | 3 | 2.2 | 1.5 |
weight(approx) | kg | 2300 | 2000 | 1800 | 1450 | 1200 |
overall dimension | m | 2.5*1.6*1.5 | 2.2*1.6*1.65 | 2*1.4*1.4 | 1.7*1.3*1.4 | 1.5*1.3*1.2 |
Gongyi city telon industry and trade co., LTD., founded in 1998, is located in gongyi city, henan province is an export enterprise in China.We won the excellent prize of scientific and technological achievements in zhengzhou and consecutive years awarded the honorary title. As an entity enterprise.
