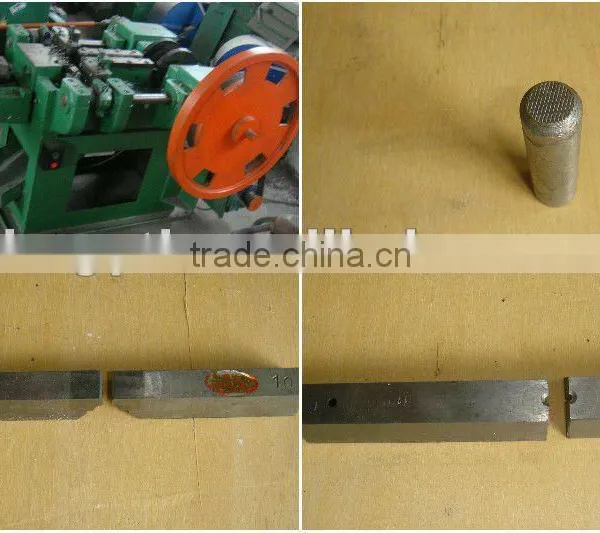

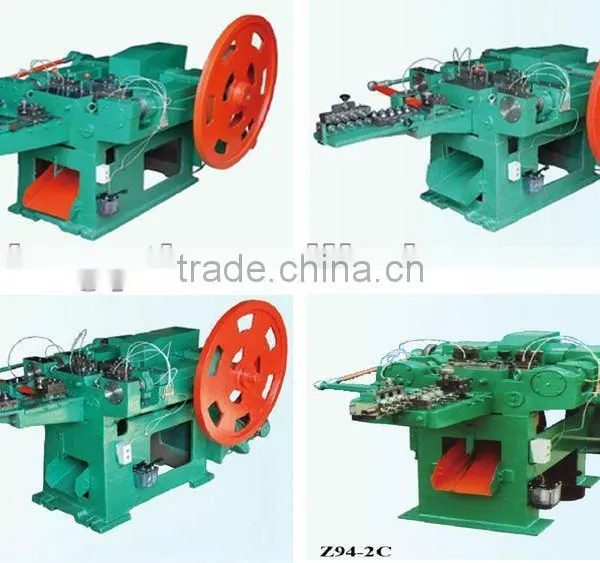

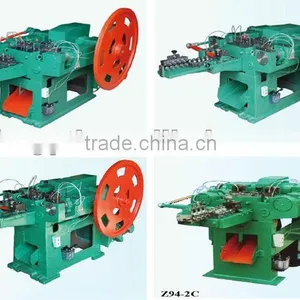

small size widely used nail making machine z94-5c nail making machine
z94-5c nail making machine adopts the piston structure,which promises the good characteristics,such as high speed,low noise,less impact,especially it can make appropriative nails with excellent quality used for high-speed nail welding machine and nail guns.
Features
(1)The machine has attractive appearance, rational structure and high efficiency. It has long service life,and is easy to maintain with adequate durability.
(2)All the main components are made of quality steel, such as shaft, cams, gear and so on.
(3)Adopt control handle at the inlet place in order to control the incoming line at any time when operating.
(4)A friction gear is installed between crankshaft and flywheel,which plays a protective role when the machine breaks down or is overloaded.
(5)Automatic production systerm can lessen the manual labour.
Technical data |
Unit |
Z94 -5.5C |
Z94 -4C |
Z94 -3C |
Z94 -2C |
Z94 -1C |
Dia of nail max |
mm |
5.5 |
4.5 |
3.4 |
2.8 |
1.6 |
Dia of nail min |
mm |
3.7 |
2.8 |
1.8 |
1.2 |
0.9 |
Length of nail max |
mm |
150 |
100 |
75 |
50 |
25 |
Length of nail min |
mm |
80 |
50 |
30 |
16 |
9 |
Designed capacity |
pcs/min |
200 |
280 |
320 |
350 |
450 |
Motor power |
kw |
5.5 |
4 |
3 |
2.2 |
1.5 |
Weight(approx) |
kg |
2500 |
2000 |
1600 |
1400 |
1200 |
Overall dimensions |
mm |
2500×1600 ×1700 |
2130×1560 ×1580 |
1830×1300 ×1470 |
1670×1240 ×1380 |
1440×1040 ×1270 |
Reference EXW unit price |
USD |
|
|
|
2868 |
2754 |
