Airflow Type Drum Wood Sawdust Dryer
Hot airflow type drum wood sawdust dryer, also called pipeline type drier, adopting twice circulate
heating system, is our newly advanced drying equipments, and shows the features of automatic
feeding, high hot airflow speed, fully mixing of airflow and materials, big drying strength, lower dust and bigger drying capacity.
Moisture in the raw materials of less than 50% can be drying one time to meet the requirement for coal bar production, which greatly reduced the labor intensity compared with commonly used drier.
Datas of drum wood sawdust dryer:
| Type | Power | Capacity | Inlet size | Dimension |
| Large-sized | 18.5kw | 1500kg/h | ≤5mm | 18.0×3.2×5.0m |
| Middle-sized | 7.5kw | 500kg/h | ≤5mm | 18.0×3.0×5.0m |
| Small-sized | 4 kw | 200kg/h | ≤5mm | 8.5×1.5×3.5m |
| TL-A320 | 7.5kw | 800kg/h | ≤5mm | 18.0x3.0x5.0m |

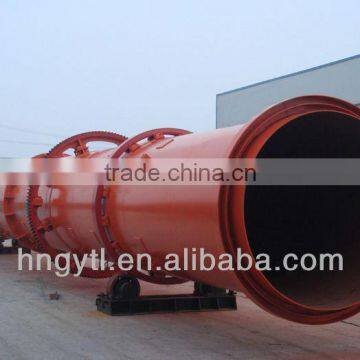

Rotry Dryer
Sawdust enter into the wood sawdust dryer, hot air fully contact with the material in the drum to complete dry.
Rotary Drying machine is mainly consist of rotary body, lifting board, driving device, supporting device and seal rings etc.
Clients can change the angle of dryer base on the production field.
It is only to control the moisture of raw material at a reasonable range that can make good result of biomass briquettes. Or the briquettes will be broken because of too loose or too dry.
Type | Power | Capacity | Weight | Dimension |
T950 | 7.5KW+7.5KW | 1200KG-1500KG/H | 5.5T | 18.3X0.95X5m |
T620 | 4KW+5.5KW | 500KG-800KG/H | 3T | 15.6X0.62X3.3m |
T400 | 4KW+5.5KW | 300KG-500KG/H | 2T | 15.6X0.4X3.3m |
