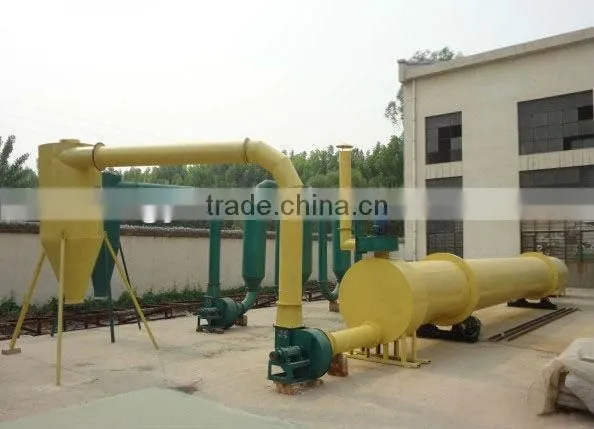

Rotary Sawdust Drum Dryer:
Rotary sawdust drum dryer shows the features of perfect drying effect, easy operation, high efficiency and easy control of drying. It takes advantage of the stability of roller and homogeneity of air. This equipment makes the combination of roller and pipes which increase the drying strength and reduce the manual power. This is the ideal equipment for drying raw materials with high humidity.
Advantages of rotary sawdust drum dryer:
1.Won the national patent
2.Low dust
3.Strong drying strength
4.High efficiency and quality
Introduction of rotary sawdust drum dryer:
Rotary sawdust drum dryer according to the most advanced wood, coal, gas heating mode, reducing the cost of production, won the national patent (number of the patent: 200520031211.8). shows the features of perfect drying effect, easy operation,high efficiency and easy control of drying. it takes advantage of the stability of roller and homogeneity of air. This equipment makes the combination of roller and pipes which increase the drying strength and reduce the manual power. This is the ideal equipment for drying materials with high humidity.
Working Principle of rotary sawdust drum dryer:
Rotary sawdust drum dryer is to dry the wet materials with the humidity of 50% through rotation and extract from the end of the roller. It can reach drying one time.
This device applies to material such as rice shell, saw dust, ground wood chip, tree branch and wood bits, etc (Diameter is less than 3mm; Length, 5mm).
Structure Features of rotary sawdust drum dryer:
1. Adopt rolling drum feeding method. Drying is uniform and the motor power is small.
2. Heat supply is external indirect heating method and avoid raw materials burning in high temperature.
3. Equipped special parts in the tail of rotary sawdust drum dryer, only the material that to reach the drying standard can be drove out by blower, ensuring the drying purpose.
4. This rotary sawdust drum dryer attached dust catcher equipment in discharge hole so as to separate material and moisture, and reduce the dust in workshop at the same time.
Data of rotary sawdust drum dryer:
Type |
Power |
Capacity |
Weight |
Dimension |
TL-T950 |
7.5KW+7.5KW |
1200KG-1500KG/H |
5.5T |
18.3X0.95X5m |
TL-T620 |
4KW+5.5KW |
500KG-800KG/H |
3T |
15.6X0.62X3.3m |
TL-T400 |
4KW+5.5KW |
300KG-500KG/H |
2T |
15.6X0.4X3.3m |
