Help CenterDiesel Engine Single Cylinder L Series
Related Products

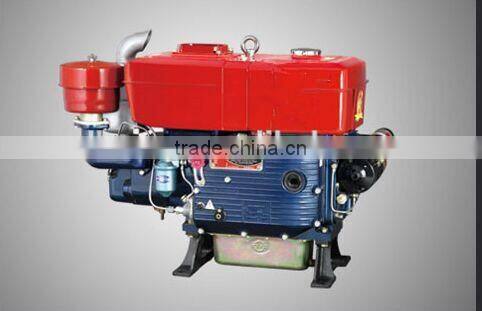

diesel engine single cylinder L series
The scope of application of L series
Widely used in all kinds of tractors, transport machinery, irrigation machinery, construction machinery, generators, small engineering machinery and other fields
The technical characteristics of L series
1. Long stroke, power, torque, strong power
2. Double gear oil lubrication, full lubrication, reliable working
The main technical parameters of L series diesel engine
| model | Engine type | Combustion chamber type | Bore (mm) | stroke (mm) | output volume (L) | Rated power (kw/r/min) | Maximum torque (N.m) | Maximum torque speed (r/min) | Calibration of light fuel consumption(g/kw.h) | Idle(r/min ) | Compression ratio | Start mode | Net weight(kg) | Size(mm | |
| L12 | single cylinder, 4 stroke water evaporation | Direct injection | 90 | 95 | 0.604 | 8.8/2400 | ≥39.2 | ≤1920 | ≤250 |
|
19 | hand start or Electric starting | 96 | 655×381×570 | |
| L16 | 95 | 120 |
|
11.5/2200 | ≥55.9 | ≤1760 |
|
17 | 145 | 836×410×664 | |||||
| L18 | 100 | 0.942 | 12.7/2200 | ≥61.7 | 145 | 836×410×664 | |||||||||
| L20 | 105 | 1.039 | 14.0/2200 | ≥68.1 | 150 | ||||||||||
| L22 | 110 | 1.1403 | 15.5/2200 | ≥75.4 | 180 | 858×450×699 | |||||||||
| L24 | 115 | 1.246 | 17.0/2200 | ≥82.6 | 185 | ||||||||||
| L26 | 120 | 1.357 | 18.5/2200 | ≥89.9 | 205 | 916×475×709 | |||||||||
| L28 | 125 | 1.473 | 20.0/2200 |
|
208 | ||||||||||
| L30/CC160 | |||||||||||||||
| L32 | 130 | 125 |
|
23.0/2200 | ≥111.8 | 16.5 | 212 | ||||||||
| L40/HS400 | 135 | 145 | 2.076 | 27/2200 | ≥131.2 | ≤240 | 265 | 1085×540×805 |

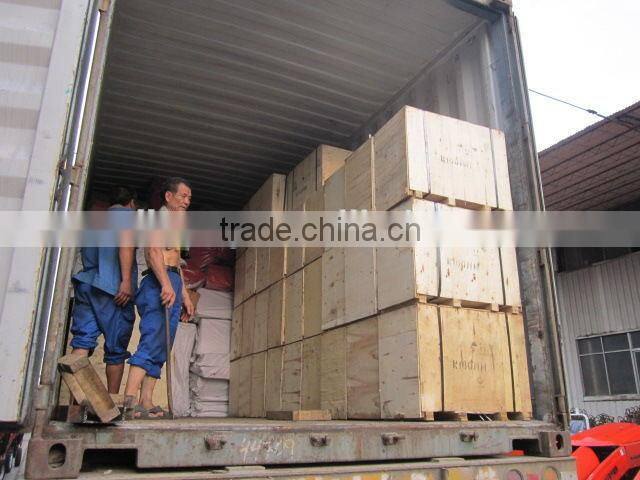

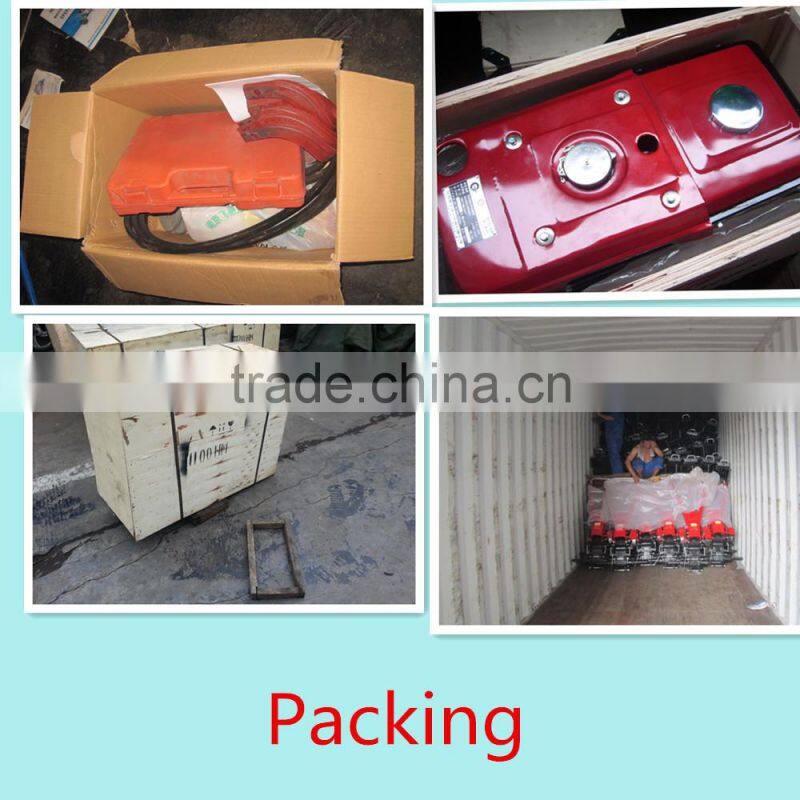

Packing&Shipping
plywood box
Within 15 days
OUR ADVANTAGE:
1. Professional supply with certification: CCC, ISO and so on
2. Perfect quality program. 100% test before delivery for every engine.
3. One year guarantee.
4. OEM service.
5. Creative design team and first class quality equipments.
6. Design and Producing be customized.
FAQ
1.Where is the factory ?
We are in Shandong Province,China.
Welcome to visit factory !
2. How many years your company ?
We spcilized in Machinery parts 12 years experience ,now we have more than 1000 workers and more than 40 toppest techinical engineers.
3. How about your price in the similar suppliers ?
Price is our big advantage ! Let 's enlarge big market together !
4.If you have warranty about the quality ?
Of course,we have it .
Our credit guarantee service system can vouch for you
5. What about the payment ?
T/T ,L/C,D/P, Western Union
