Home > Products > Diesel Engine > single cylinder diesel engine
single cylinder diesel engine
- 500 Unit / Units per Month
- QINGDAO
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Usage | Automobile | |
| Fuel | Diesel | Stroke | 4 Stroke | |
| Cylinder | Single Cylinder | Cold Style | Other, Water-cooled | |
| Start | Other, hand cranking | Place of Origin | Shandong, China | |
| Brand Name | BOTA | Model Number | R175/185/190/192/195/196/1100/1105/1110/1115/25/28/32 | |
| Dimension(L*W*H) | 620*380*580MM | Weight | 68KGS-215KGS | |
| Certification | ISO9001,CCC | Warranty | 1YEAR | |
| After-sales Service Provided | No overseas service provided |
plywood box
Product Description

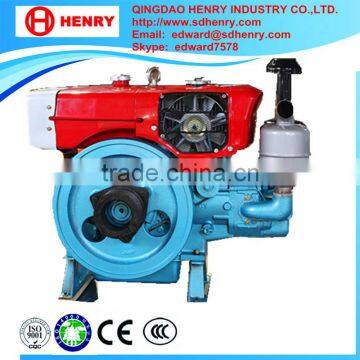

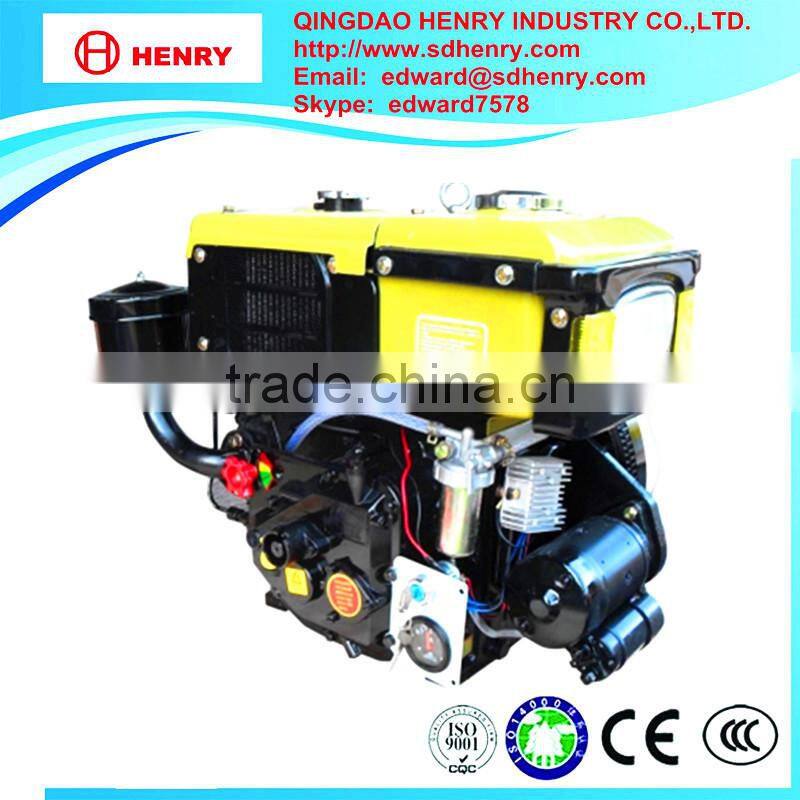

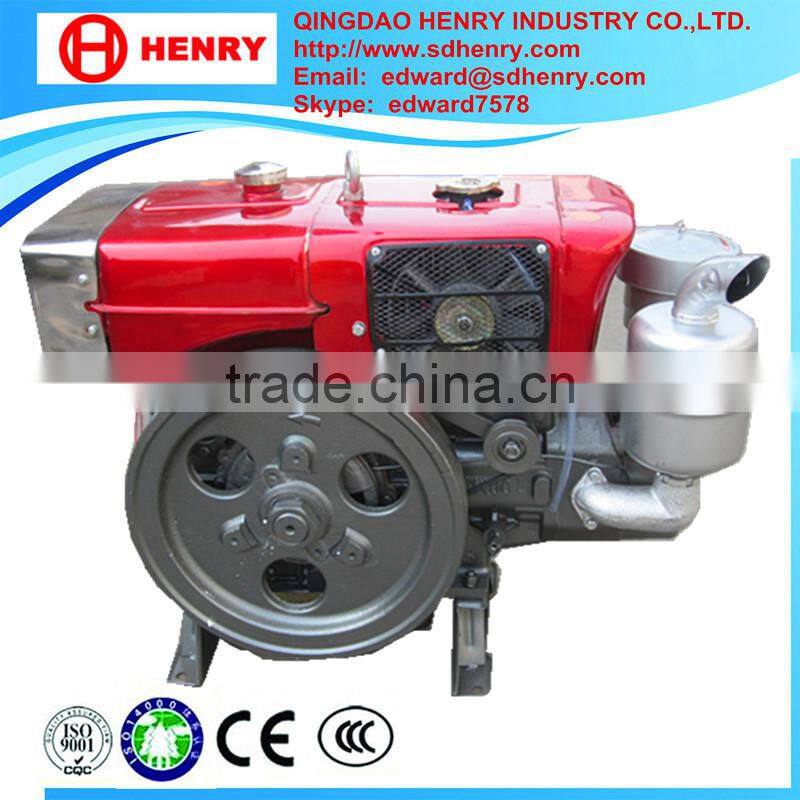

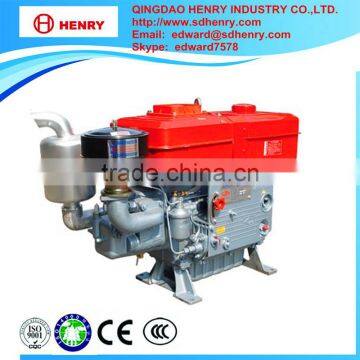

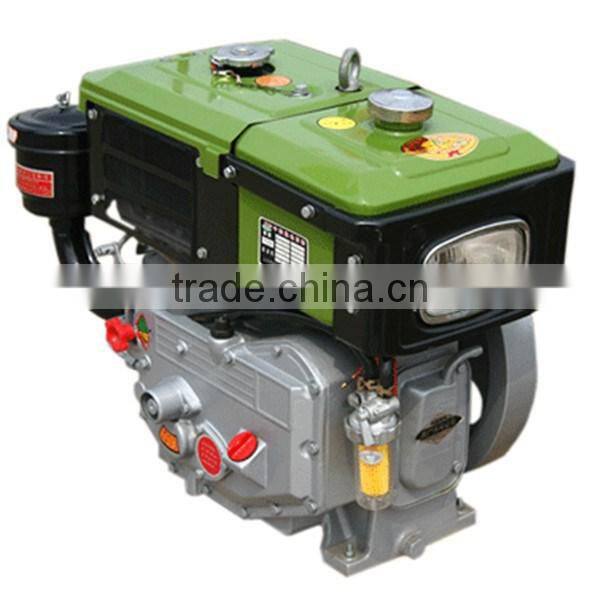

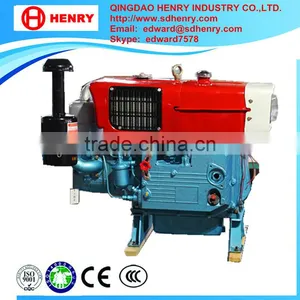

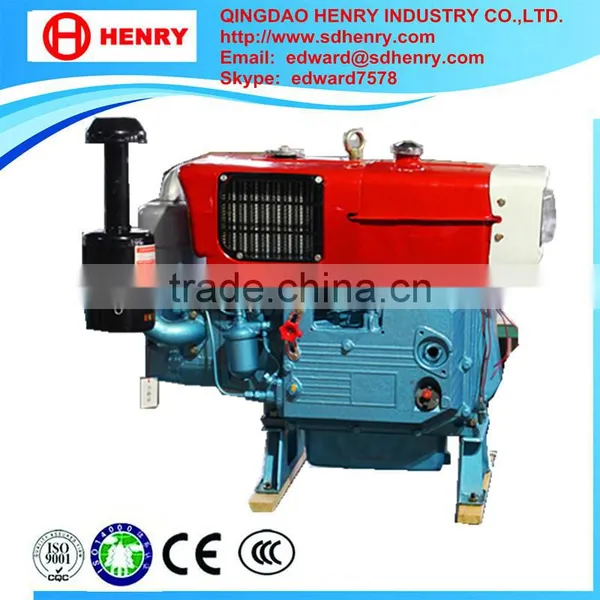

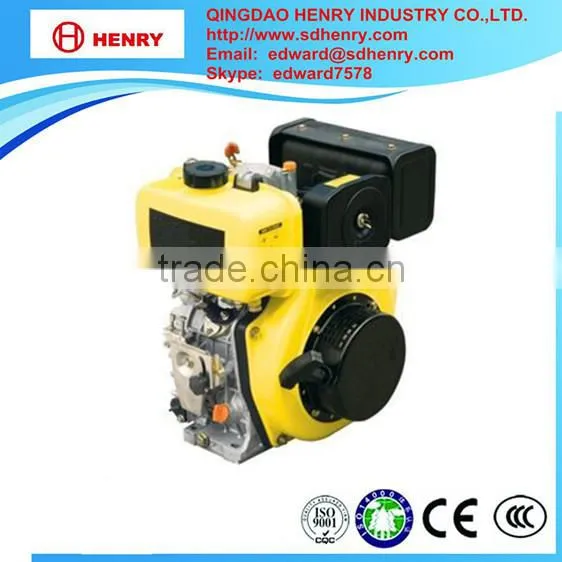

single cylinder diesel engine
It is a popular matched Engines at present ,windly use in different farm fiels.
Main application Small general sets ,air-compressor, inland ships , engineering machinery and processing machines for agricultural products and sideline products (eg. Thresher, rice mill , flour milling machine , fodder grinder)
MODEL 175-190 (6-10HP)
Model | R175A | R180 | R185 | R190 |
TYPE | Single cylinder, horizontal , 4 stroke ,water cooling. | |||
Combustion system | Precombustion chamber | Swirl combustion chamber | ||
Bore x stroke(mm) | 75 x 80 | 80 x 80 | 85 x 85 | 90 x 90 |
Total Displacement(L) | 0.353 | 0.402 | 0.510 | 0.573 |
Rated Output(kw/rpm) | 4.41 | 5.15 | 5.88 | 7.0 |
Max. Output(kw/rpm) | 4.85 | 5.67 | 6.46 | 7.92 |
Rated speed(r/min) | 2200 | 2200 | 2300 | 2300 |
Specific Fuel(g/kw.h) | Less than or equal to 280.2 | Less than or equal to 278.80 | Less than or equal to 275 | Less than or equal to 275 |
Cooling system consumption | Evaporative | Evaporative | Evaporative | Evaporative |
Lubrication method | Pressure/splash | Pressure/splash | Pressure/splash | Pressure /splash |
Starting method | Hand cranking electric cranking | Hand cranking Electric cranking | Hand cranking Electric cranking | Hand cranking Electric cranking |
Net weight (kg) | 68 | 72 | 95 | 95 |
Overall dimension | 435*245*332mm | 625*341*460mm | 740*400*560mm | 670*400*560mm |
MODEL 192-196(11-13.5HP)
Model | R192 | R195 | R196 |
TYPE | Single cylinder , horizontal ,4 stroke ,water cooling. | ||
Combustion system | Swirl combustion chamber | Swirl combustion chamber | |
Bore x stroke(mm) | 92 x 95 | 95 x 95 | 96x96 |
Total Displacement(L) | 0.598 | 0.67 | 0.723 |
Rated Output(kw/rpm) | 7.7 | 8.8 | 9.02 |
Max.Output(kw/rpm) | 8.47 | 9.68 | 9.92 |
Rated speed(r/min) | 2200 | 2200 | 2300 |
Specific Fuel(g/kw.h) | Less than or equal to 266.60 | Less than or equal to 258.40 | Less than or equal to 258.4 |
Coolingsystem comsumtion | Evaporative | Evaporative | Evaporative |
Lubrication method | Pressure/splash | Pressure/splash | Pressure/splash |
Starting method | Hand cranking electric cranking | Hand cranking Electric cranking | Hand cranking Electric cranking |
Net weight (kg) | 95 | 107/109 | 110 |
Overall dimension | 670*400*560mm | 710*400*570mm | 710*400*570mm |
MODEL 195- 1115(12-20HP)
Model | ZS195 | ZS1100 | ZS1105 | ZS1110 | ZS1115 | ||||
TYPE | Single cylinder, horizontal , 4 stroke ,water cooling. | ||||||||
Combustion system | Direct Injection | ||||||||
Bore x stroke(mm) | 95 x 115 | 100 x 115 | 105 x 115 | 110 x 115 | 115 x 115 | ||||
Total Displacement(L) | 0.815 | 0.903 | 0.996 | 1.093 | 1.194 | ||||
Rated Output(kw/rpm) | 8.82 | 11.03 | 12.1 | 13.24 | 14.7 | ||||
Max.Output(kw/rpm) | 9.7 | 12.13 | 13.31 | 14.56 | 16.17 | ||||
Rated speed(r/min) | 2000 | 2200 | 2200 | 2200 | 2200 | ||||
Specific Fuel(g/kw.h) | Less than or equal to 244.8 | Less than or equal to 246.2 | Less than or equal 246.2 | Less than or equal to 244.8 | Less than or equal to 244.8 | ||||
Coolingsystem comsumtion | Evaporative | Evaporative | Evaporative | Evaporative | Evaporative | ||||
Lubrication method | Pressure/splash | Pressure/splash | Pressure/splash | Pressure /splash | Pressure/splash | ||||
Starting method | Hand cranking electric cranking | Hand cranking Electric cranking | Hand cranking Electric cranking | Hand cranking Electric cranking | Hand cranking Electric cranking | ||||
Net weight (kg) | 148 | 153 | 155 | 180 | 183 | ||||
MODEL 25-32HP
Model | CML25 | CML28 | CML32 |
TYPE | Single cylinder , horizontal ,4 stroke ,water cooling. | ||
Combustion system | Direct Injection | ||
Bore x stroke(mm) | 115 x 120 | 125 x 120 | 130 x125 |
Total Displacement(L) | 1.25 | 1.51 | 1.61 |
Rated Output(kw/rpm) | 16 | 19.5 | 21 |
Max.Output(kw/rpm) | 17.60 | 21.45 | 23.1 |
Rated speed(r/min) | 2200 | 2200 | 2200 |
Specific Fuel(g/kw.h) | Less than or equal to 244.80 | Less than or equal to 244.80 | Less than or equal to 244.80 |
Coolingsystem comsumtion | Evaporative | Evaporative | Evaporative |
Lubrication method | Pressure/splash | Pressure/splash | Pressure/splash |
Starting method | Hand cranking electric cranking | Hand cranking Electric cranking | Hand cranking Electric cranking |
Net weight (kg) | 185 | 210 | 215 |
Main Feature
1.Single cylinder diesel engine power from 4.41kw(6hp) – 23.10kw(32hp) The main model :165/170/175/180/185/190/192/195/196 /197/1100/1105/1110/1115 /25/28/32
2.Diesel engine ,compact ,agile ,light ,reliable, convenient , Excellent quality
dly use in the mini-tractor , transportation vehicle ,Small general sets ,air-compressor, inland river ships , engineering machinery and processing machines for agricultural products and sideline products (eg. Thresher, rice mill , flour milling machine , fodder grinder) and so on.
4.Equipped with lighting equipment, traveling at night ,with walking tractor can do short transportation.
5.with quickly coupling ,easy to change farming implements
6.The colors can optional as request after the quantity more than 100sets
7.Every year sell more than 150000sets ,the products are welcome by the market in china and oversea market.
FACTORY
WHY CHOOSE US
1. Professional supply with certification: CCC, ISO and so on
2. Perfect quality program. 100% test before delivery for every engine.
3. One year guarantee.
4. OEM service.
5. Creative design team and first class quality equipments.
6. Design and Producing be customized.
7. Flexible payment. T/T L/C D/P,WESTERN UNION be accept.
ANY REQUEST ,PLS SEND ME EMAIL
Company Profile
Qingdao Henry Industry Co.,Ltd., is one of the leading manufacturer in Shandong china for agricultural work products and industry protect products. its total assets of RMB 1 billion , employee over 1500. The farm machinery main including : Single cylinder diesel engine, two wheel tractor ,mini tillers(diesel engine and gasoline engine), four wheel tractor,rice planter and harvester machinery, and kinds of farm Acessories and so on. Tire products are including agriculture tire ,industrial tire ,implement tire ,skid steer tire rubber wheel and motorcycle tire . Kinds of Gloves,especially for RESISTANT GLOVES . In the period of development, the company is keeping on improving the internal management on the basis of market criteria, and implementing technical creation. It has completely passed the international quality system certificates, including ISO9001, QS9000, DOT & CE in compliance with American &European automobile industry standard, The products are permitted to enter international markets. exported to 70 countries & area, incl. U.S.A market and European market ,South-east Asia, Middle east, Central & South America, African, etc. We can supply large and regular products ,and also can supply many kinds and small amount products for at home and abroad friends. The quality and credit are our develop basis . HENRY GREEN MACHINERY ,HENRY GREE POWER FOR HAPPY LIFE. HIGH-QUALITY PURSUE EXCELLENT SERVICE FIRST-CLASS BRAND .
