15hp Engine

15hp Engine thumbnail-1
15hp Engine thumbnail-2
15hp Engine photo-1
15hp Engine photo-2
US$ 170 - 480 MOQ: 10 Units
Key Specifications
Get Latest Price
Condition:
New
Usage:
Automobile
Fuel:
Diesel
Contact Supplier Request Quote Chat Now
Qingdao Henry Industry Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Usage Automobile
Fuel Diesel
Stroke 4 Stroke
Cylinder Single Cylinder
Cold Style Other, Water-cooled
Start Other, hand cranking
Place of Origin Shandong, China
Brand Name BOTA
Model Number 1100/1105/1110/1115/25/28/32
Dimension(L*W*H) 620*380*580MM
Weight 68KGS-215KGS
Certification ISO9001,CCC
Warranty 1YEAR
After-sales Service Provided No overseas service provided

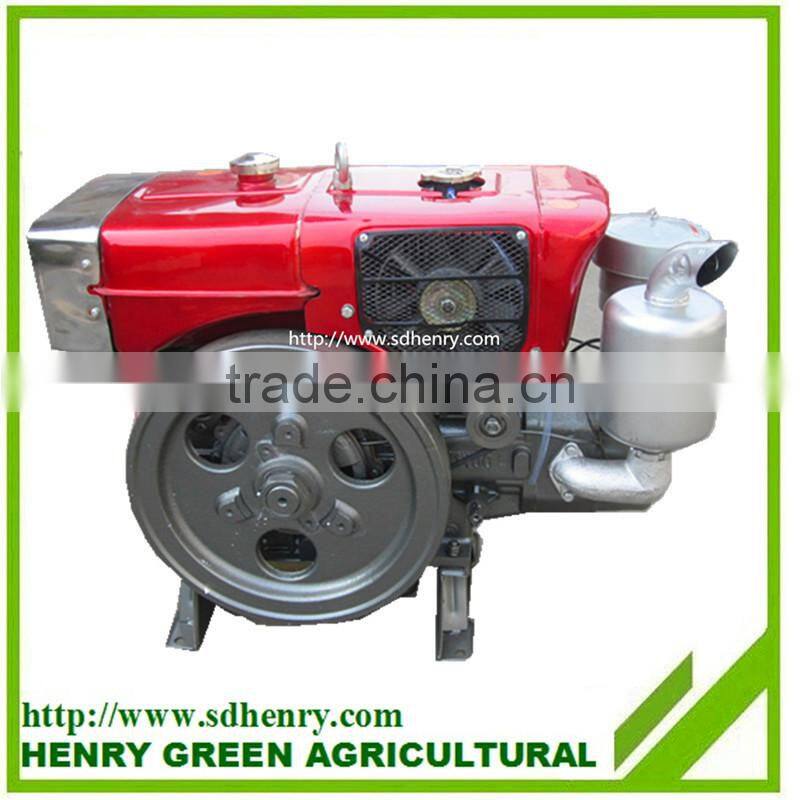

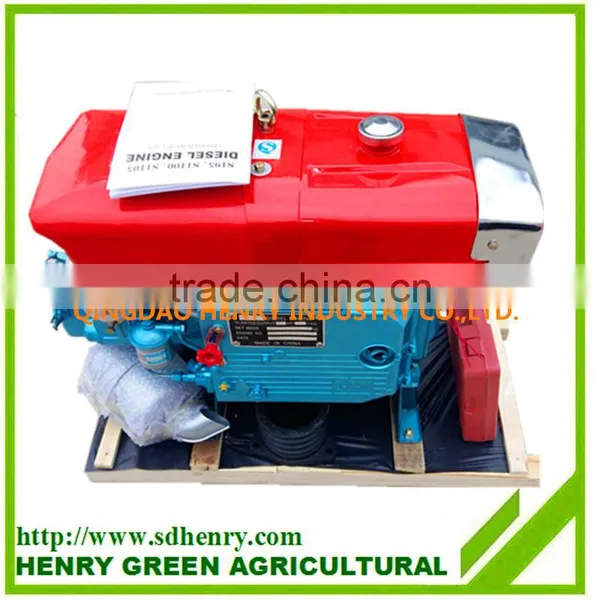

    single cylinder 15hp engine

It is a popular matched Engines at present ,windly use in different farm fiels.



Main application Small general sets ,air-compressor, inland ships , engineering machinery and processing machines for agricultural products and sideline products (eg. Thresher, rice mill , flour milling machine , fodder grinder)





MODEL 195- 1115(12-20HP)



Model

ZS195

ZS1100

ZS1105

ZS1110

ZS1115

TYPE

Single cylinder, horizontal , 4 stroke ,water cooling.

Combustion system

Direct Injection

Bore x stroke(mm)

95 x 115

100 x 115

105 x 115

110 x 115

115 x 115

Total Displacement(L)

0.815

0.903

0.996

1.093

1.194

Rated Output(kw/rpm)

8.82

11.03

12.1

13.24

14.7

Max.Output(kw/rpm)

9.7

12.13

13.31

14.56

16.17

Rated speed(r/min)

2000

2200

2200

2200

2200

Specific Fuel(g/kw.h)

Less than or equal to 244.8

Less than or equal to 246.2

Less than or equal 246.2

Less than or equal to 244.8

Less than or equal to 244.8

Coolingsystem comsumtion

Evaporative

Evaporative

Evaporative

Evaporative

Evaporative

Lubrication method

Pressure/splash

Pressure/splash

Pressure/splash

Pressure /splash

Pressure/splash

Starting method

Hand cranking

electric cranking

Hand cranking

Electric cranking

Hand cranking

Electric cranking

Hand cranking

Electric cranking

Hand cranking

Electric cranking

Net weight (kg)

148

153

155

180

183




MODEL 25-32HP



Model

CML25

CML28

CML32

TYPE

Single cylinder , horizontal ,4 stroke ,water cooling.

Combustion system

   Direct Injection

Bore x stroke(mm)

115 x 120

125 x 120

130 x125

Total Displacement(L)

1.25

1.51

1.61

Rated Output(kw/rpm)

16

19.5

21

Max.Output(kw/rpm)

17.60

21.45

23.1

Rated speed(r/min)

2200

2200

2200

Specific Fuel(g/kw.h)

Less than or equal to 244.80

Less than or equal to 244.80

Less than or equal to 244.80

Coolingsystem comsumtion

Evaporative

Evaporative

Evaporative

Lubrication method

Pressure/splash

Pressure/splash

Pressure/splash

Starting method

Hand cranking

electric cranking

Hand cranking

Electric cranking

Hand cranking

Electric cranking

Net weight (kg)

185

210

215



 15hp engine







Main Feature

1.Single cylinder diesel engine power from 4.41kw(6hp) – 23.10kw(32hp) The main model :165/170/175/180/185/190/192/195/196 /197/1100/1105/1110/1115 /25/28/32

2.Diesel engine ,compact ,agile ,light ,reliable, convenient , Excellent quality

dly use in the mini-tractor , transportation vehicle ,Small general sets ,air-compressor, inland river ships , engineering machinery and processing machines for agricultural products and sideline products (eg. Thresher, rice mill , flour milling machine , fodder grinder) and so on.

4.Equipped with lighting equipment, traveling at night ,with walking tractor can do short transportation.

5.with quickly coupling ,easy to change farming implements

6.The colors can optional as request after the quantity more than 100sets

7.Every year sell more than 150000sets ,the products are welcome by the market in china and oversea market.

FACTORY

15hp engine15hp engine



 WHY CHOOSE US



   1. Professional supply with certification: CCC, ISO and so on

   2. Perfect quality program.  100% test before delivery for every engine.

   3. One year guarantee.

   4. OEM service.

   5. Creative design team and first class quality equipments.

   6. Design and Producing be customized.

   7. Flexible payment. T/T  L/C D/P,WESTERN UNION be accept.

ANY REQUEST ,PLS SEND ME EMAIL
