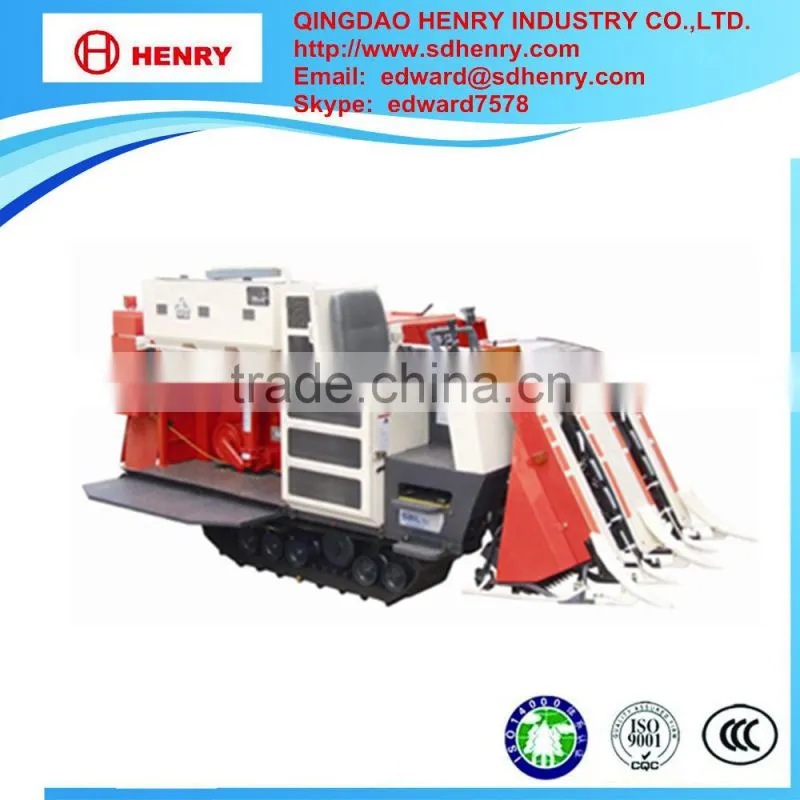

4LZ-1480 Combine Harvester
Product characteristics
Power Strong
1. Choice of vertical in-line four-stroke water-cooled diesel engine with a powerful 60-hp power, to ensure continued stability and more efficient harvesting and harvesting operations.
2.HST hydraulic CVT system is reliable
3. Using HST hydraulic continuously variable way, variable speed range, fast response, work to improve the reliability of the system
off the net rate, the loss rate is low
Use of a longer threshing cylinder and multiple screening methods to achieve high-precision screening, to reduce grain losses.
simple, comfortable, fast
The operation convenient handle, position, a good driver seat, minimizing the operational strength to ensure a smooth operation.
easy maintenance
Major components, such as the threshing cylinder, filter box, engine room, threshing filters, grass cutting device can be quickly opened, saving maintenance time and increases the operating time of harvest.
Technical parameters
| Model | 4LBZ-1480 | ||
| Size | (L×W×H (mm) | 4540×1780×2270 | |
| weight(kg) | 2250 | ||
| Engine | type | DB33 | |
| Rotated power | 44 kw(60ps)/2700 rpm | ||
| Starting method | Electric System | ||
| No. of fuel | 0# diesel oil | ||
| Crawler center distance(mm) | 1000 | ||
| Ground pressure(MPa) | ≤0.024 | ||
| Method of gear change | hydraulic infinite variable speed | ||
| Working speed(m/s) | forewords0-1.75 backwards0-0.89 | ||
| Reaper | Reaper width(mm) | 1480 | |
| Number of Reaping lines | 4 | ||
| Reaping height(mm) | 35-150 | ||
| Overall Length of Crop To Be Reaped(mm) | 650-1400 | ||
| Lifting of Reel | hydraulic | ||
| Adaptability to Inclination | 85or Less For Toward Reaping.70 Less For Reverse Reaping | ||
| Thresher Tooth | Diameter × length(mm) | Φ424×1020 | |
| Cylinder Speed(rpm) | 580 | ||
| Separating Method | Wind System,shake | ||
| Discharge | Discharge method | filler | |
| Number of output | 3 | ||
| Grain Tank | 200L(4 bags) | ||
| Working capacity( chinese acer /hour) | 4-8 | ||
