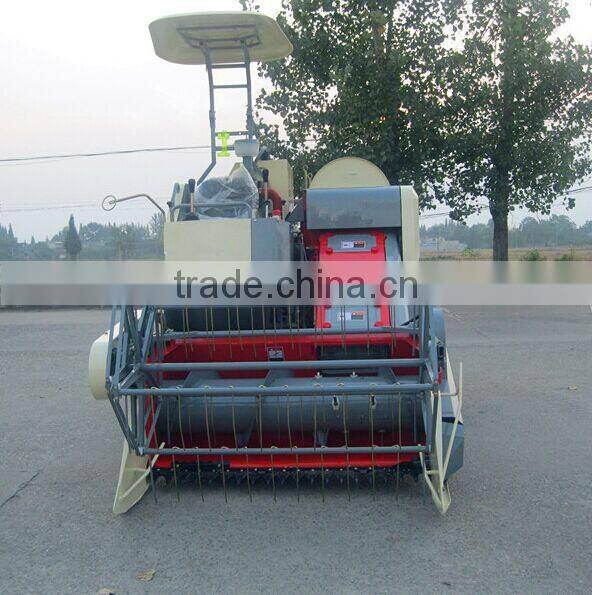

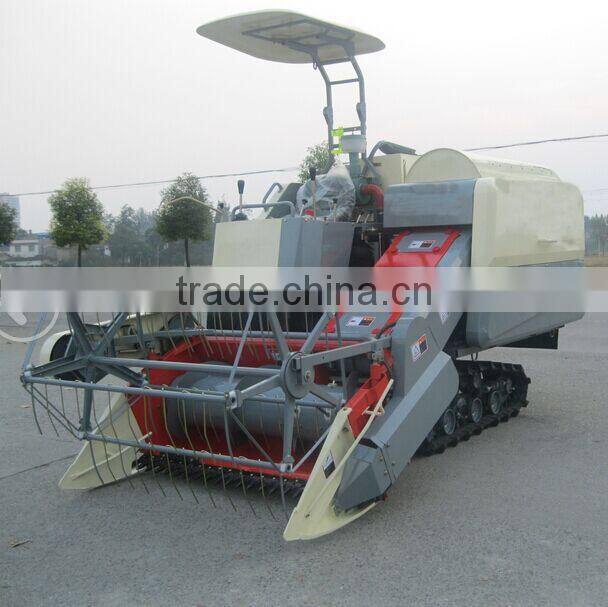

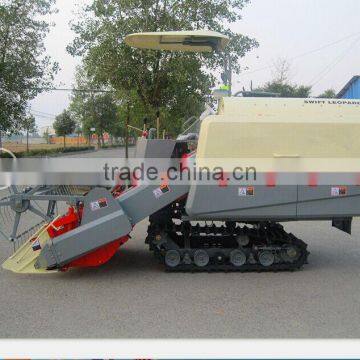

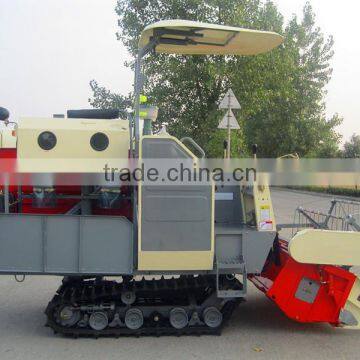

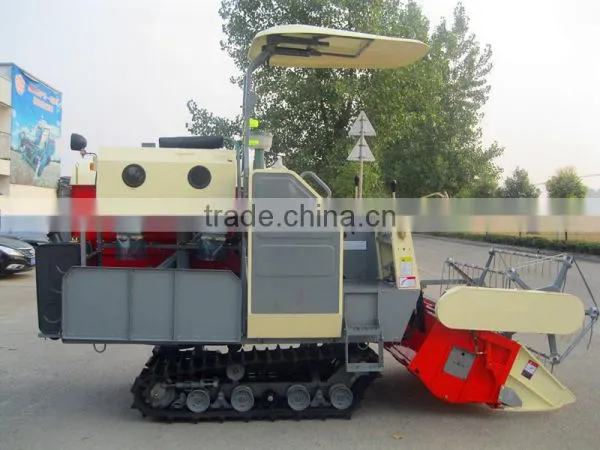

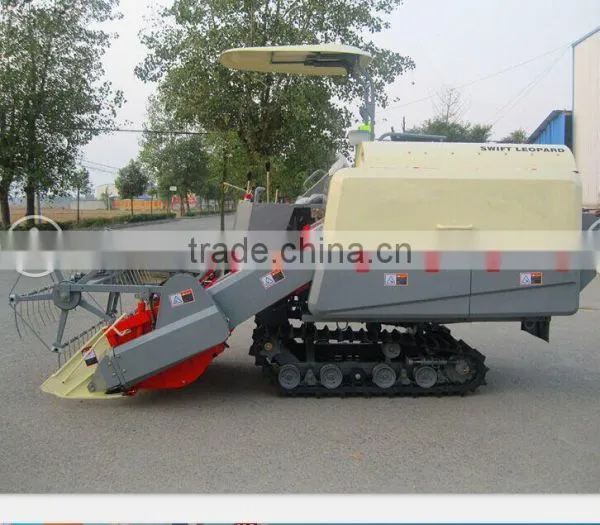

Rice Commbin Harvester

Rice Commbin Harvester photo-1
Rice Commbin Harvester photo-2
Rice Commbin Harvester photo-3
Rice Commbin Harvester photo-4
US$ 4,700 - 10,020 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Rice
Type:
Combine Harvester
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Rice
Type Combine Harvester
Drive Type Gear Drive
Usage Other, rice commbin harvester
Place of Origin Shandong, China
Brand Name BOTA
Model Number HR-4LZ-2.0D
Dimension(L*W*H) 5600*2400*2600mm
Weight 2700~3250kg
Certificate Other, CE ISO9001 EEC
Warranty 2 Years
After-sales Service Provided Overseas third-party support available

rice commbin harvester



1.With the help of SynchroShuttle system located under the steering for ease of operation, the machine can be switched between forward and reverse without stopping. These features make gear shifting easier, smooth operation and powerful agility.


2. The tractor has a great balance between weight, ground clearance and horse power which help you to work in any puddle or cross ridges.


3.With 8 forward, 8 reverse speeds and the proper set speed for each gear, its speed can be chosen to suit with various implements.


4.Two selectable PTO gear speeds; 540 and 750 rpm*, allow you to choose the right speed to suit various working conditions, including soil pulverization by rotary and atomized spraying by boom sprayer.



Specifications



Model

HR-4LZ-2.0

Dimension (L*W*H) mm

5600*2400*2600mm

Weight (kg)

2800KG

Working efficiency (ha./h)

0.26~0.54

Cuting width (mm)

1800 or 2000 or 2200

Feeding(t/h)

7.2

Engine

Type

Water cool, four stroke, diesel engine

Model

498BT

Displacement (L)

3.16

Output/rpm (hp/rpm)

61

Fuel tank capacity (L)

60

Traveling system

Crawler specification

(width*pitch*No.of tooth)

350mm*90mm*46 OR 400mm*90mm*46

Ground pressure (kpa)

21

Ground clearance

260mm

Transmission

4 forward, 2 reverse OR HST

Working parts

Threshing cylinder

Type

Axial flow, spike tooth

Diameter& length

550mm*1285mm

Cleaning

Chaffer sieve + fan( front blowing and rear suction) + two times vibrate

Working speed (m/s)

0.5~1.2

Blade cutting space(mm)

76.2

Screw conveyer typer

Extendible transverse conveyer

Screw conveyer outside diameter(mm)

490

Grain tank capacity (cubic meter)

0.85

Wet field passing

15cm

Grain unloading method

Sacks OR auto unloading auger

Total loss (%)

Rice≤3, Wheat≤1.2

Breakage rate (%)

Rice≤1.5, Wheat≤1

Impurity rate (%)

Rice≤2, Wheat≤2

Use reliability(%)

≥93

Packing Method

Nude pac







rice commbin harvesterrice commbin harvesterrice commbin harvesterrice commbin harvester



We have all kinds of model ,and your  special order we can meet.
